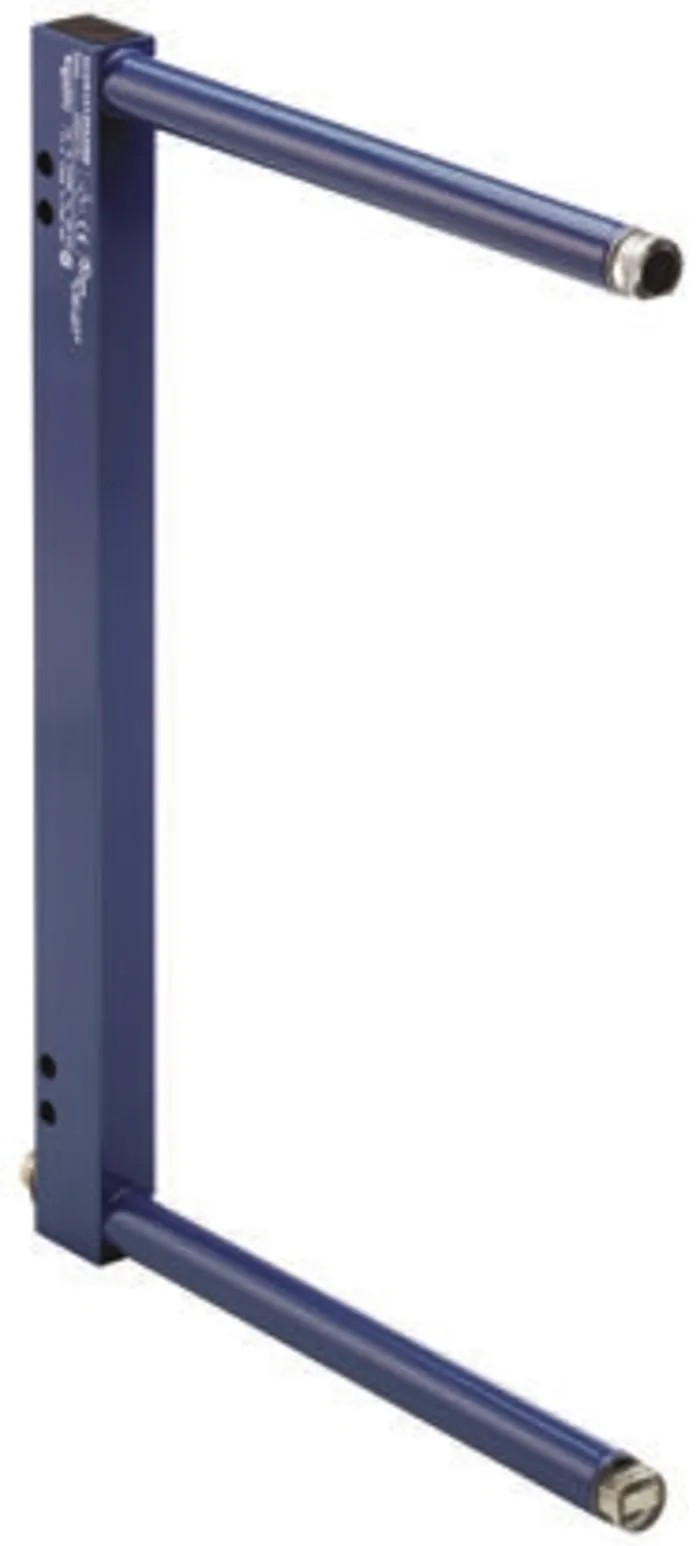

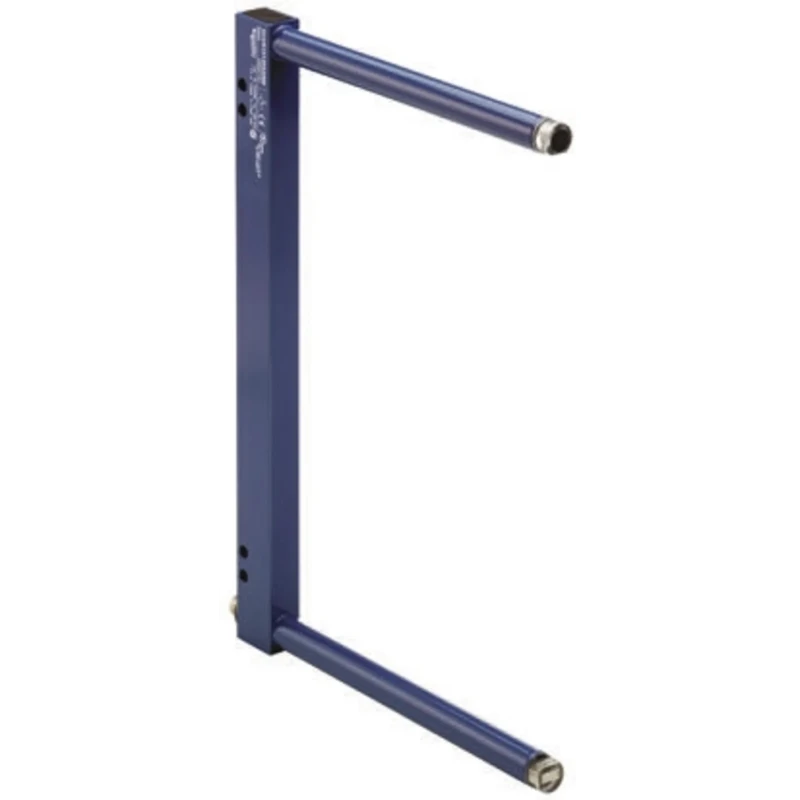

Telemecanique Sensors Through Beam Photoelectric Fork Sensor, 180 mm Detection Range, PNP Output, IP65/IP67 XUVR1218PANM8
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Light Source | LED |
| Detection range | 180 mm |
| Model | XUVR1218PANM8 |
| IP Rating | IP65, IP67 |
| Housing Material | Polyamide |
| Output type | PNP |
| Series | XUV |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 3-Pin M8 |
| Maximum dc Voltage | 24V dc |
| Sensor Style | Fork |
Key Features
- The fork style sensor enables detection of small parts and marks on transparent materials.
- Features a detection range of 180 mm with a visible red LED light beam for easy setup.
- Equipped with a robust polyamide housing rated IP65 and IP67 for high protection against dust and water.
- PNP output type compatible with 3-pin M8 terminal connections.
- Operates reliably between -10°C and 60°C with a maximum current of 100mA.
- Ideal for use in packaging, conveyor systems, and labeling machines.
- Constructed with a durable painted aluminium frame for enhanced longevity.
- Includes LED output indication for status monitoring.
Product Description
Telemecanique Sensors XUVR1218PANM8 is a through beam photoelectric fork sensor featuring a 180 mm detection range and PNP output type. It is engineered for reliable, high-precision detection of small parts, labels, and transparent materials in industrial automation environments.
The sensor’s fork-style design simplifies the detection of positions and passage of materials, offering a cost-effective alternative to fiber optics and ultra-miniature through-beam solutions. Its robust painted aluminium casing ensures durability and longevity under continuous operational conditions.
The visible red LED light beam facilitates straightforward alignment and setup. With an IP65 and IP67 rating, the polyamide housing protects against dust ingress and water exposure, making it suitable for harsh industrial environments such as packaging machines, conveyors, and labeling equipment.
The sensor supports a 3-pin M8 threaded output connection (lead not included) and offers LED output indication for easy status verification. It operates efficiently in temperature ranges from -10°C to 60°C and supports a maximum DC voltage of 24V with current up to 100mA.
Its detection capability extends to objects as small as 0.6 mm, ensuring high accuracy in industrial sensing applications. This sensor is manufactured in France and conforms to CE, UL, and CSA standards, ensuring quality and reliability in automation and control tasks.
The fork style sensor enables detection of small parts and marks on transparent materials. Features a 180 mm detection range with a visible red LED beam for setup. Durable polyamide housing rated IP65 and IP67 for environmental protection.
PNP output with 3-pin M8 terminal interface. Operating temperature from -10°C to 60°C with max current 100mA. Robust painted aluminium casing enhances overall durability. LED output indication provides visual status. Detects objects as small as 0.6 mm with high accuracy.
Ideal for packaging, conveyor, and labeling machine applications.
Telemecanique Sensors offers reliable industrial Photoelectric Sensor solutions trusted in automation, manufacturing, packaging, and laboratory equipment applications. Explore more sensors at EnvMart to find the best fit for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of the Telemecanique Sensors XUVR1218PANM8 is 180 mm.
This model features a PNP output type.
The housing of this sensor is rated IP65 and IP67, providing protection against dust and water.
It operates efficiently within a temperature range of -10°C to 60°C.
The maximum current supported by this sensor is 100 mA.
It uses a 3-pin M8 terminal connection for output.
The sensor features a polyamide housing and a painted aluminium frame for durability.
This sensor can detect objects as small as 0.6 mm.
It is ideal for use in packaging machines, conveyor systems, and labeling equipment.
The LED output indication provides visual status monitoring for the sensor.
This sensor is manufactured in France.
The light source of this sensor is an LED, which aids in setup and alignment.
