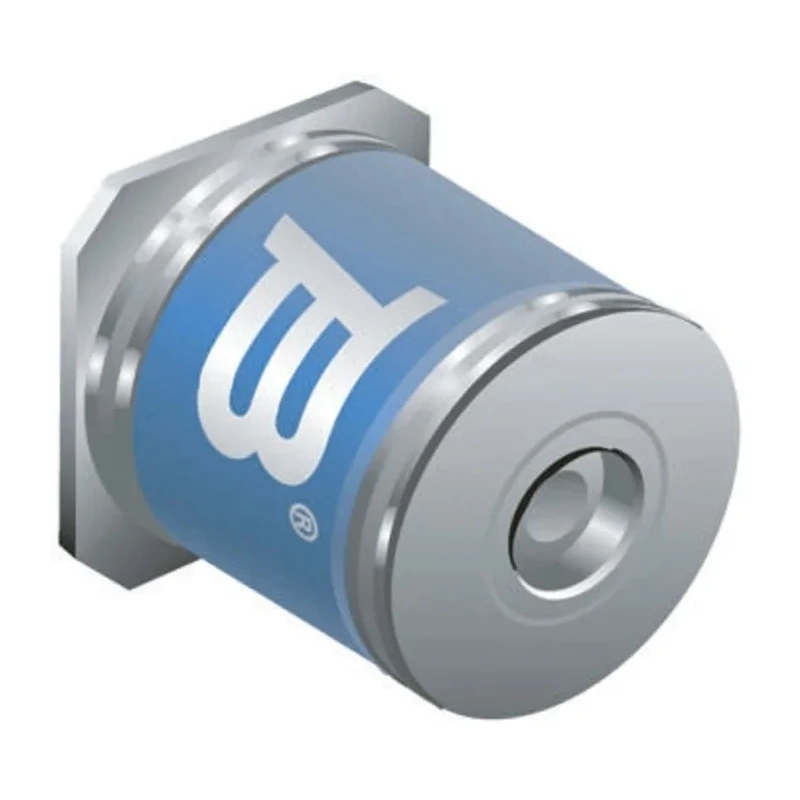

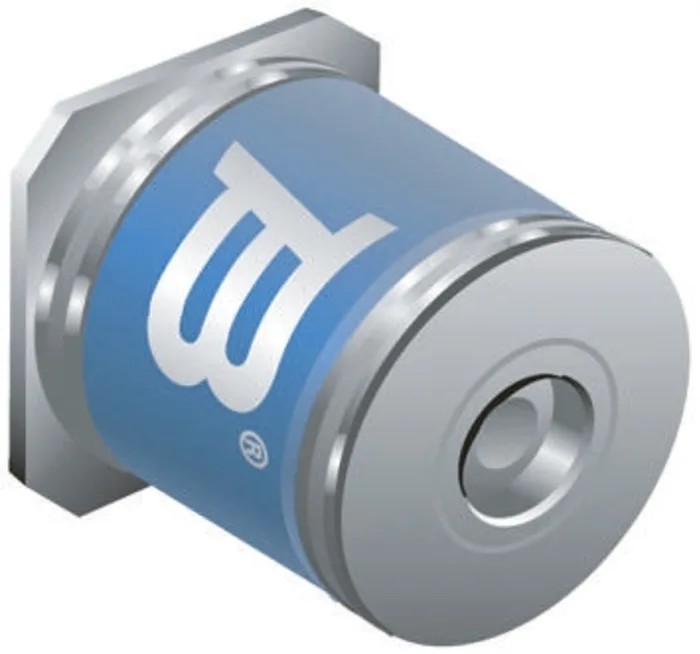

Bourns Surface Mount 2 Electrode Gas Discharge Tube 90 V DC, 5 kA Maximum Surge Current, Model 2035-09-SM-RPLF
Specifications
| Country of Origin | Costa Rica |
|---|---|
| Brand | Bourns |
| Height | 5mm |
| Length | 4.4mm |
| Model | 2035-09-SM-RPLF |
| Depth | 5mm |
| Mount Type | Surface |
| Series | 2035 |
| Maximum Operating Temperature | 85°C |
| Capacitance | 1pF |
| Minimum Operating Temperature | -55°C |
| Suppressor Type | 2 Electrode Gas Discharge Tube |
| Maximum Voltage | 90V |
| Standards/Approvals | UL, RoHS |
| Lead Pitch | 3.9mm |
| Maximum Surge Current | 5kA |
| DC Spark Over Voltage | 90V dc |
| Impulse Spark Over Voltage | 525V |
| DC Holdover Voltage | 52V dc |
Key Features
- Maximum surge current rating of 5 kA ensures robust transient voltage suppression.
- Operates at a DC spark over voltage of 90 V for controlled discharge.
- Compact surface mount design with dimensions 5 mm height, 5 mm depth, and 4.4 mm length.
- Wide operating temperature range from -55°C to 85°C for reliable performance.
- Lead pitch of 3.9 mm enables precise PCB mounting.
- Low capacitance of 1 pF reduces signal interference in critical circuits.
- Compliant with UL and RoHS standards ensuring safety and environmental compliance.
- Ideal for applications in telecommunications, industrial automation, automotive electronics, and aircraft systems.
Product Description
Bourns 2035-09-SM-RPLF is a 2 Electrode Gas Discharge Tube designed for efficient surge protection with a maximum surge current rating of 5 kA and a DC spark over voltage of 90 V. Its compact surface mount configuration features a lead pitch of 3.9 mm and physical dimensions of 5 mm height, 5 mm depth, and 4.4 mm length, enabling integration into high-density electronic designs.
This gas discharge tube operates reliably in a wide temperature range from -55°C to 85°C, making it suitable for industrial, telecommunications, automotive, and aircraft electronics applications requiring high transient voltage suppression and stable breakdown characteristics.
Featuring a low capacitance of 1 pF, this component minimizes signal distortion and insertion loss, which is critical for sensitive electronics. The product complies with UL recognition and RoHS directives, ensuring quality and environmental responsibility.
Maximum surge current rating of 5 kA for transient voltage control. DC spark over voltage of 90 V supports effective protection against voltage spikes. Surface mount construction with 3.9 mm lead pitch for PCB integration.
Compact physical dimensions: 5 mm height, 5 mm depth, 4.4 mm length. Wide operating temperature range from -55°C to 85°C enhances reliability under harsh conditions. 1 pF capacitance minimizes signal interference. Complies with UL and RoHS certifications.
Suitable for a variety of industrial, commercial, telecommunications, automotive, and aircraft electronic applications requiring surge protection.
Combine the high surge current capacity and stable performance of the Bourns 2035-09-SM-RPLF Gas Discharge Tube to ensure the protection and longevity of critical components in your circuits. Explore the Electronics & Electricals category for more surge protection components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this gas discharge tube is 5 kA, providing robust transient voltage suppression.
This model operates at a DC spark over voltage of 90 V, ensuring effective protection against voltage spikes.
The dimensions of this unit are 5 mm in height, 5 mm in depth, and 4.4 mm in length, making it suitable for high-density electronic designs.
The lead pitch for this model is 3.9 mm, allowing for precise PCB mounting.
It operates reliably within a temperature range of -55°C to 85°C, enhancing its performance in various environments.
This model features a low capacitance of 1 pF, which helps minimize signal interference in critical circuits.
It complies with UL and RoHS standards, ensuring safety and environmental compliance.
This unit utilizes a surface mount design, making it suitable for integration into compact electronic assemblies.
It is suitable for applications in telecommunications, industrial automation, automotive electronics, and aircraft systems that require surge protection.
The impulse spark over voltage for this model is 525 V, indicating its capability to handle transient voltage conditions.
The DC holdover voltage is 52 V, which is important for maintaining circuit integrity under specific conditions.
The country of origin for this gas discharge tube is Costa Rica.
