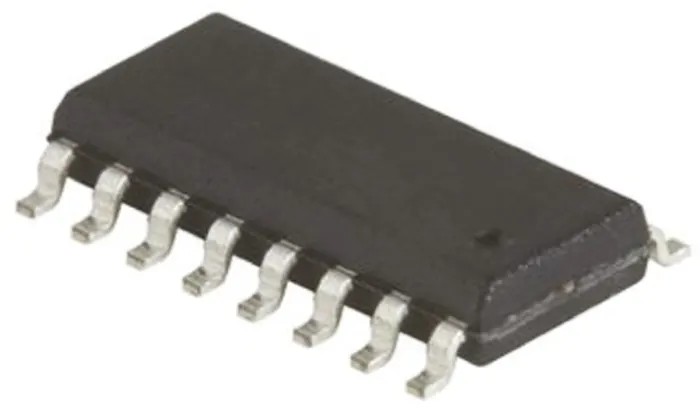

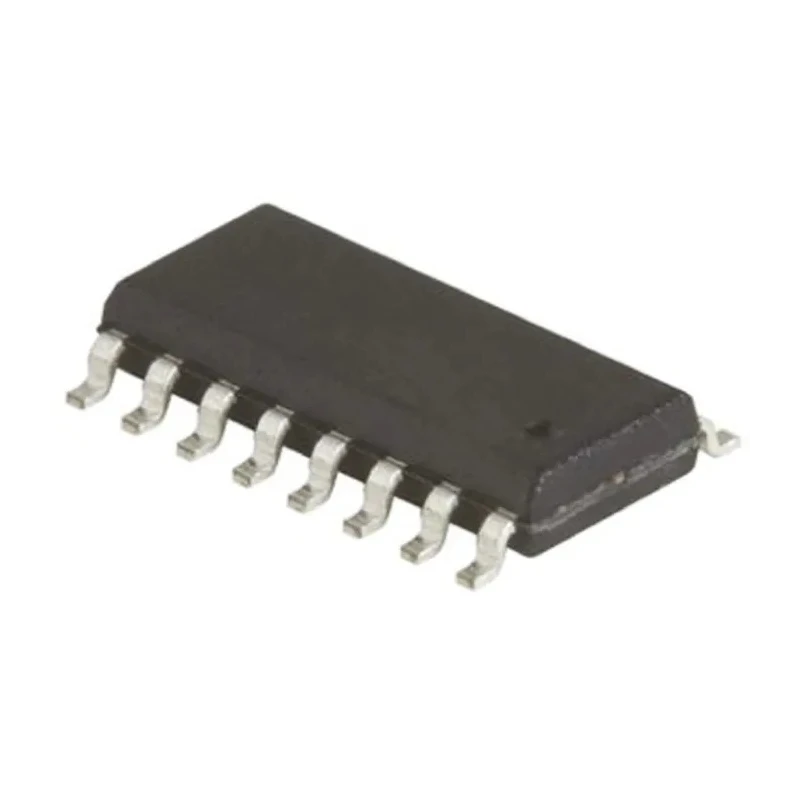

onsemi CMOS Single 8:1 Multiplexer 16-Pin SOIC MC14051BDR2G

onsemi MC14051BDR2G is a CMOS technology-based single 8:1 multiplexer housed in a compact 16-pin SOIC package. It operates over a wide voltage range of 3 to 18 volts and is suitable for high-reliability industrial, automotive, and electronic component applications.

The device supports a single multiplexing function and outputs through CMOS logic, ensuring low power operation and high noise immunity. Its operational temperature range from -55°C to 125°C makes it ideal for harsh environments.

With a maximum on-state resistance of 1.2kΩ, this multiplexer efficiently switches signals with minimal degradation. Its surface mount design and standard SOIC package dimensions (10mm length, 4mm width, 1.5mm height) enable compact circuit board layouts and ease of assembly.

This multiplexer complies with RoHS directives and meets the automotive industry standard AEC-Q100, ensuring it can be confidently deployed in automotive electronics systems. Supports single 8:1 multiplexer configuration with CMOS output.

Wide operating voltage range from 3V to 18V. Operational temperature range of -55°C to 125°C suited for extreme environments. Compact SOIC package with dimensions 10mm x 4mm x 1.5mm. Low on-state resistance of 1.2kΩ for efficient signal switching.

RoHS compliant and AEC-Q100 qualified. Ideal for industrial, automotive, and electronic multiplexer applications.

This product is a key component in multiplexing digital signals in automotive control units, industrial automation systems, and electronic instrumentation. Integrators benefit from its reliability, electrical characteristics, and compact packaging.
