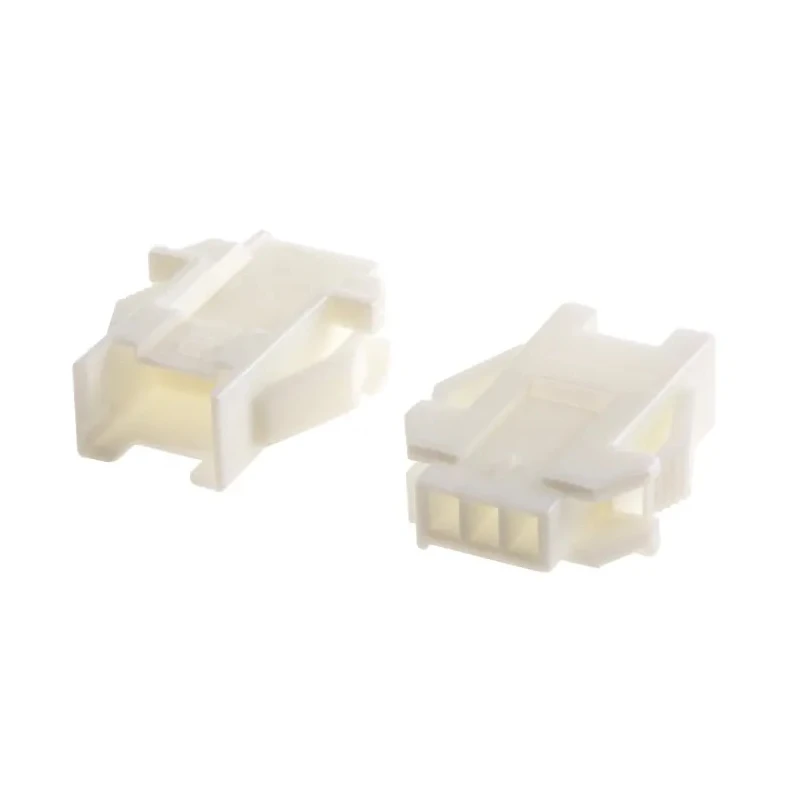

JST XA Female Connector Housing 2.5 mm Pitch 3 Way 1 Row Straight XARR-03V

Free Delivery in India | Lowest Global Shipping Charges

JST XA Female Connector Housing 2.5 mm Pitch 3 Way 1 Row Straight XARR-03V



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Orientation	Straight
Length	10mm
Model	XARR-03V
Mount Type	Panel
Housing Material	Nylon
Series	XA
Interfaces	lance
Number of Rows	1
Pitch	2.5mm
For Use With	XA socket
Number of Contacts	3
Connector Gender	Female

Key Features

Part of the XA series with a secure panel lock construction.
Constructed from high-quality nylon housing for durability and thermal stability.
Compatible with XA sockets using inner type contact lance for reliable connections.
Designed for operating temperature range from -25°C to 85°C.
Features a secondary retainer to enhance secure locking during use.
Manufactured in Japan ensuring superior quality and performance.
Orientation is straight to facilitate easy wiring and installation.

Product Description

JST XARR-03V female connector housing belongs to the XA series, offering a 2.5 mm pitch with 3 contact positions arranged in a single row with a straight orientation. This connector housing is engineered for panel mount applications and provides secure locking through its panel lock design, ensuring reliable connections in demanding industrial and electronic systems.

Manufactured with high-quality nylon material, the housing provides excellent durability and can operate safely within temperatures ranging from -25°C to 85°C. The design includes an inner type contact lance and a secondary retainer that enhances the locking mechanism for secure mating with XA sockets.

This 2.5 mm wire-to-board connector is compact with a 10 mm length dimension, making it suitable for use in tight spaces while maintaining performance integrity. The connector is especially useful in industrial automation, electronic component assembly, control panels, and various manufacturing environments where reliable electrical connections are critical.

Manufactured in Japan, the connector meets stringent quality standards but does not carry specific certifications or approvals indicated. The absence of standards/approvals does not diminish its utility in technical applications where XA series connectors are specified.

Part of JST's XA series with panel lock construction for secure connection. Durable nylon housing capable of wide temperature operation (-25°C to 85°C). Designed with inner type contact lance and secondary retainer for stability.

Compact 10 mm length and 2.5 mm pitch wired configuration. Straight orientation provides easy installation in panel mount applications. Manufactured in Japan ensuring high manufacturing quality and consistency. Compatible with XA sockets offering flexible system integration.

This connector housing is well suited for use in electronics manufacturing, automation systems, industrial control panels, and other laboratory or commercial equipment requiring reliable female Connector Housings. It complements a range of JST XA series sockets and connectors, supporting modular and scalable connector system designs.
