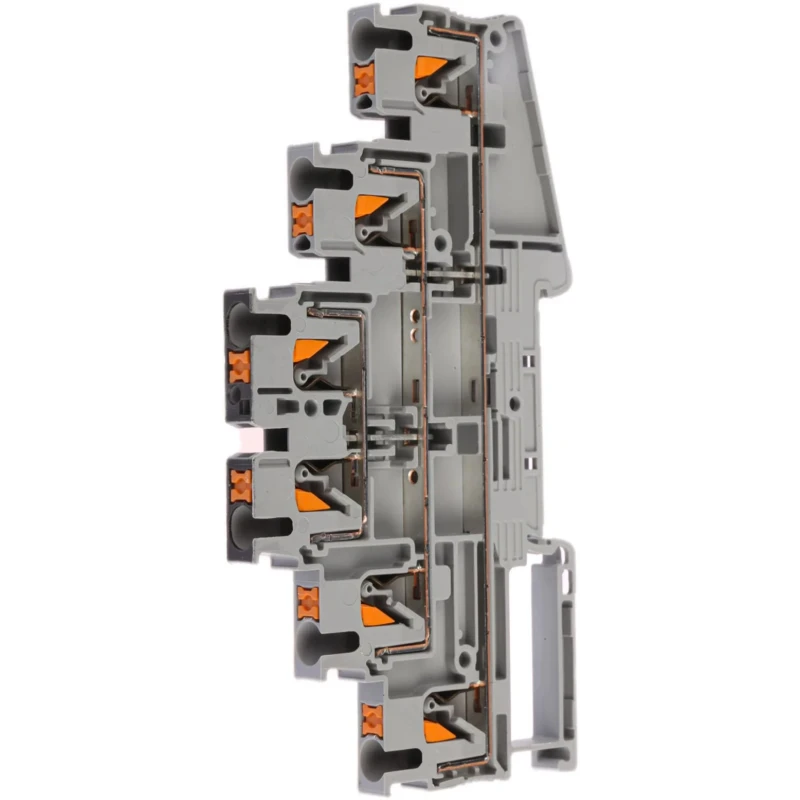

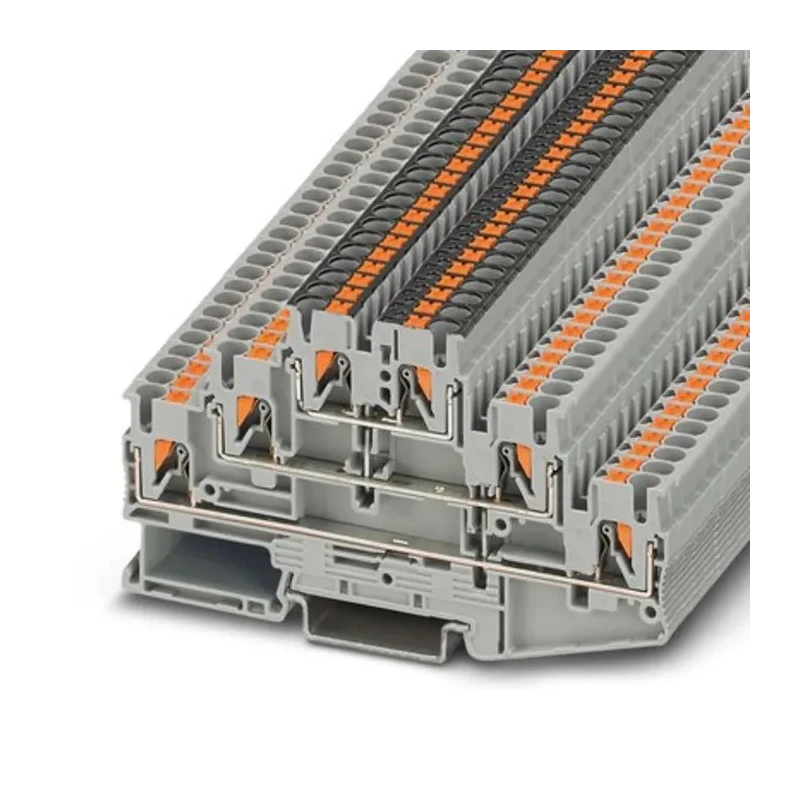

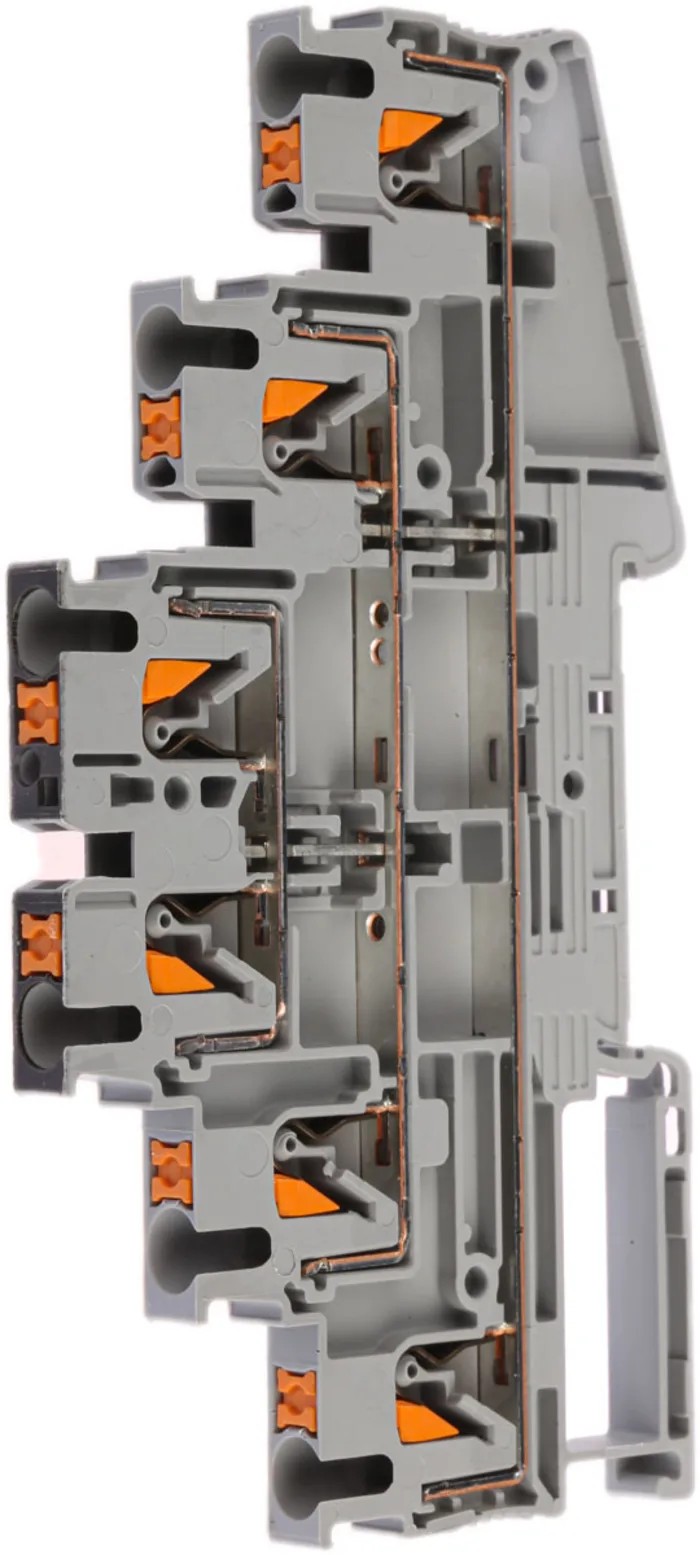

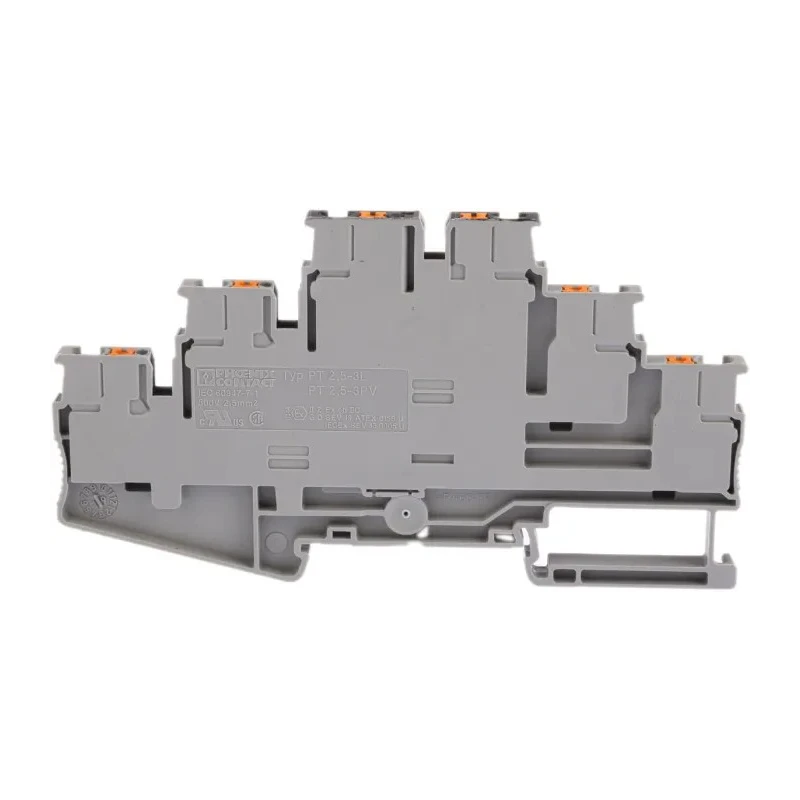

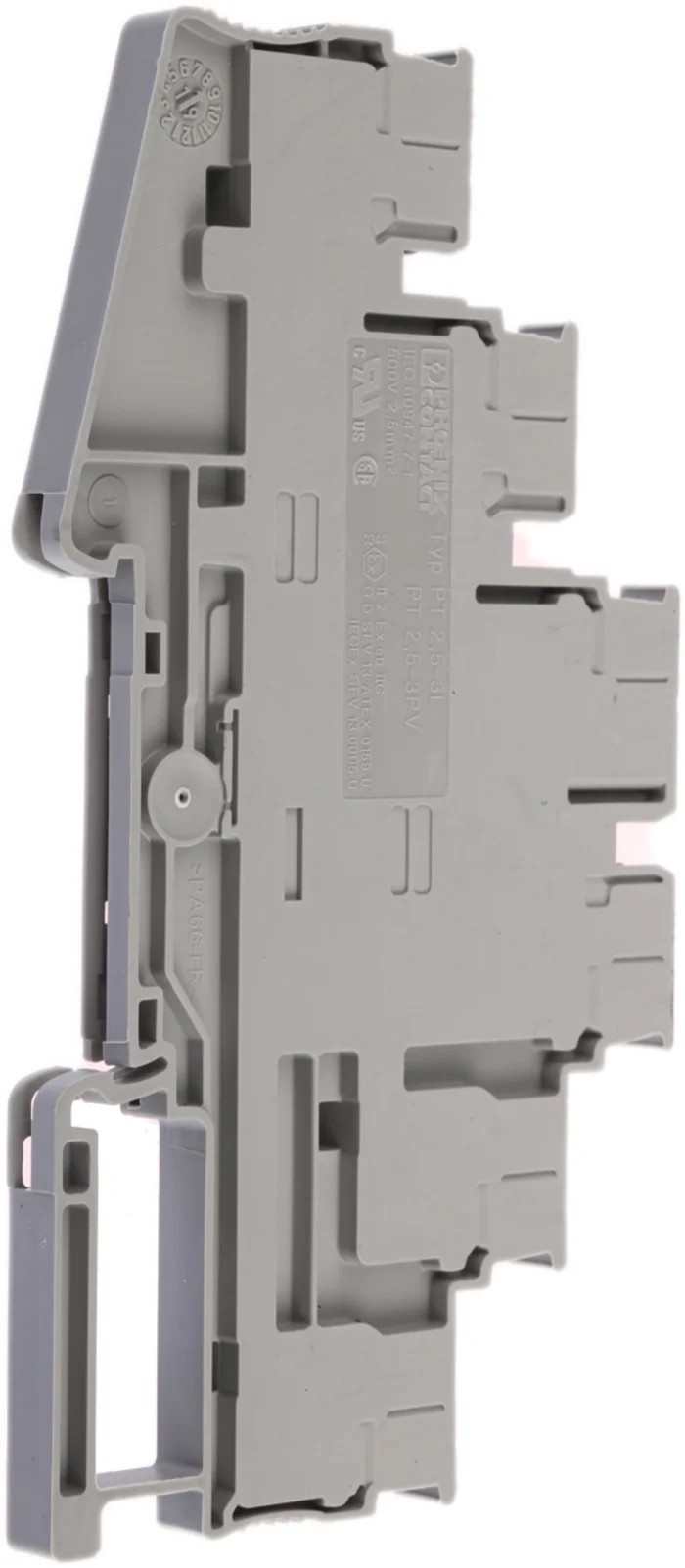

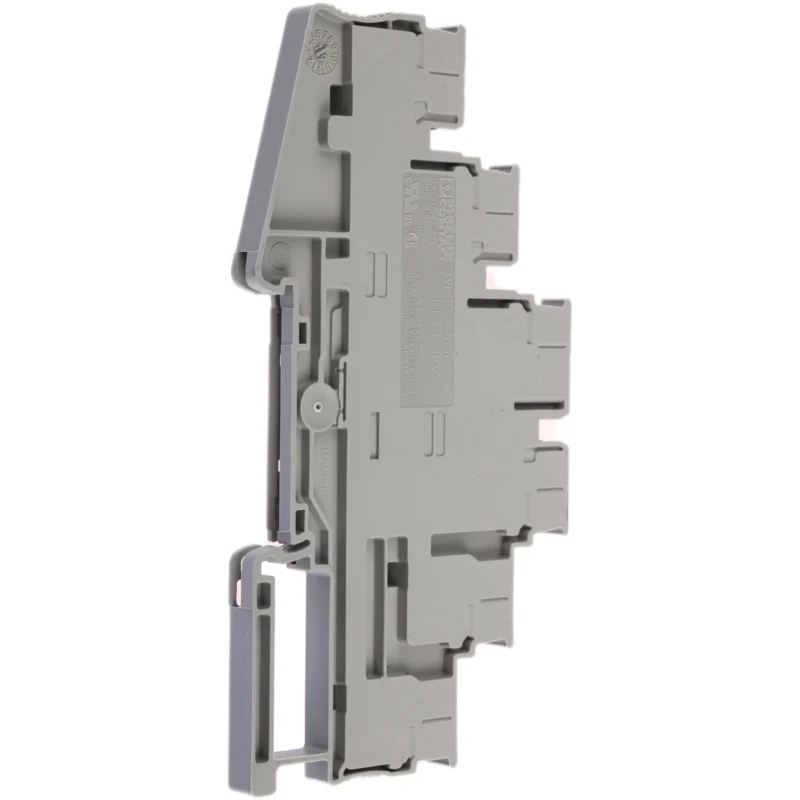

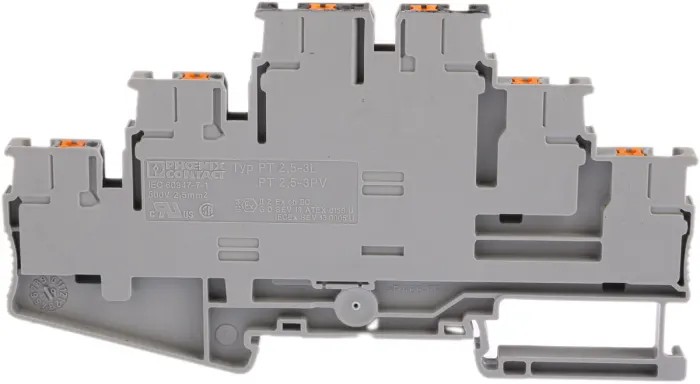

Phoenix Contact PT 2.5-3PV Series Multi Level Terminal Block Grey 0.14mm² to 4 mm² 3-Level Push-in 500V 20A ATEX 3210512
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3210512 |
| Series | PT 2.5-3PV |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 3 |
| Sub Type | Multi-Level |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | CSA, cUL, cULus, EAC, UL |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.14, 4mm² |
| Terminal Block Current | 20A |
Key Features
- Rated for a current of 20A suitable for electrical power circuits.
- Push-in termination type enables tool-free and fast wiring installations.
- Supports wire cross section range from 0.14 mm² to 4 mm² (26 AWG to 12 AWG).
- Designed with three levels to accommodate multiple circuits efficiently.
- Operating voltage rated at 500 volts for safe electrical operation.
- Constructed with grey PA insulation and an equipotential bonder for double electric shock protection.
- Temperature range between -60°C and 105°C for reliable performance in diverse environments.
- Certified to international standards including CSA, cUL, cULus, EAC, and UL.
Product Description
Phoenix Contact 3210512 PT 2.5-3PV Series Multi Level Terminal Block is a grey, three-level terminal block designed for industrial and commercial electrical wiring. It supports wire sizes between 0.14 mm² and 4 mm² (26 AWG to 12 AWG) with a 20A current rating and a 500V voltage rating, making it suitable for heavy-duty electrical applications.
The block features push-in termination technology, facilitating quick and secure wire connections without the need for tools, thereby enhancing installation efficiency.
Built with durable PA insulation and an equipotential bonder, it provides double protection against electric shocks. Its wide operating temperature range from -60°C to 105°C ensures reliable performance across diverse environmental conditions.
This multi-level terminal block has three levels, allowing multiple circuit connections within a compact footprint, thus saving space and reducing wiring complexity.
It complies with key safety standards such as CSA, cUL, cULus, EAC, and UL, and is ATEX certified for use in hazardous areas, making it suitable for automotive engineering, signalling systems, and industrial power distribution.
Manufactured in Poland, this product also meets RoHS standards, minimizing the use of hazardous substances like lead and mercury, contributing to environmentally responsible usage.
Rated for a current of 20A for electrical power circuits. Push-in termination provides tool-free wiring connections. Wire cross section compatibility from 0.14 mm² to 4 mm² (26 AWG to 12 AWG). Three-level design accommodates multiple circuits efficiently.
Voltage rated at 500 volts ensuring safe operation. Double protection with PA insulation and equipotential bonder. Wide operating temperature range from -60°C to 105°C. Conforms to CSA, cUL, cULus, EAC, and UL standards.
ATEX certified for hazardous area applications. Made in Poland with RoHS compliance. Explore more in our Electronics & Electricals section to find complementary connectors and DIN rail Terminal Blocks from Phoenix Contact and other trusted brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 20A, making it suitable for electrical power circuits.
It has a voltage rating of 500V, ensuring safe electrical operation in various applications.
This model supports wire sizes ranging from 0.14 mm² to 4 mm² (26 AWG to 12 AWG).
It features push-in termination technology, allowing for tool-free and fast wiring installations.
The operating temperature range is from -60°C to 105°C, which allows reliable performance in diverse environments.
This terminal block is designed with three levels, accommodating multiple circuits efficiently within a compact footprint.
It is certified to international standards including CSA, cUL, cULus, EAC, and UL, and is ATEX certified for use in hazardous areas.
It is constructed with grey PA insulation and includes an equipotential bonder for double protection against electric shocks.
This product is manufactured in Poland, ensuring compliance with RoHS standards to minimize hazardous substances.
It is suitable for automotive engineering, signalling systems, and industrial power distribution due to its robust design and certifications.
Specific dimensions are not provided, but it is designed to accommodate multiple circuits efficiently in a compact form.
The push-in termination type allows for quick and secure wire connections, enhancing installation efficiency without the need for tools.
