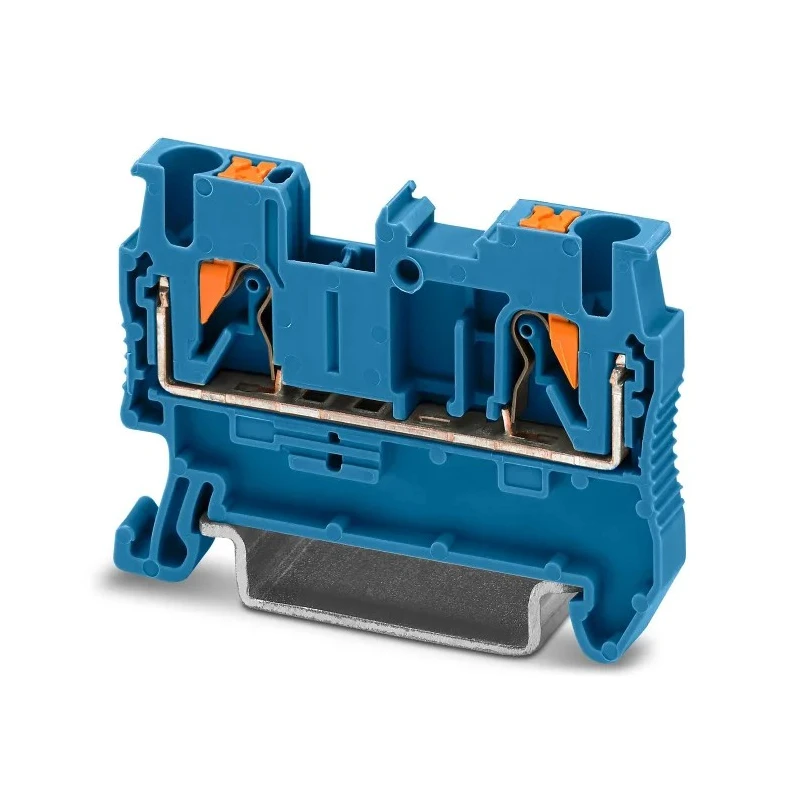

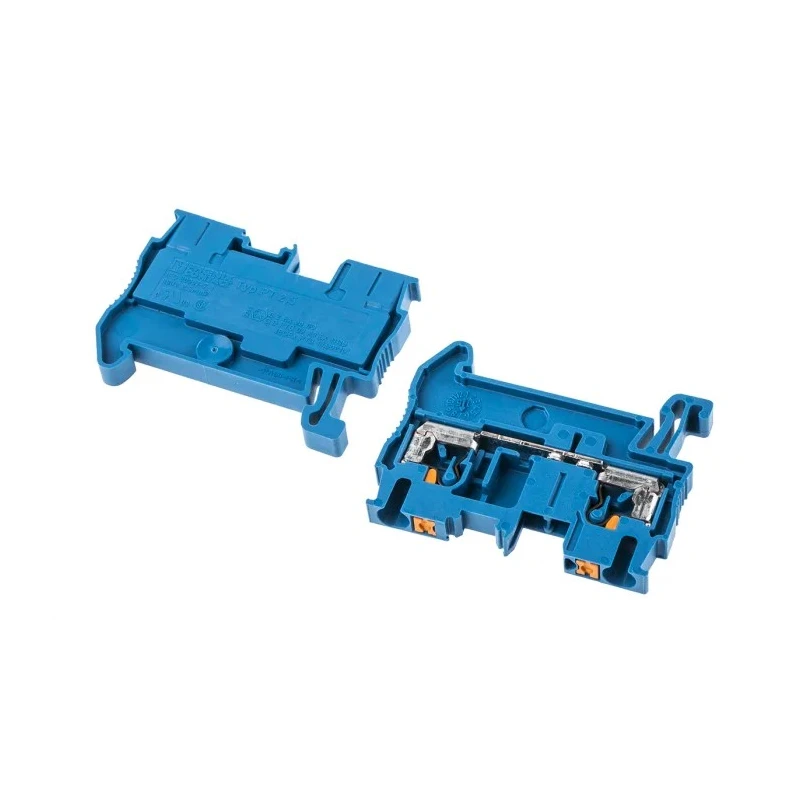

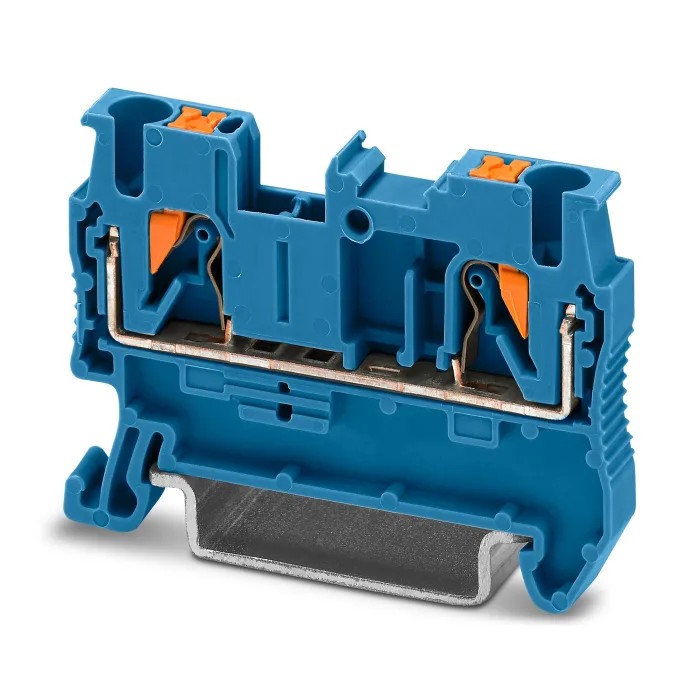

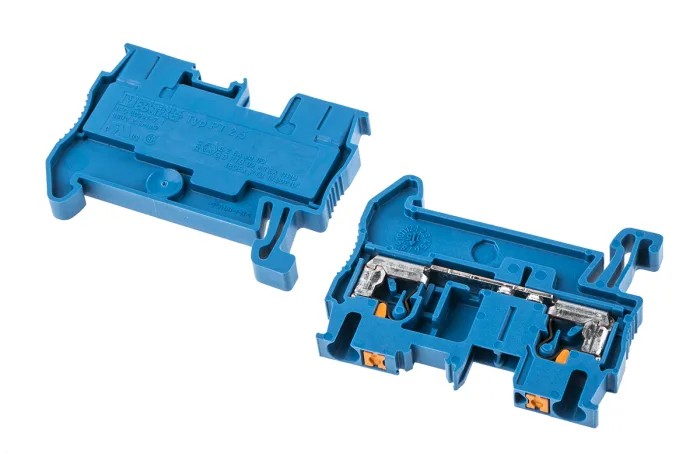

Phoenix Contact PT 2.5 BU Series Feed Through Terminal Block Blue, 800V, 24A, 0.14mm² to 4 mm², 1-Level, Push-in 3209523
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Blue |
| Model | 3209523 |
| Series | PT 2.5 BU |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Number of Positions | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -60°C |
| Pitch | 5.2mm |
| Hazardous Area Certification | IECEx, ATEX |
| Standards/Approvals | VDE, UL Recognised, NK, LR, IECEX, IECEE CB Scheme, IEC 60947-7-1, EAC Ex, EAC, DNV GL, cULus Recognised, cUL Recognised, CSA, Bureau Veritas, ATEX, ABS |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.14, 4mm² |
| Terminal Block Current | 24A |
Key Features
- Designed for quick and secure connections using push-in technology.
- Supports wire sizes from 26 AWG (0.14mm²) up to 12 AWG (4 mm²).
- Compact 1-level, 1-position design facilitates wiring in tight spaces.
- Operates reliably in temperatures from -60°C up to 105°C.
- Certified for hazardous areas with IECEx and ATEX approvals.
- Blue polyamide insulator provides excellent electrical resistance.
- Features low insertion force reducing wire damage risks.
- Includes a testing feature with additional test connection.
Product Description
Phoenix Contact 3209523 PT 2.5 BU Series Feed Through Terminal Block in blue is engineered for reliable electrical connections in demanding industrial environments. Rated for 800V and 24A, it supports wire sizes from 0.14mm² to 4 mm² with a push-in termination method that requires minimal insertion force, reducing the likelihood of wire damage.
The terminal block features a compact 1-level, 1-position design to enable wiring in confined spaces and includes a dual-function shaft with a test feature and an additional test connection for verifying component function. Constructed from durable polyamide insulating material, it withstands surge voltages up to 8 kV and maintains operation between -60°C and 105°C.
Certified under IECEx and ATEX hazardous area standards, and complying with multiple international approvals including VDE, UL, NK, LR, IECEE CB Scheme, and more, it ensures safe and compliant usage in demanding applications.
This terminal block is part of Phoenix Contact's CLIPLINE system, enabling easy bridging with multi-conductor and function terminals, saving space and facilitating efficient electrical assembly.
The push-in connection technology allows easy direct plugging of solid and stranded conductors without ferrules starting at 0.34 mm², with an actuation button to release or wire smaller cross sections down to 0.14 mm². Its front connection aids wiring accessibility.
Quick, secure push-in conductor connection. Low insertion force protects conductors. Compact form factor optimizes space usage. Wide temperature and voltage operating range for industrial environments. Test capabilities integrated within the device.
Widely certified for international and hazardous area use. Versatile for use in railway, plant, and process automation. Polyamide insulation ensures electrical robustness. Part of a comprehensive modular terminal block system.
Front connection design supports cramped wiring environments. Explore EnvMart's Electronics & Electricals categories for more DIN Rail Terminal Blocks and compatible components to complete your electrical installations with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for a voltage of 800V.
It has a maximum current capacity of 24A.
This terminal block supports wire sizes from 26 AWG (0.14mm²) to 12 AWG (4 mm²).
It operates reliably in temperatures ranging from -60°C to 105°C.
It utilizes a push-in termination method, allowing for easy and secure connections.
Yes, it is certified under IECEx and ATEX hazardous area standards.
The terminal block features a blue polyamide insulator that provides excellent electrical resistance.
It has a compact 1-level, 1-position design, which facilitates wiring in tight spaces.
Yes, it includes a dual-function shaft with a test feature and an additional test connection for verifying component function.
It complies with multiple international approvals including VDE, UL, NK, LR, and the IECEE CB Scheme.
The pitch of this terminal block is 5.2mm.
