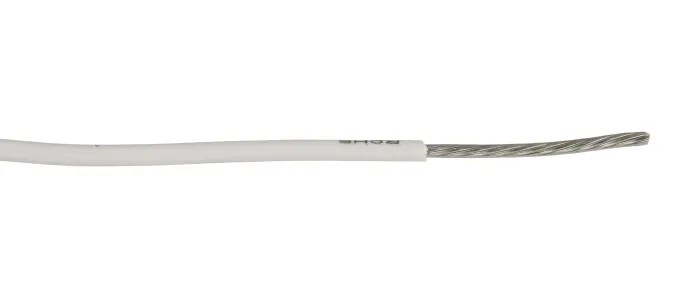

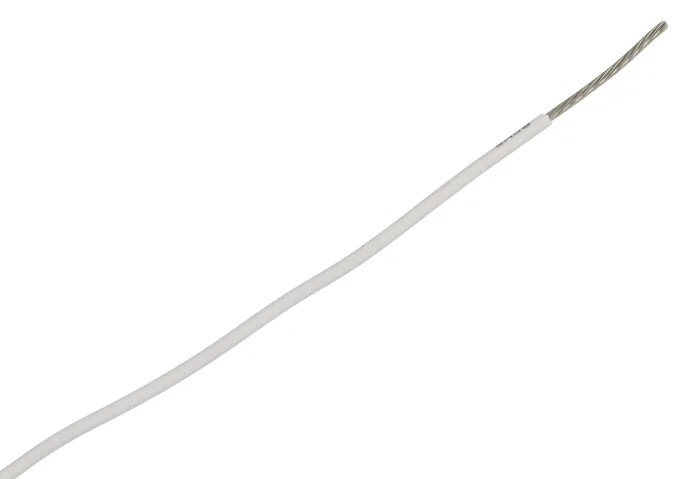

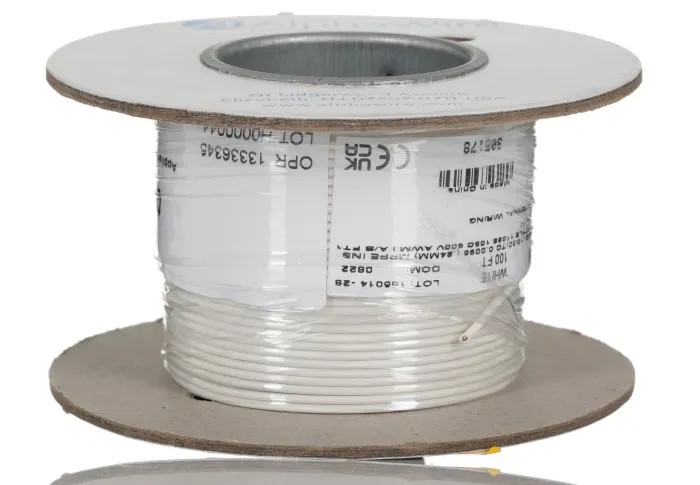

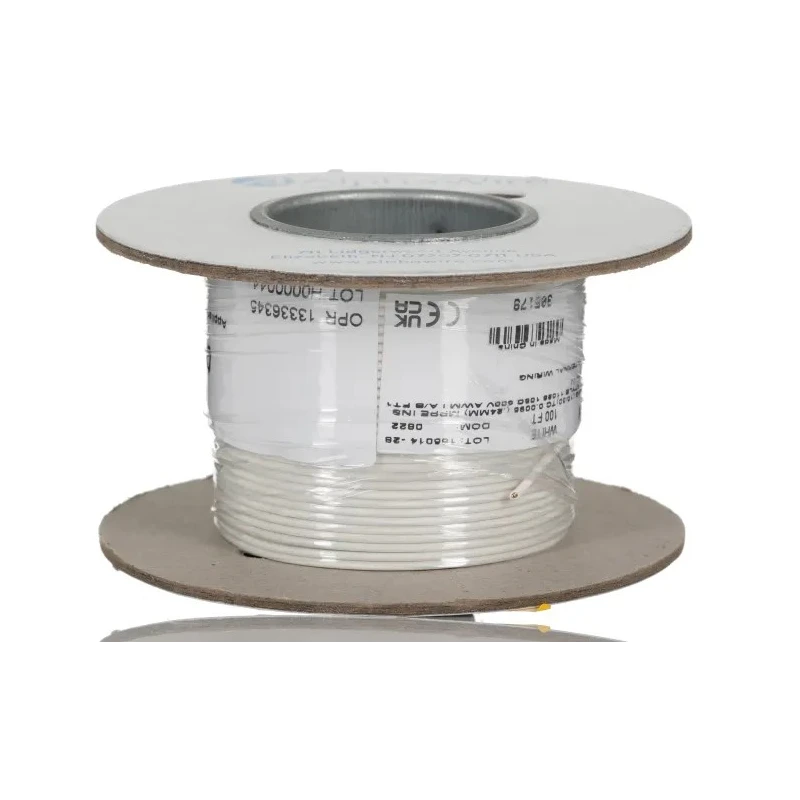

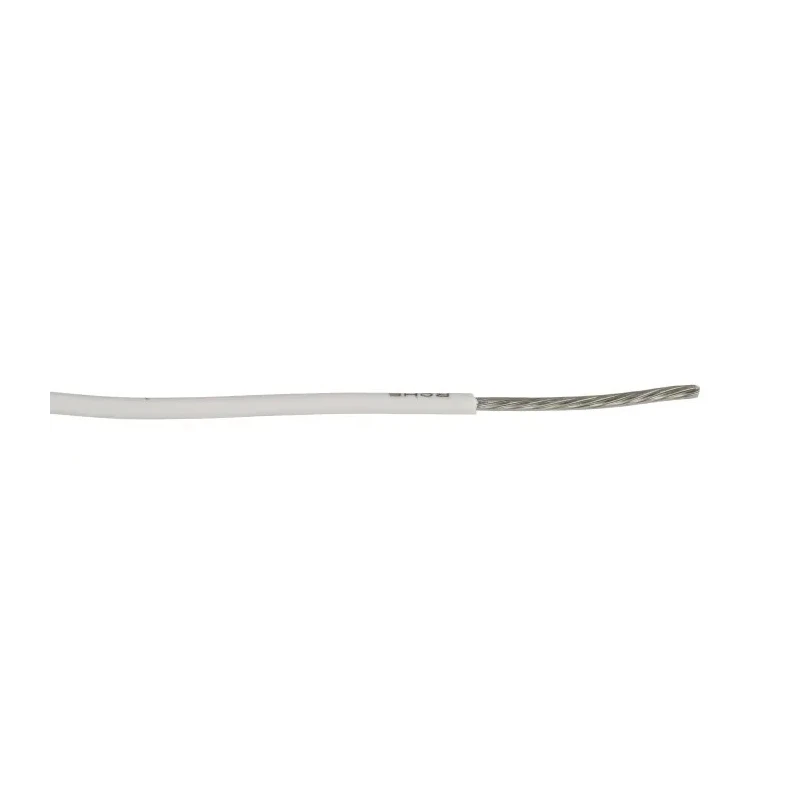

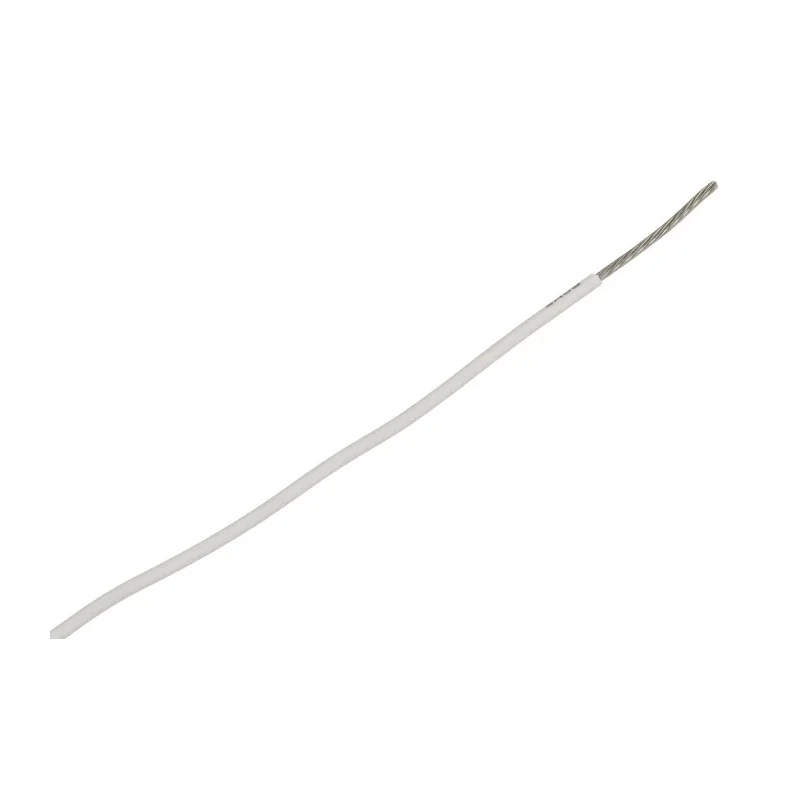

Alpha Wire Ecogen Ecowire Series White 0.52 mm² Hook Up Wire, 20 AWG, 10x0.25 mm Strands, 30 m Length, MPPE Jacket 6714 WH005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series White 0.52 mm² Hook Up Wire, 20 AWG, 10x0.25 mm Strands, 30 m Length, MPPE Jacket 6714 WH005

Name: Alpha Wire Ecogen Ecowire Series White 0.52 mm² Hook Up Wire, 20 AWG, 10x0.25 mm Strands, 30 m Length, MPPE Jacket 6714 WH005
Brand: ALPHA WIRE
SKU: 212048
Price: 52.23 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.52mm²
Model	6714 WH005
Cable Length	30m
Series	Ecogen Ecowire
Outside diameter	1.4mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Sub Type	EcoWire
Cable Type	Hookup
Minimum Operating Temperature	-40°C
Jacket Material	MPPE
Standards/Approvals	CE, CSA, UL
Jacket Colour	White
Fire Behaviour	Flame Retardant
American Wire Gauge	20AWG
Number of Strands	10
Core Strands	10 x 0.25mm
Size of Strands	0.25mm

Key Features

Constructed with tinned copper conductors for superior conductivity.
Rated for continuous operation at temperatures up to 105°C.
Features a white MPPE jacket that is flame retardant and flexible.
Measures 30 meters in length with 10 strands of 0.25 mm diameter each for flexibility.
Unshielded single-core design simplifies installation and reduces cost.
Operates reliably between -40°C to +105°C temperature range.
Compliant with CE, CSA, and UL safety standards.
Ideal for internal wiring in automotive, electronic circuit boards, and appliance construction.

Product Description

Alpha Wire 6714 WH005 Ecogen Ecowire Series White 0.52 mm² Hook Up Wire, 20 AWG, with 10 strands of 0.25 mm diameter copper conductor and MPPE insulation rated at 600V and 105°C maximum operating temperature. This flame retardant Hook Up Wire is engineered for demanding industrial, automotive, electronics, and appliance wiring applications requiring reliable performance.

The single-core wire features tinned copper conductors that provide outstanding electrical conductivity and corrosion resistance. The modified polyphenylene ether (MPPE) jacket offers excellent thermal stability, electrical insulation, and flame retardant properties, allowing continuous use from -40°C up to 105°C.

Its unshielded design simplifies installation and reduces material costs, making it suitable for wiring circuit boards, automation control systems, and internal electrical connections inside appliances and vehicles. The white color jacket improves visibility and organization in wiring harnesses.

Manufactured from tinned copper for enhanced conductivity and durability. Rated for 600V electrical applications with flame retardant MPPE insulation. Operates in a broad temperature range from -40°C to +105°C. Flexible 10-strand 0.25 mm conductor strands enable easy routing in confined spaces.

Unshielded construction eases installation and cost efficiency. Complies with CE, CSA, and UL11028 safety standards. Ideal for automotive internal wiring and electronic device connections. Suitable for industrial automation, appliance manufacturing, and control panel wiring.

Alpha Wire products are trusted for quality and consistent electrical performance, making the 6714 WH005 an excellent choice for demanding wiring applications. Browse EnvMart’s full range of electrical cables and wires for professional solutions.
