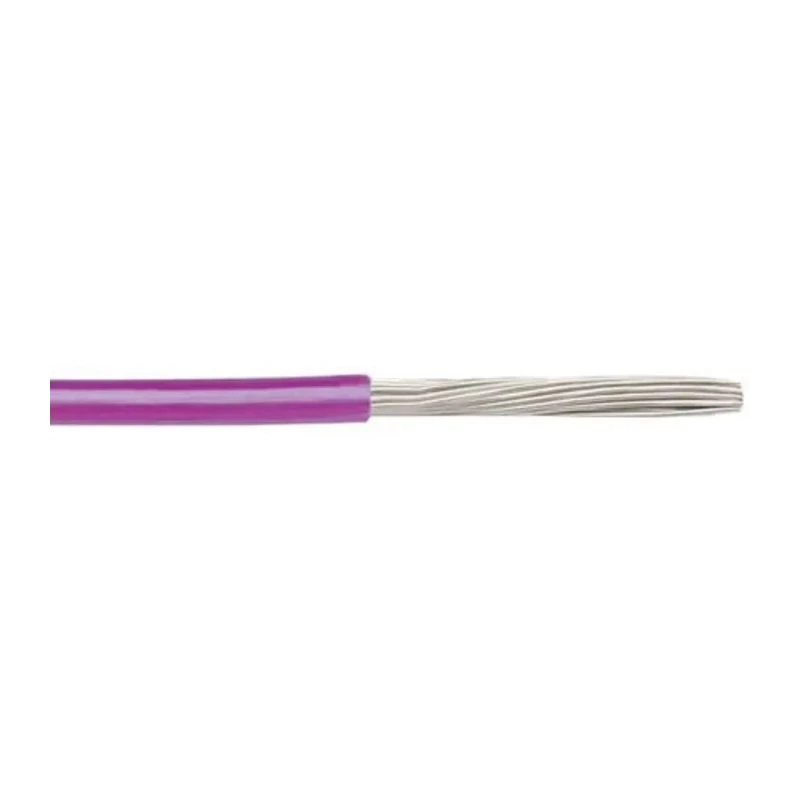

Alpha Wire Ecogen Ecowire Series Purple 0.08 mm² Hook Up Wire, 28 AWG, 7/0.12 mm Strands, 30 m Length, Modified 6710 VI005

Alpha Wire 6710 VI005 Ecogen Ecowire Series Purple Hook Up Wire offers a cross sectional area of 0.08 mm² (28 AWG) with seven 0.12 mm core strands over a length of 30 meters. This advanced hook up wire features a modified polyphenylether (mPPE) jacket that is halogen free, flame retardant, and environmentally sustainable as it is fully recyclable. The violet coloured jacket withstands an operating temperature range from -40°C up to 105°C and supports a maximum voltage rating of 600 V.

The EcoWire technology from Alpha Wire enhances performance by allowing a reduction in cable diameter by up to 45% and weight by 40% compared to PVC insulated wires, without compromising dielectric strength. This makes it ideal for demanding industrial, electrical automation, and electronic manufacturing applications. The 7-strand copper conductor ensures flexibility and excellent electrical conductivity.

This product complies with stringent international standards including CE, CSA, and UL approvals, specifically UL AWM 11028 VW-1 and CSA AWM I A/B FT1, ensuring safety and quality assurance. The flame retardant, halogen free properties contribute to safer installations in commercial and industrial electrical systems.

Typical uses include wiring in control panels, automotive industry, meters, ovens, computers, electronic equipment, business machines, and appliances. Compatibility with Alpha Wire's FIT heat-shrink tubing and FIT wire management systems provides convenient wiring solutions and enhanced insulation performance.

The wire’s jacket material is a modified polyphenylether optimized for environmental friendliness and flame resistance. The conductor consists of seven strands of tinned copper, each with a diameter of 0.12 mm, conforming to 28 AWG standards.

The wire length is 30 meters, suitable for a variety of installation sizes and requirements. The outer diameter measures 0.86 mm, significantly smaller than traditional PVC insulated wires. Designed for harsh environments with a temperature range capability from -40°C to 105°C ensuring durability.

EcoWire is fully recyclable, supporting sustainable practices in electronic and electrical manufacturing. Meets or exceeds international certifications for flame retardance, safety, and environmental compliance. Explore the high-performance EcoWire range of Hook Up Wires at EnvMart for reliable and eco-friendly electrical wiring solutions.
