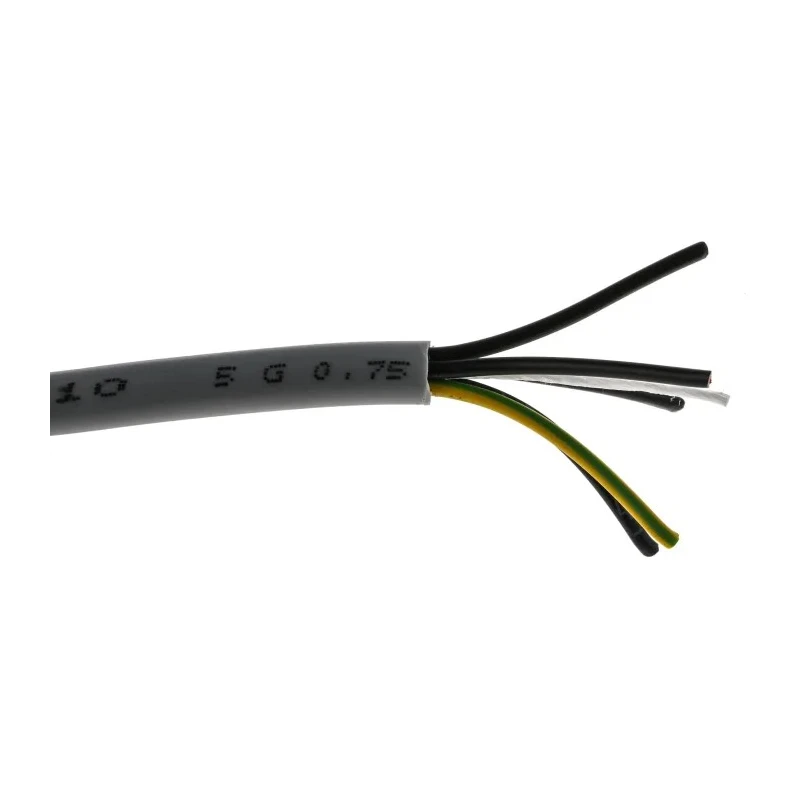

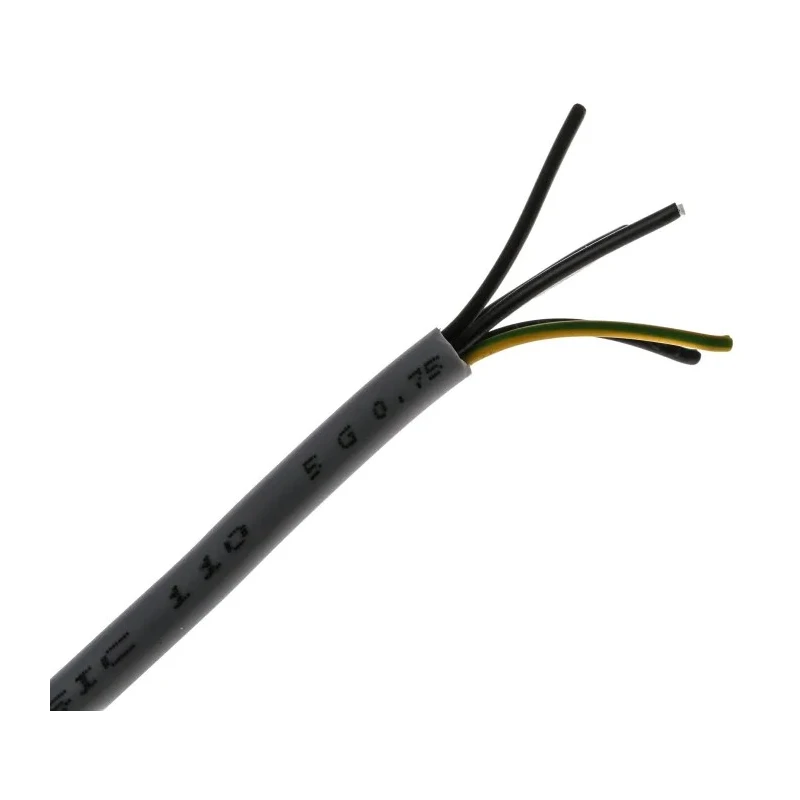

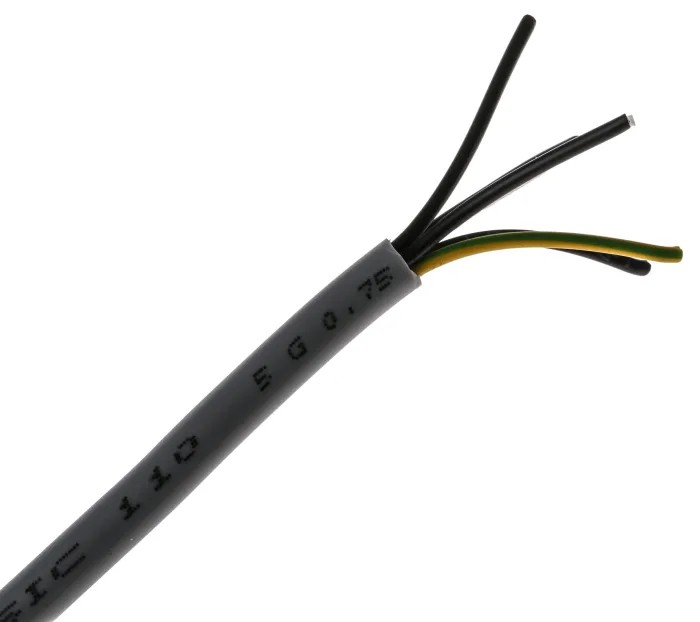

RS PRO Control Cable, 5 Cores 0.75mm² 18 AWG, Unscreened, 50 m Length, Grey Polyvinyl Chloride Sheath 827-4278

RS PRO 827-4278 Control Cable is a high-quality, unscreened 5-core control cable featuring a cross-sectional area of 0.75 mm² and 18 AWG stranded bare copper conductors. It is designed with a grey polyvinyl chloride sheath that provides flexibility, durability, and resistance to chemicals and oils, making it ideal for diverse industrial and automation purposes.

This cable spans 50 meters in length and has an outer diameter of approximately 6.7 mm, balancing compactness with the necessary mechanical robustness. Rated for continuous use in temperatures ranging from -40°C to +80°C, it operates safely under low voltage conditions of 300/500 V with flame retardant features contributing to enhanced safety during operation.

The cable conforms to EN 50525-2-51 standards, ensuring compliance with European industry regulations. Its unscreened design simplifies installation while maintaining reliable power and signal transmission, suitable for plant engineering projects, conveyor and transport system wiring, as well as heating, ventilation, and air-conditioning systems.

The cable's flexibility allows use in both static and occasional flexing installations, with the minimum bend radius specified as 4 times the diameter for fixed positioning and 15 times for occasional movement. The oil-resistant PVC outer jacket further extends application potential in environments exposed to oils.

The cable includes five cores of 0.75 mm² bare copper conductors for efficient current conduction. Stranded conductor design with 24 strands of 0.2 mm wire enhances flexibility and mechanical tolerance. Grey PVC jacket is chemically resistant and flame retardant.

Rated for a maximum operating temperature of 80°C and low voltage applications. Complies with EN 50525-2-51 for safety and performance standards. Suitable for automation, industrial, and HVAC installations. Flexible design allows easy routing in confined spaces.

Minimum bend radius specifications support structural integrity during installation.

This cable is an excellent choice for electrical power and industrial control applications, providing durable and reliable performance. Explore the range of Control Cables and industrial wiring solutions available at EnvMart for your professional needs.
