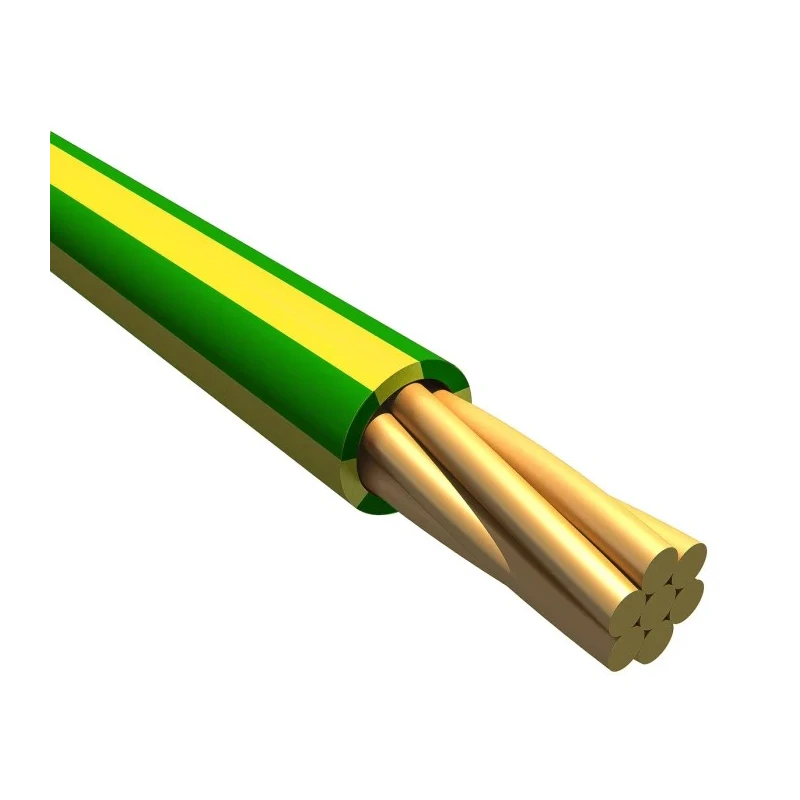

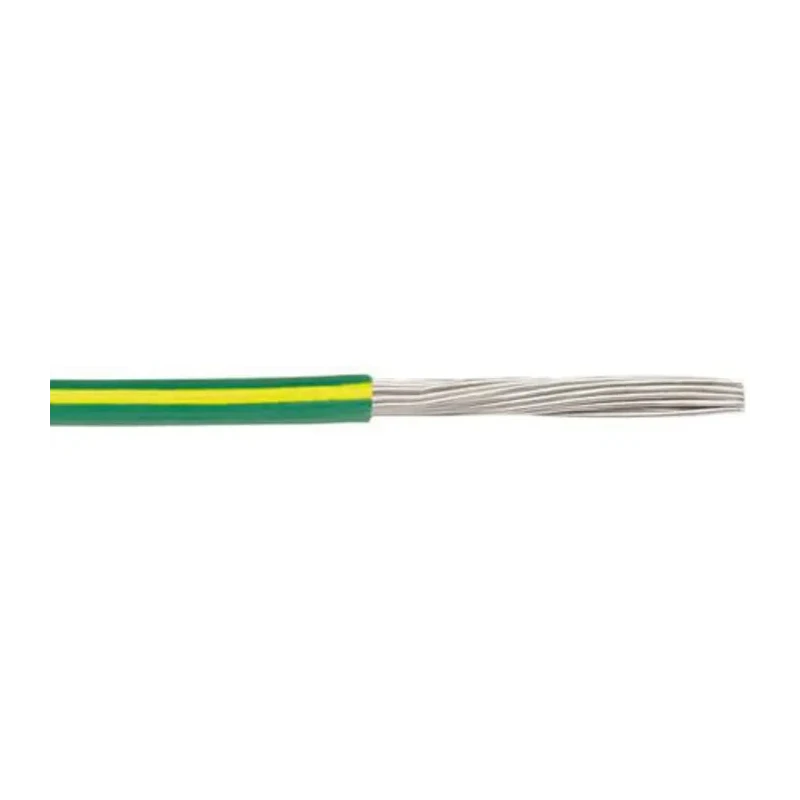

Alpha Wire Ecogen Ecowire Series Green Yellow 0.08mm² Hook Up Wire 28 AWG 7x0.12mm Core Strands 30m 6710 GY005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series Green Yellow 0.08mm² Hook Up Wire 28 AWG 7x0.12mm Core Strands 30m 6710 GY005

Name: Alpha Wire Ecogen Ecowire Series Green Yellow 0.08mm² Hook Up Wire 28 AWG 7x0.12mm Core Strands 30m 6710 GY005
Brand: ALPHA WIRE
SKU: 212020
Price: 46.05 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.08mm²
Model	6710 GY005
Cable Length	30m
Series	Ecogen Ecowire
Outside diameter	0.86mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Sub Type	EcoWire
Cable Type	Hookup
Minimum Operating Temperature	-40°C
Jacket Material	Modified Polyphenilether
Standards/Approvals	CE, CSA, UL
Jacket Colour	Green, Yellow
Fire Behaviour	Halogen Free
American Wire Gauge	28AWG
Number of Strands	7
Core Strands	7 x 0.12mm
Size of Strands	0.12mm

Key Features

Fully recyclable EcoWire insulation reduces environmental impact.
7 strands of 0.12mm copper conductor for flexibility and conductivity.
Suitable for operating voltages up to 600 V with temperatures from -40°C to 105°C.
Halogen-free modified polyphenylene ether (mPPE) jacket offers flame retardant properties.
Smaller diameter and lighter weight compared to traditional PVC insulated wires.
Complies with UL AWM 11028 VW-1, CSA AWM I A/B FT1, CE, RoHS, and REACH standards.
Ideal for internal wiring in control panels, automotive, computers and electronic equipment.

Product Description

Alpha Wire 6710 GY005 EcoWire Series hook up wire combines advanced electrical performance with environmental sustainability. This Hook Up Wire features a 0.08 mm² copper conductor formed by 7 strands of 0.12 mm diameter each, conforming to 28 AWG standards, and is supplied in a 30 meter length.

The insulation is made from a halogen-free modified polyphenylene ether (mPPE) thermoplastic material, making the wire fully recyclable and reducing ecological impact without compromising on durability. The jacket material provides excellent dielectric strength allowing reduced wall thickness and lower weight compared to traditional PVC wires.

The wire is rated for a maximum operating voltage of 600 V and can safely operate in temperatures ranging from -40°C to 105°C. Its halogen-free composition enhances safety by limiting toxic gas emissions in case of fire, conforming to UL AWM 11028 VW-1, CSA AWM I A/B FT1, IEC 60332-2 flame behavior, RoHS, REACH, and CE certifications.

EcoWire 6710 GY005's flexibility and reliable conductivity are well suited for a wide range of industrial, laboratory, and commercial applications including control panels, automotive wiring, electronic devices, meters, ovens, and internal wiring of computers and business machines.

Additional features include up to 45% smaller diameter and up to 40% lighter weight than conventional PVC insulated wires. The wire is also flame retardant and resistant to hazardous oils and chemicals in the EcoWire Plus variant.

Fully recyclable insulation reduces environmental footprint. 7-strand copper conductor gives excellent flexibility and signal integrity. Wide temperature range suitable for demanding industrial environments. Halogen-free flame retardant jacket enhances safety compliance.

Conforms to multiple international standards for electrical and fire safety. Ideal for complex electronic and electrical wiring tasks. Available in common green and yellow identification colors.

Alpha Wire products are trusted in industries including manufacturing, HVAC, automation, electronics assembly, and electrical maintenance. Find more Alpha Wire cables and wires in the EnvMart electronics and electricals category.
