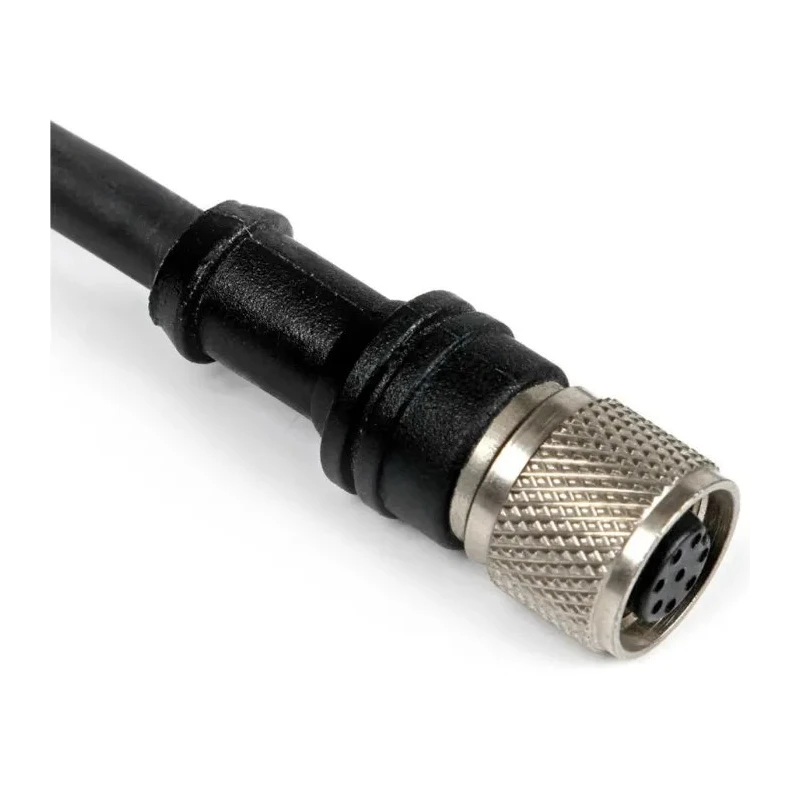

RS PRO Sensor Actuator Cable Female 8 Way Straight to Unterminated 8 Way Free End, 2 m 144-7659

RS PRO 144-7659 Sensor Actuator Cable is a high-quality industrial cable designed for connecting sensors and actuators in automation and electrical systems. Featuring a female 8-way M12 straight connector and an unterminated 8-way free end, this 2-meter cable provides flexibility for customized connections and installations.

The cable consists of eight tightly compacted color-coded cores with brass conductors coated in zinc to resist corrosion and ensure long service life. The black polyvinyl chloride (PVC) jacket combined with a polyurethane (PUR) sheath offers robust protection against mechanical wear and environmental factors.

Engineered for operation in demanding environments, the cable supports a broad temperature range from -25°C to +75°C and has an IP67 rating, making it dust-tight and water-resistant up to 1 meter depth. It is certified to meet CE and TÜV standards and complies with IEC/EN 61076-2-101 for screw-locking circular electronic connectors.

The cable's electrical specifications include a voltage rating of 30 V, current rating of 2 A, conductor resistance of minimum 100 mΩ, and a cross-sectional conductor area of 0.25 mm² (24 AWG). The unterminated free end is partially stripped to facilitate bespoke wiring configurations tailored to specific industrial requirements.

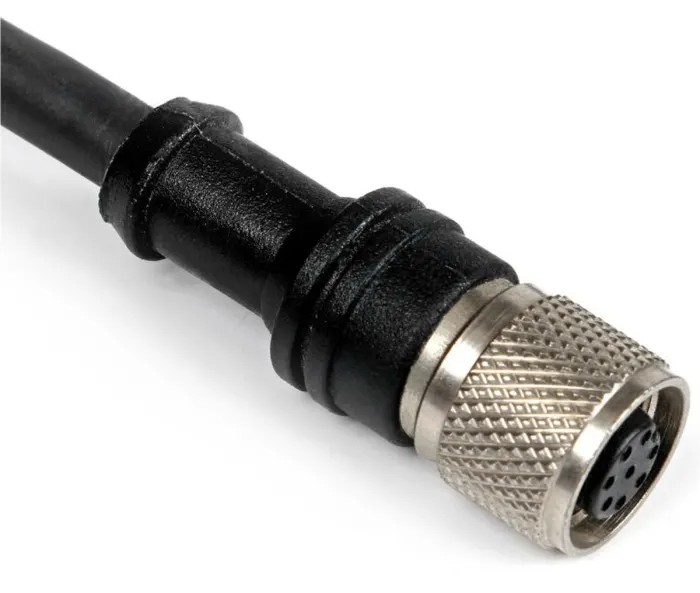

The cable features an M12 straight female connector on one end and an unterminated free end on the other. It includes eight color-coded cores with brass conductor material ensuring high conductivity and corrosion resistance.

The cable length is 2 meters with a durable black polyvinyl chloride (PVC) outer sheath and polyurethane (PUR) protective layer. Rated for 30 V voltage with a current capacity of 2 A and conductor resistance of ≥100 mΩ. The design includes a multi-core compact shape, providing enhanced durability and flexibility for industrial applications.

The cable is shielded and meets CE and TUV certifications with an IP67 ingress protection rating for dust-tight and water immersion resistance. It is suitable for operating temperatures ranging from -25°C to +75°C, ensuring performance in harsh environments.

The cross-sectional area of each core wire is 0.25 mm², with American Wire Gauge size 24 AWG for reliable electrical performance.

This RS PRO sensor actuator cable is ideal for various industrial uses including automation lines, manufacturing equipment connections, HVAC control systems, laboratory instrumentation, and water treatment plants where reliable signal transmission is critical. Its rugged construction supports operational reliability in harsh environmental and mechanical conditions.

EnvMart offers this cable as part of our comprehensive range of sensor and actuator wiring solutions designed to meet the quality demands of industrial and commercial electrical installations.
