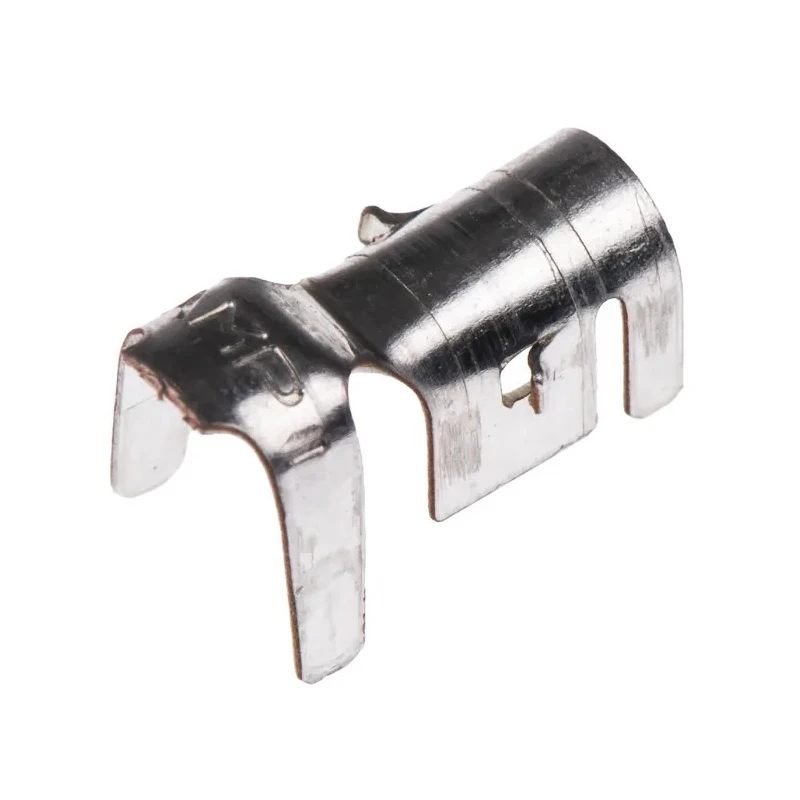

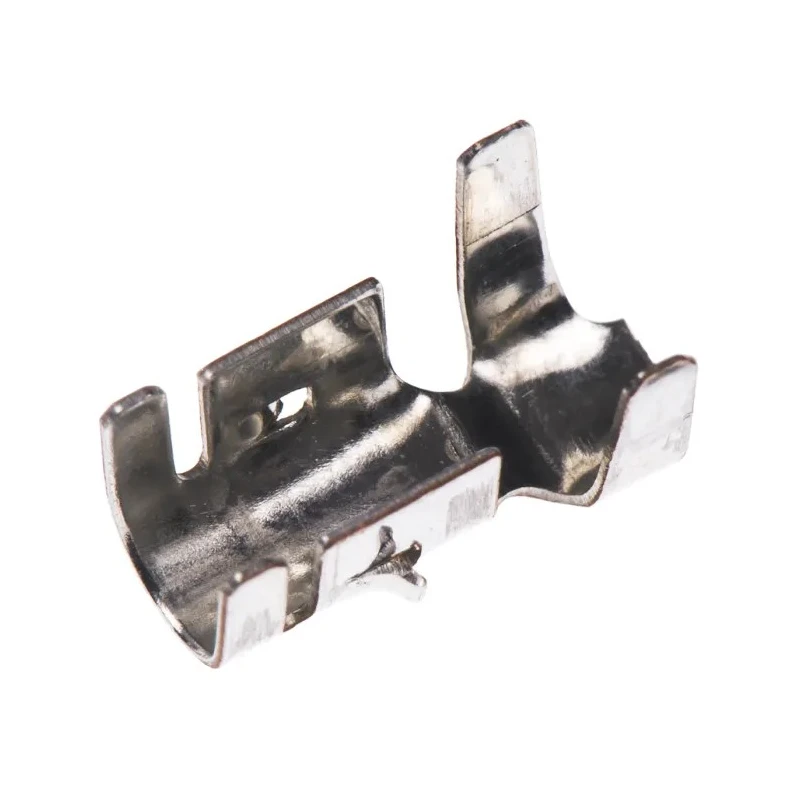

TE Connectivity AMP-IN Series Female Crimp Terminal 20A, Tin Plated Phosphor Bronze Contact, 18 AWG Min 14 AWG 3-770060-1

TE Connectivity 3-770060-1 Female Crimp Terminal AMP-IN Series is a high-quality crimp contact designed specifically for PCB applications requiring reliable and secure wire connections. Supporting 20A current load, these terminals efficiently handle circuit power transmission in electronic assemblies.

These miniature terminals feature phosphor bronze contacts with tin plating to ensure excellent conductivity and corrosion resistance. The terminals support a wire size range from 18 AWG minimum to 14 AWG maximum, accommodating a variety of hookup conductor sizes. With a length of 4.57 mm, they maintain a low profile on PCBs, conserving board space and enabling compact designs.

The crimp termination type provides mechanical holding strength and enhances solder joint reliability, eliminating the need for costly manual wire preparation. The terminals securely hold wires in place with a locking lance and offer insulation support for strain relief, protecting solder joints during assembly and operation.

Operating temperature spans from -55°C to 85°C, making these terminals suitable for demanding industrial and commercial electronic environments. Their very low maximum contact resistance of 2 milliohms guarantees minimal voltage drop and efficient electrical performance.

These crimp terminals are ideal for use in industrial automation systems, electronic component assemblies, and PCB connectors where precise, durable wire-to-board connections are required.

The terminals have a minimum wire size of 18 AWG and a maximum wire size of 14 AWG. Constructed with phosphor bronze contact material for durability and reliability. Contact plating is tin for improved conductivity and corrosion resistance.

Terminals measure 4.57 mm in length with a low-profile design for compact PCB mounting. Operates effectively from -55°C to 85°C to accommodate various environmental conditions. The crimp termination type assures secure mechanical retention and excellent solder flow.

Rated for a maximum contact resistance of 2 milliohms ensuring high-quality electrical connections. Manufactured in China, suitable for industrial and electronic connector applications. Explore more products in the Crimp Contacts category at EnvMart for dependable electronic connection solutions.
