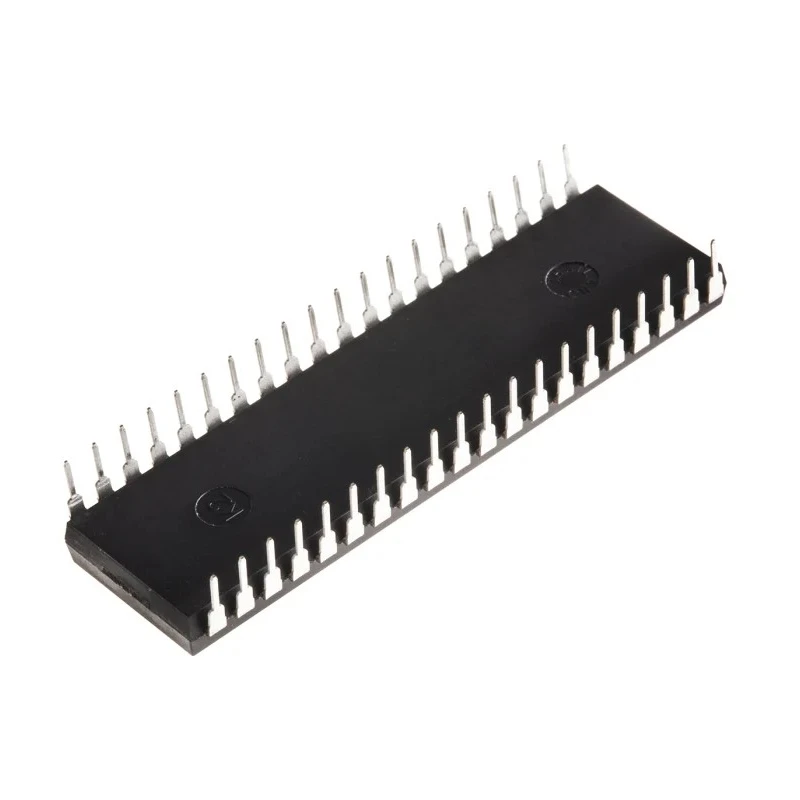

Microchip 8 bit PIC18F Microcontroller 40 MHz, 1.024 kB Program Memory, 64 kB FLASH, 40-Pin PDIP PIC18F4680-I/P

Microchip PIC18F4680-I/P is a robust 8-bit PIC microcontroller featuring a high-speed 40 MHz clock frequency and RISC architecture. It includes a substantial 1.024 kB program memory along with 64 kB FLASH memory, optimized for complex embedded control applications.

This device integrates a 40-pin PDIP package which supports through-hole mounting, suitable for prototyping and production environments requiring reliable electrical connections. It offers an SPI interface type for communication with other peripherals within industrial, consumer electronics, automotive, and embedded system contexts.

Providing 33 programmable input/output pins, this microcontroller supports multiple applications requiring a broad interface range. The onboard RAM of 3.33 kB and expanded memory of 1.02 kB facilitate efficient data handling in high-performance designs.

The microcontroller operates over a wide voltage range from 2 V to 5.5 V, delivering a maximum power dissipation of 1 watt. It is rated to function effectively in temperatures as low as -40°C to as high as 85°C, ensuring durability in harsh industrial or field environments.

Additional features include 4 timers and 2 analogue comparators which enhance signal measurement and time management capabilities within embedded systems. Its 11 ADC channels with 10-bit resolution provide precise analog input processing.

The product dimensions, with a length of 53.21 mm, width of 14.73 mm, and height of 4.95 mm, make it a compact and versatile device easy to integrate in various electronic assemblies.

Widely used across applications such as industrial automation, consumer electronics, automotive electronics, and embedded system development, this microcontroller offers both performance and flexibility.

Available as a new product, this model PIC18F4680-I/P from Microchip delivers reliable operation and robust memory management for diverse microcontroller projects. Features an 8-bit PIC device core with RISC architecture for efficient processing.

Supports SPI interface type enabling versatile peripheral connectivity. Equipped with 3.33 kB RAM and 1.02 kB expanded memory for application data. Operates over a voltage range of 2 V to 5.5 V with a maximum power dissipation of 1 W.

Includes 33 programmable I/Os and 11 analog-to-digital converters (ADC) with 10-bit resolution. Designed to operate reliably within a temperature range of -40°C to 85°C. Comes with 4 timers and 2 analogue comparators integrated on-chip.

Package dimensions are approximately 53.21 mm length, 14.73 mm width, and 4.95 mm height. Browse more Microchip Microcontrollers and related electronics components at EnvMart for your embedded system development needs.
