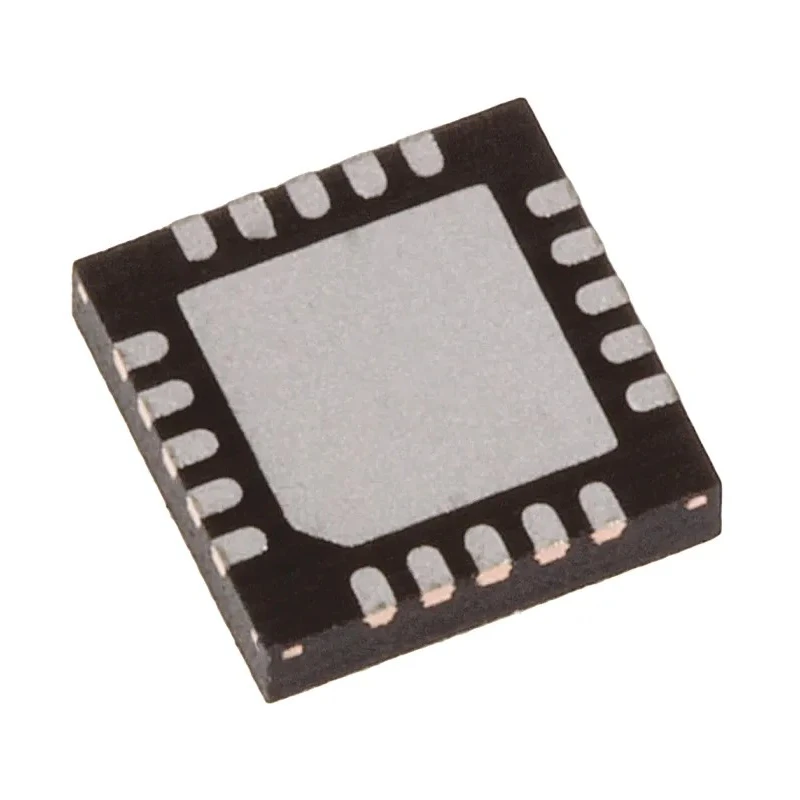

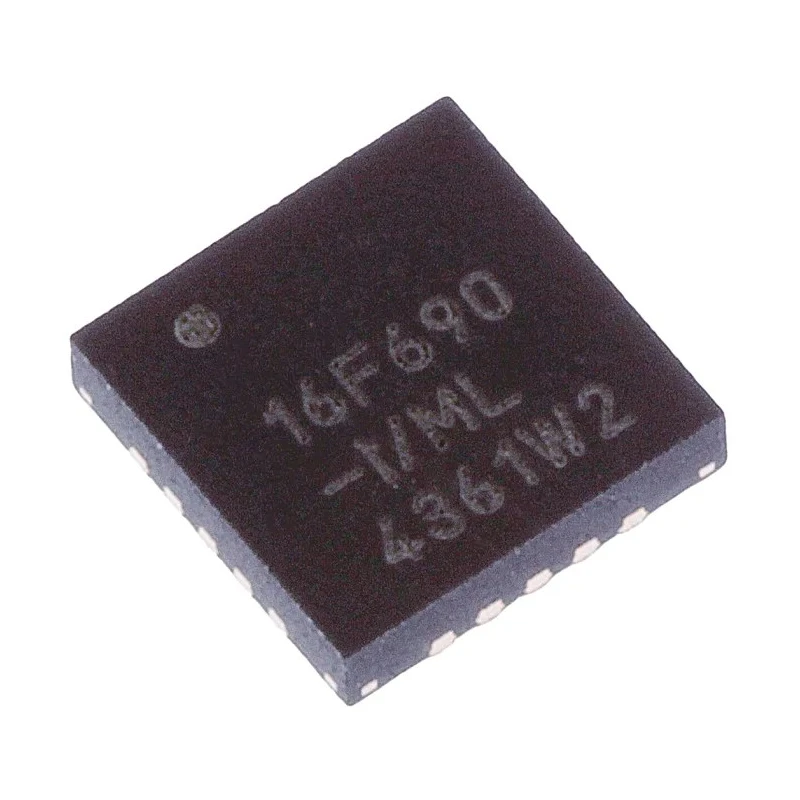

Microchip 8 bit PIC16F Microcontroller 7kB FLASH 20 MHz 20-Pin QFN PIC16F690-I/ML

Microchip PIC16F690-I/ML is an 8-bit PIC microcontroller that belongs to the PIC16F series, featuring 7kB of FLASH program memory and operating at up to 20 MHz CPU speed. Packaged in a surface mount 20-pin QFN form factor, this device is suitable for compact embedded system designs.

This microcontroller integrates a PIC core with a RISC instruction set comprising 35 instructions and an 8-level hardware stack. Its power supply voltage ranges from 1.8V to 5.5V, with a maximum power dissipation of 800mW, enabling use in low-power applications.

Memory includes 7kB FLASH for program code, 256 bits of RAM for data, and onboard Data EEPROM. The device supports 36 programmable I/Os with multiple peripherals such as 12-channel 10-bit ADC, one 5-bit DAC, two analog comparators, and three timers (one 16-bit and two 8-bit timers).

Communication interfaces are enhanced with EUSART and Synchronous Serial Port (SSP) modules, providing flexible serial communication options. Security and reliability features include Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), and Watchdog Timer (WDT), ensuring robust operation in harsh environments.

This microcontroller is designed for use in industrial, consumer, and automotive-related embedded systems where compact size and low power are critical. It offers a balanced feature set suited for control, sensing, and communication tasks in performance-sensitive applications.

Package dimensions are 4mm width, 4mm length, and 950μm height for space-constrained footprint applications. The device operates reliably between -40°C and 85°C ambient temperature range.

Choose the Microchip PIC16F690-I/ML for efficient embedded computing with versatile peripheral integration. Explore related Microchip Microcontrollers at EnvMart for comprehensive embedded solutions.
