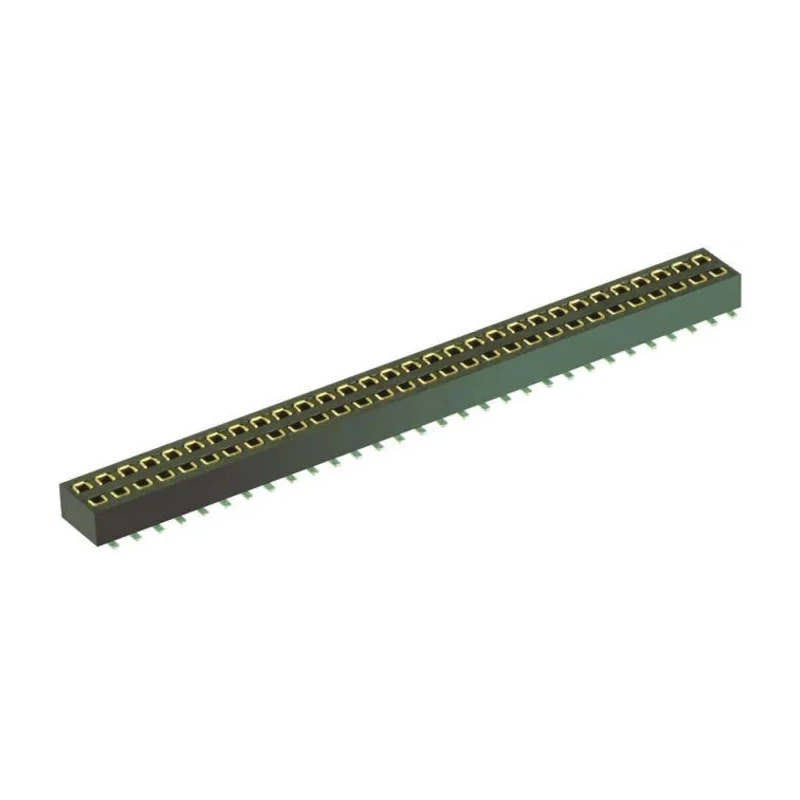

HARWIN M50 Series Straight Surface PCB Socket, 50-Contact, 2 Row, 1.27 mm Pitch, 12A, Nylon Housing, Gold Plated M50-3152542

HARWIN M50-3152542 is a high-quality straight surface PCB socket designed for board-to-board connections. This solder termination socket features a 50-contact, 2-row configuration with a 1.27 mm pitch, crafted from durable nylon housing combined with bronze female contacts plated in gold for corrosion resistance and excellent electrical performance.

Operating at up to 1kV and carrying currents up to 12A, it supports challenging electronic, industrial, and manufacturing environments. The connector ensures secure solder mountings via surface mounting technology with a straight orientation, suitable for reliable PCB socket strip applications.

The operating temperature range from -40°C to 105°C accommodates various conditions, making it versatile for commercial and industrial assembly requirements. It belongs to the M50 series, known for compatibility with unshrouded pin headers and various socket header models to enable integrative connector system solutions.

Constructed to meet precise technical demands, this socket does not carry formal standards or approvals but excels in performance and durability for electronic component integration. It is packaged ready for insertion into machinery, aiding efficiency in production setups and electronic assembly lines.

This PCB socket has 50 female contacts in a 2-row configuration. It features a 1.27 mm pitch with a nylon housing for durable insulation. Rated for 12A current and capable of operating at voltages up to 1kV. Contacts are bronze material plated with gold for reliable connectivity.

Termination type is solder, ensuring secure PCB mounting. Designed for surface mounting with a straight orientation. Operates reliably between -40°C and 105°C temperature range. Part of the M50 series designed for shrouded socket and pin header connections.

Ideal for industrial and electronic manufacturing applications requiring high-performance board connectors. No industry certifications or approvals are listed for this model.

This M50 series PCB Socket fits into a broad range of industrial, electronics manufacturing, and assembly use cases that require durable and accurate PCB connectors. EnvMart offers this product for sophisticated PCB connection needs, designed to meet high standards of electrical contact quality and mechanical reliability.
