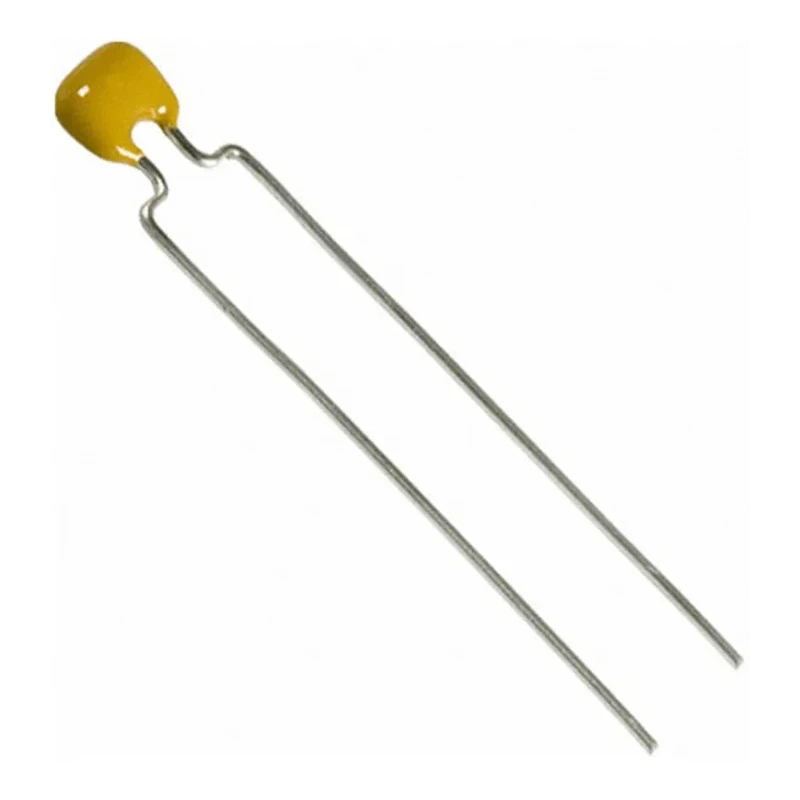

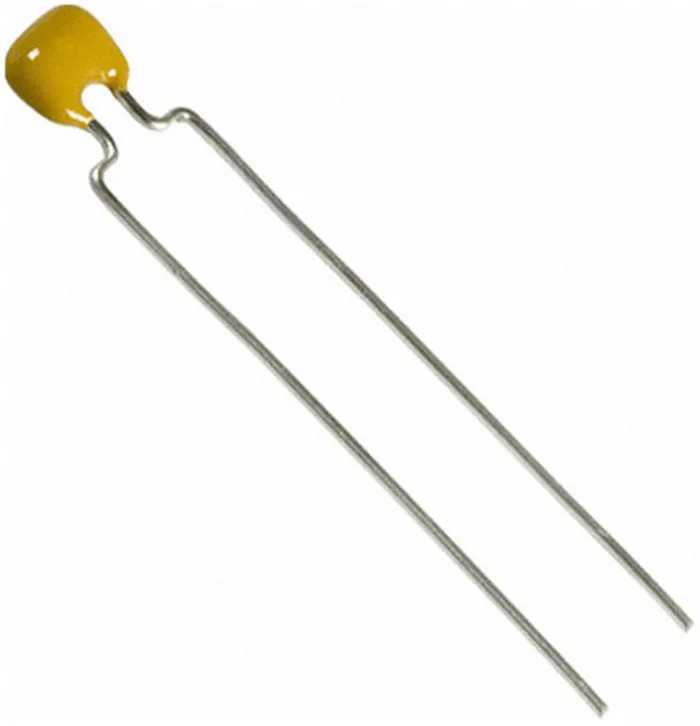

KYOCERA AVX 22 pF Multilayer Ceramic Capacitor, 100V DC, ±5 % Tolerance, Through Hole Radial Mount SR211A220JAR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V dc |
| Brand | KYOCERA AVX |
| Height | 5.08mm |
| Length | 5.08mm |
| Model | SR211A220JAR |
| Packaging | Tape & Reel |
| Width | 3.18mm |
| Mount Type | Through Hole |
| Series | SR |
| Termination Type | Radial |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 22pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Lead Diameter | 0.51mm |
| Dielectric | C0G |
| Lead Spacing | 5mm |
Key Features
- This capacitor features a stable C0G dielectric for reliable performance.
- Rated for a maximum operating temperature of 125°C and minimum of -55°C.
- Designed with a radial termination and 5 mm lead spacing for easy through-hole mounting.
- Its tape and reel packaging ensures protection and suitability for automated assembly.
- Compact dimensions of 5.08 mm length, 3.18 mm width, and 5.08 mm height.
- Capable of withstanding thermal shock and vibration conditions typical in electronic assemblies.
- RoHS compliant, ensuring environmental and safety standards are met.
- Applications include bypass, decoupling, filtering, sample and hold, and timing circuits.
Product Description
KYOCERA AVX SR211A220JAR multilayer ceramic capacitor offers a precise capacitance of 22 pF with a 100V DC voltage rating and ±5 % tolerance, designed for through-hole radial mounting applications. The C0G dielectric provides excellent stability and low losses.
This capacitor is built to withstand a broad temperature range from -55°C to 125°C, making it suitable for industrial, commercial, and electronic manufacturing uses. The radial lead configuration with 5 mm lead spacing and 0.51 mm lead diameter supports robust mechanical connections and reliable soldering processes, including wave soldering.
The compact form factor (5.08 mm length x 3.18 mm width x 5.08 mm height) facilitates space-saving designs in diverse electronic assemblies. The device is packaged in tape and reel format, optimizing it for automated pick-and-place assembly lines.
Stable C0G dielectric for consistent capacitance. Operating temperature range: -55°C to 125°C. Through hole radial termination with 5 mm lead spacing. Tape and reel packaging suitable for automated assembly. Compact dimensions for minimized board space.
RoHS compliant ensuring environmental safety standards. Applications include bypass, filtering, and timing circuits. Suitable for various industrial electronics and manufacturing sectors. Explore the full range of KYOCERA AVX Multilayer Ceramic Capacitors available in EnvMart for advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 22 pF.
It is rated for a maximum voltage of 100V DC.
It features a stable C0G dielectric, which provides excellent stability and low losses.
The operating temperature range is from -55°C to 125°C.
The capacitor has compact dimensions of 5.08 mm in length, 3.18 mm in width, and 5.08 mm in height.
It is packaged in tape and reel format, making it suitable for automated assembly processes.
This model is designed for through-hole radial mounting.
The lead spacing is 5 mm, with a lead diameter of 0.51 mm.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications such as bypass, decoupling, filtering, sample and hold, and timing circuits.
This capacitor belongs to the SR series.
The country of origin for this capacitor is India.
