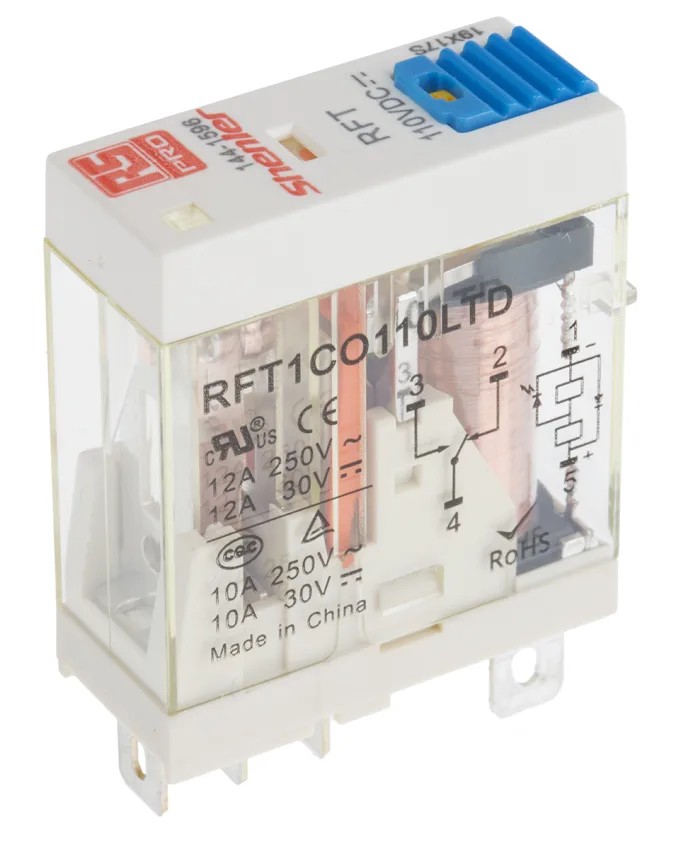

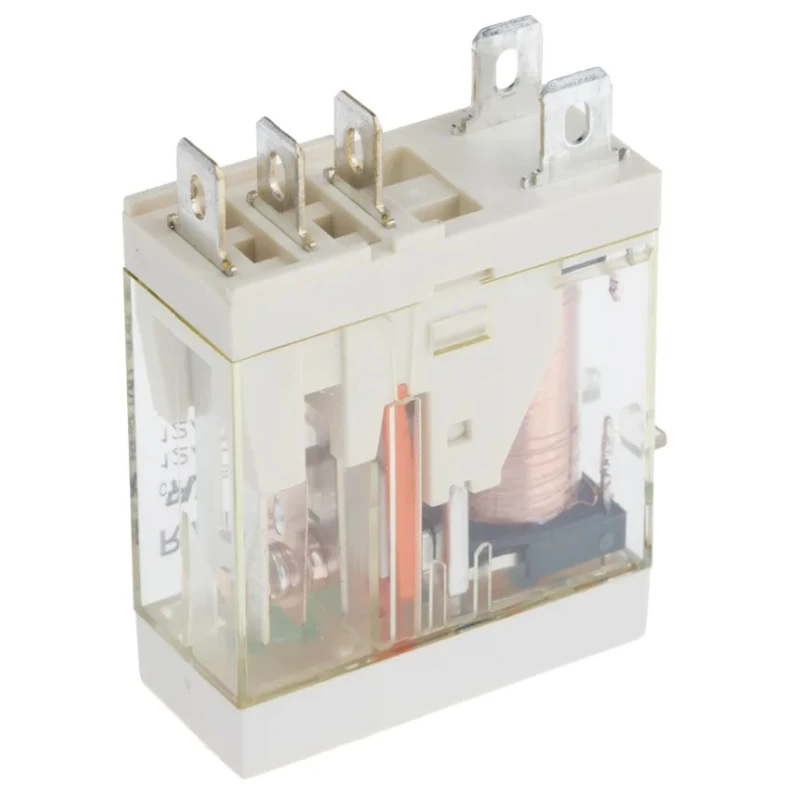

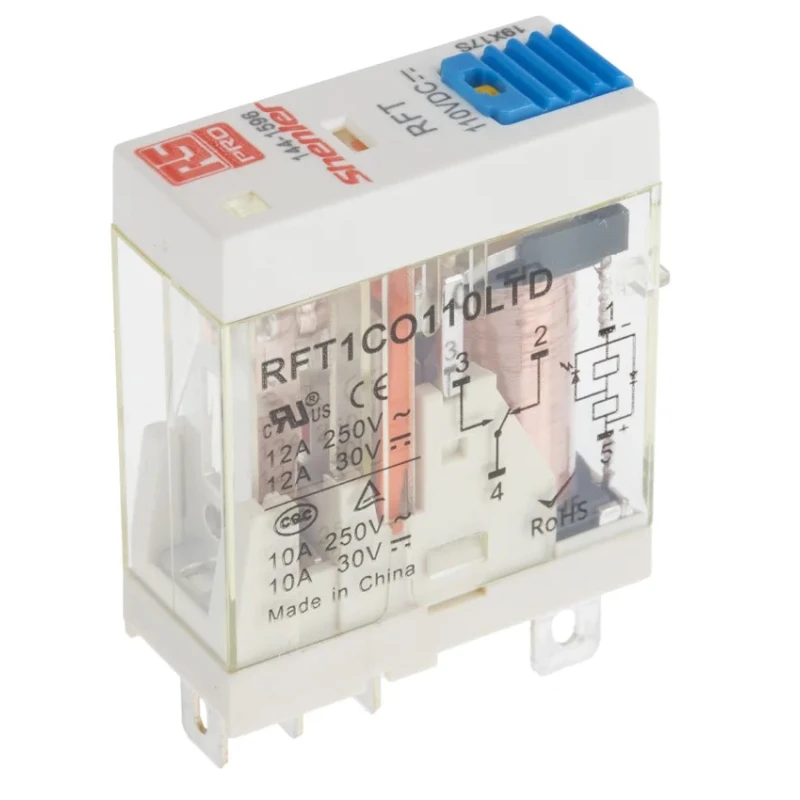

RS PRO Power Relay, 110V dc Coil, 12A Switching Current, SPDT 144-1596
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1596 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 22.8kΩ |
| Coil Voltage | 110V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Single pole double throw (SPDT) contact configuration for versatile switching.
- Coil voltage rating of 110V dc suitable for various control systems.
- Compact dimensions with length 29mm, width 12.6mm, and height 28mm enable space-saving installations.
- High switching power capacity of 3kVA supporting demanding electrical loads.
- Silver alloy contact material with low contact resistance of 50mΩ for dependable conduction.
- Operating temperature range from -40°C to 55°C ensures durability in harsh environments.
- Coil resistance of 22.8kΩ with coil power consumption of 530mW for energy-efficient operation.
- RoHS compliant design adhering to environmental safety standards.
Product Description
RS PRO 144-1596 Power Relay is engineered for high reliability in industrial automation, HVAC, and machine building applications. Featuring a single pole double throw (SPDT) contact configuration, it efficiently switches currents up to 12A with a coil voltage of 110V dc. The compact design with precise dimensions (29mm length, 12.6mm width, 28mm height) facilitates installation in tight electrical enclosures.
This relay offers a high switching power of 3kVA and can handle AC voltages up to 250V and DC voltages up to 30V, making it ideal for diverse control circuits. The silver alloy contacts ensure low contact resistance (50mΩ), enhancing electrical performance and longevity. Designed to operate reliably in temperatures ranging from -40°C to 55°C, it withstands demanding industrial conditions.
The coil features a resistance of 22.8kΩ with a low power consumption of 530mW, optimizing energy efficiency. Compliant with RoHS standards, this relay meets environmental and safety requirements.
Its slim and compact form factor supports easy mounting on PCB with pins and its high-capacity design ensures dependable operation. RS PRO's 144-1596 model is a trusted choice for industrial relay applications requiring precise and robust switching.
Set includes the RS PRO 144-1596 Power Relay for immediate integration into electronic control systems. This product is made in China, backed by RS PRO’s commitment to quality and industry standards.
Explore more high-quality power relays and related electrical components on EnvMart for efficient industrial and commercial applications. Single pole double throw (SPDT) contact configuration for versatile switching. Coil voltage rating of 110V dc suitable for various control systems.
Compact dimensions enabling space-saving installations. High switching power capacity of 3kVA supporting demanding electrical loads. Silver alloy contact material with low contact resistance. Operating temperature range from -40°C to 55°C for durability.
Energy-efficient coil power consumption of 530mW. RoHS compliant design for environmental safety. Browse the comprehensive selection of Power Relays, contactors, and automation components at EnvMart for reliable electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 12A.
This model has a coil voltage rating of 110V dc.
The dimensions of this power relay are 29mm in length, 12.6mm in width, and 28mm in height.
This relay features a single pole double throw (SPDT) contact configuration.
The operating temperature range for this power relay is from -40°C to 55°C.
The contact material used in this relay is silver alloy, which provides low contact resistance.
The coil resistance of this model is 22.8kΩ.
The coil power consumption is 530mW, making it energy efficient.
This relay can handle a maximum switching voltage of 250V AC and 30V DC.
This relay is designed for PCB mounting with pins, facilitating easy installation.
This power relay is compliant with RoHS standards for environmental safety.
This model is engineered for industrial automation, HVAC, and machine building applications.
