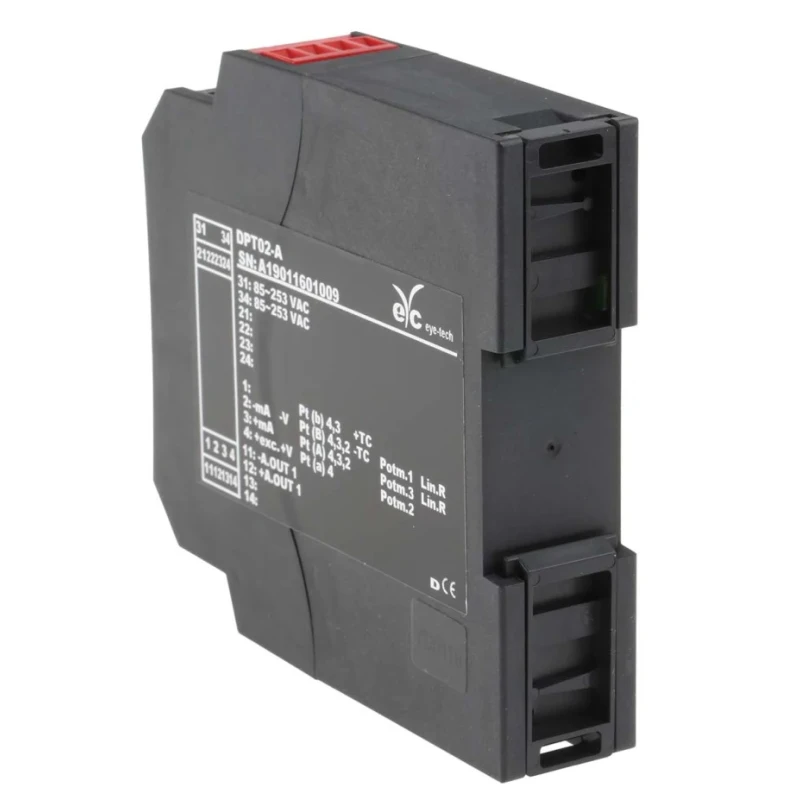

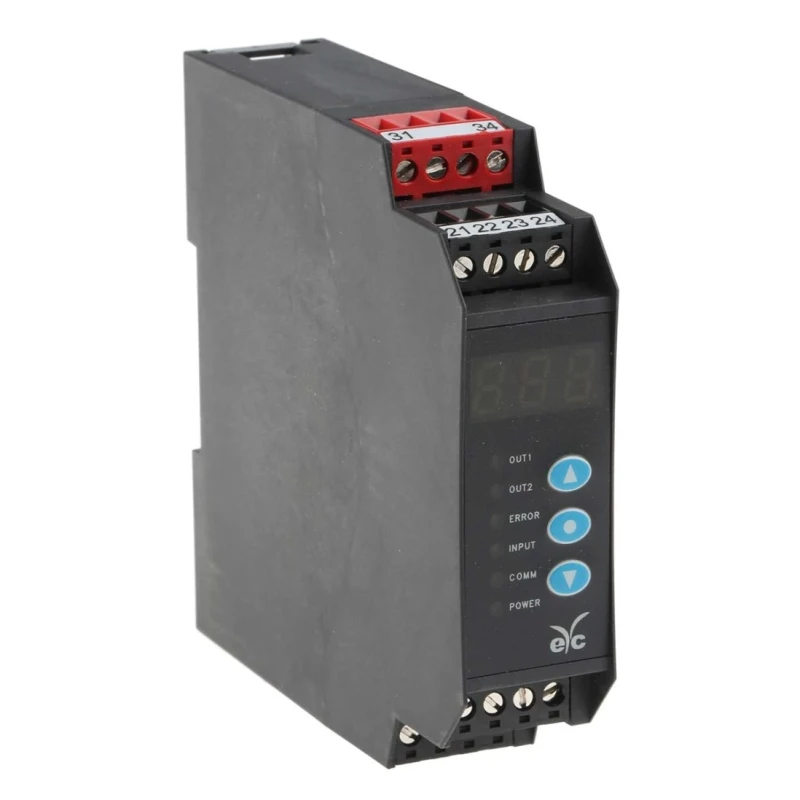

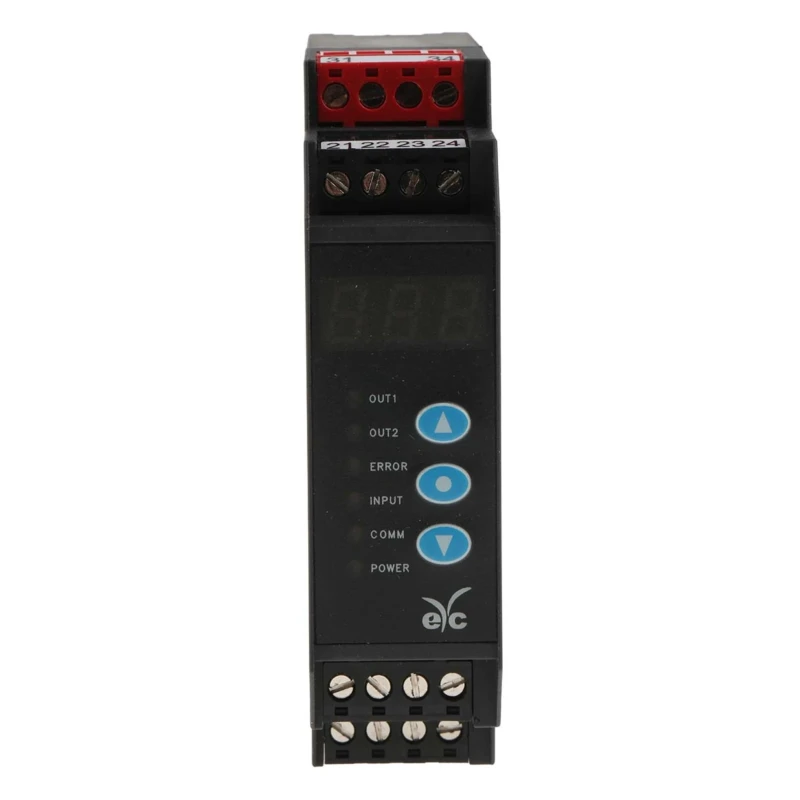

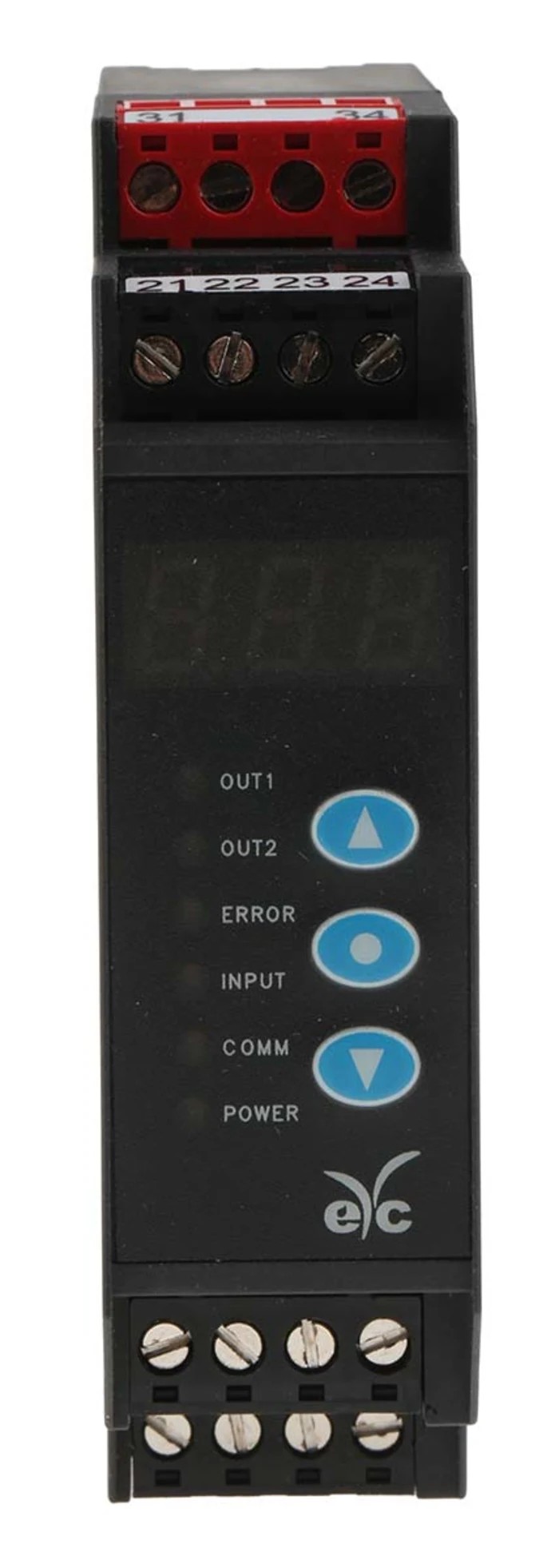

EYC Signal Conditioner Universal Input Current/Voltage Output 253V AC 85V AC Supply DPT02

Free Delivery in India | Lowest Global Shipping Charges

EYC Signal Conditioner Universal Input Current/Voltage Output 253V AC 85V AC Supply DPT02



Category Signal Conditioner Brand EYC Condition New

Specifications

Country of Origin	Taiwan
Voltage	Output, 253V ac, 85 V ac Supply RS Stock No
Brand	EYC
Model	DPT02
IP Rating	IP20
Mount Type	DIN Rail
Series	EYC DPT02
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Terminal type	Screw
Number Of Channels	2
Output Range	0→20 mA, 4→20 mA, 20→0 mA, 20→4 mA, 0 → 1 V, 0 → 10 V, 0 → 5 V, 0.2 → 1 V, 1 → 0 V, 1 → 0.2 V, 1 → 5 V, 10 → 0 V, 10 → 2 V, 2 → 10 V, 5→ 0 V, 5 → 1 V
Input Range	0 → 1 V, 0 → 10 kΩ, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 0.2 → 1 V, 1 → 5 V, 10 → 100 kΩ, 2 → 10 V, 4 → 20 mA
Supply Voltage	253, 85V ac
Input Signal Type	Universal
Output Signal Type	Current/Voltage

Key Features

Equipped with a 3-digit red LED display for clear output reading.
Supports a wide range of input signals from voltage, current, to resistance.
Provides multiple output signal ranges with current and voltage outputs.
Protective ABS housing rated UL94V-0 ensures robust durability.
DIN rail mounting enables easy and secure installation.
Features polarity and over-voltage protection for safe operation.
Operating temperature range from -10°C to 60°C suitable for diverse environments.
IP20 rated ingress protection for indoor use.

Product Description

The EYC DPT02 series signal conditioner is a digital universal input converter designed to measure various input signals and convert them into precise analogue current or voltage outputs. This model supports a broad spectrum of input signals including voltage ranges from 0 to 10 V, current ranges from 0 to 20 mA, and resistive values among others, enabling compatibility across many industrial applications.

Featuring a 3-digit red LED display and simple keypad programming, the DPT02 allows easy output setting and scaling. Powered by a supply voltage of 85 V AC up to 253 V AC, it ensures stable and reliable operation in industrial environments.

The unit is built into a robust ABS housing rated for flame retardance (UL94V-0), guaranteeing safety and durability. Its IP20 rating and operating temperature range of -10°C to 60°C facilitate indoor use in various environmental conditions.

The DIN rail mount design simplifies installation within control panels. Screw type terminals ensure firm electrical connections while the device also incorporates polarity and over-voltage protections to safeguard sensitive instrumentation.

Compliance with multiple international standards such as IEC 61000-4 series and CE certification underscores its quality and electromagnetic compatibility. Equipped with a 3-digit red LED display for monitoring output. Wide universal input ranges covering voltage, current, and resistance.

Multiple current and voltage output options for versatile signal conditioning. Robust ABS housing with UL94V-0 flame retardant rating. DIN rail mounting for easy installation in control panels. Polarity and over-voltage protection for enhanced operational safety.

Suitable operating temperatures from -10°C to 60°C. IP20 protection class for indoor utilization. Screw terminal type for secure wiring connections. Conforms to key international electrical and safety standards.

This signal conditioner is suitable for use in industrial automation, electrical control systems, manufacturing instrumentation, and laboratory environments requiring precise analog signal conversion and conditioning. The product originates from Taiwan, Province Of China, ensuring high manufacturing standards.
