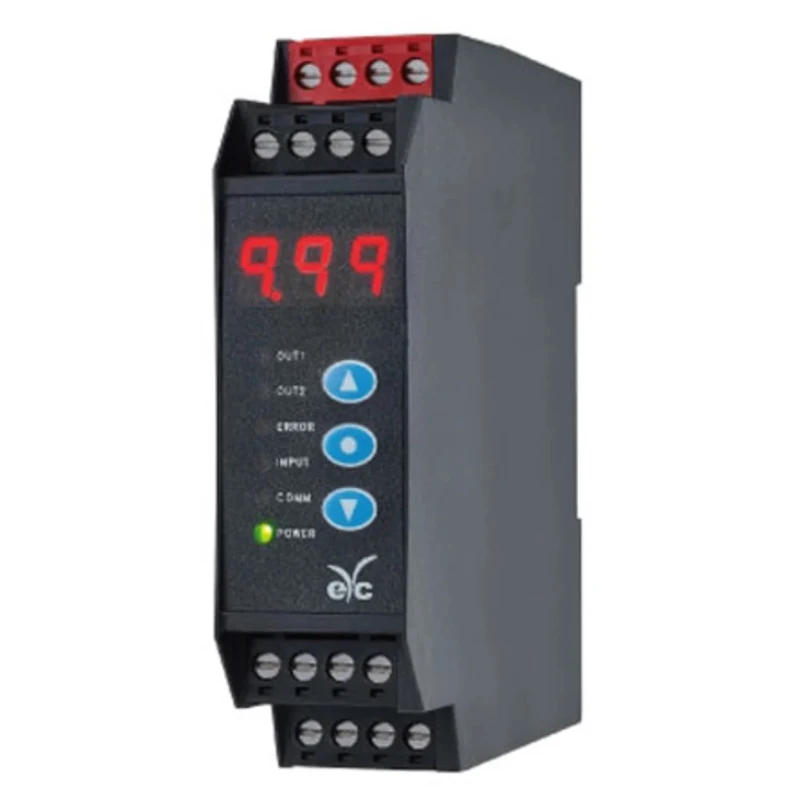

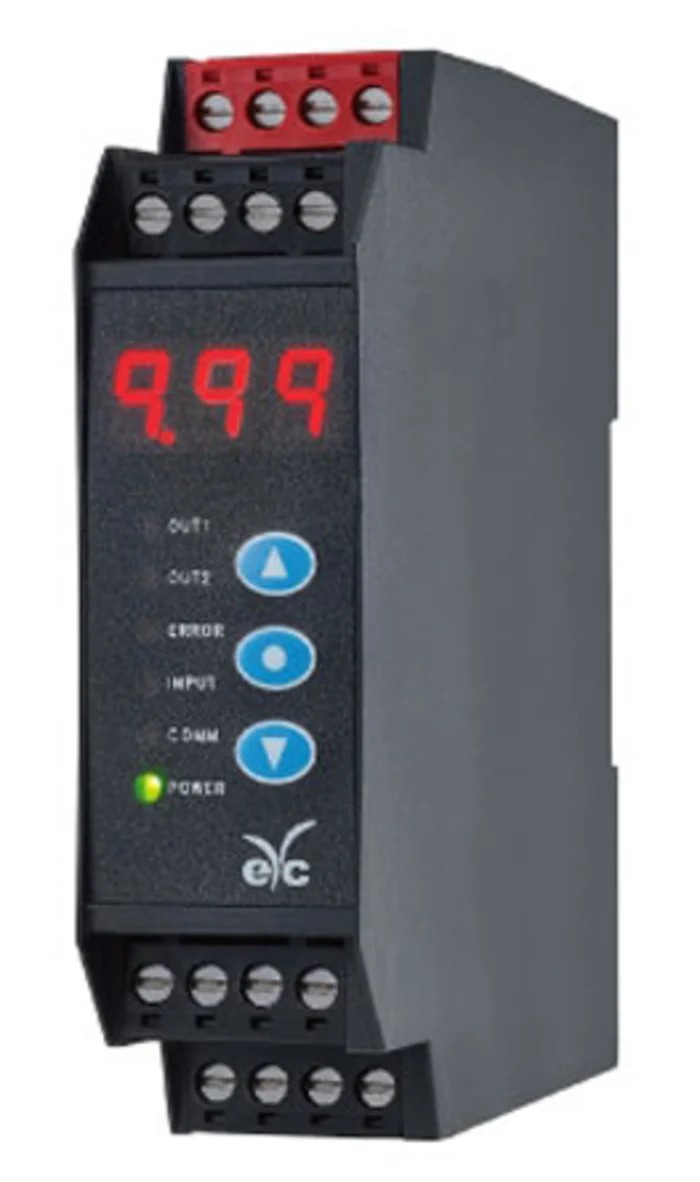

EYC DPT02 Series Signal Conditioner Universal Input 253V AC, 85V AC Supply DPT02

Free Delivery in India | Lowest Global Shipping Charges

EYC DPT02 Series Signal Conditioner Universal Input 253V AC, 85V AC Supply DPT02



Category Signal Conditioner Brand EYC Condition New

Specifications

Country of Origin	Taiwan
Brand	EYC
Model	DPT02
IP Rating	IP20
Mount Type	DIN Rail
Series	EYC DPT02
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Terminal type	Screw
Output Range	0 → 1 V, 0 → 10 V, 0 → 5 V, 0.2 → 1 V, 1 → 0 V, 1 → 0.2 V, 1 → 5 V, 10 → 0 V, 10 → 2 V, 2 → 10 V, 5 → 0 V, 5 → 1 V, RS-485
Input Range	0 → 1 V, 0 → 10 kΩ, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 0.2 → 1 V, 1 → 5 V, 10 → 100 kΩ, 2 → 10 V, 4 → 20 mA
Supply Voltage	253, 85V ac
Input Signal Type	Universal
Standards/Approvals	OFTEL GA5 approved
Signal Conditioner Type	Analogue

Key Features

Features a universal input compatible with multiple signal ranges.
Supports input ranges from 0 to 1 V, 0 to 10 kΩ, 0 to 10 V, to 4 to 20 mA among others.
Provides flexible output ranges including 0 to 10 V, 0 to 5 V, and RS-485 communication.
Equipped with a 3-digit red LED display and keypad for easy programming.
Meets OFTEL GA5 approval standards for quality assurance.
Designed for DIN Rail mounting with ABS housing rated UL94V-0 for flame resistance.
Operates reliably within a temperature range of -10°C to 60°C.
Includes polarity and over-voltage protection to enhance safety.

Product Description

The EYC DPT02 Series Signal Conditioner (Model DPT02) is a versatile analogue signal converter designed for industrial and automation applications. It accommodates a wide range of input signals including voltage, current, and resistance, converting them into precise analogue outputs suitable for control systems.

Equipped with an 85 V AC to 253 V AC supply voltage range, this signal conditioner ensures stable operation under varying power conditions. The unit features a 3-digit red LED display and an intuitive keypad that facilitate straightforward programming and calibration of output signals to match system requirements.

Its compact ABS housing complies with UL94V-0 flame retardancy standards, making it safe for electrical installations. The DIN Rail mounting format simplifies integration into control panels and industrial racks. Additional protective features include polarity and over-voltage protection to safeguard connected devices.

Rated IP20, it offers protection against solid objects larger than 12 mm but is not waterproof, thus suitable for indoor environments. Operating temperature spans from -10°C up to 60°C, accommodating typical industrial ambient conditions.

This signal conditioner meets the OFTEL GA5 approval standards, assuring compliance with regulatory requirements. Its screw terminal design allows reliable and secure wiring connections.

Universal input supports signals including 0 → 1 V, 0 → 10 kΩ, 0 → 10 V, 0 → 20 mA, and more. Output options include analogue voltages from 0 to 1 V, 0 to 10 V, 0 to 5 V, and RS-485 communication. Built-in 3-digit LED display for real-time output monitoring and programming.

Robust ABS housing rated UL94V-0 for flame resistance. DIN Rail mount for easy panel installation. Wide operating temperature range of -10°C to 60°C. Polarity and over-voltage protection for increased device safety. IP20 rated for protection against solid ingress.

Compliant with OFTEL GA5 standards ensuring high quality.

This Signal Conditioner is ideal for industrial automation, process control, electrical control panels, and instrumentation systems requiring reliable signal conversion and conditioning.
