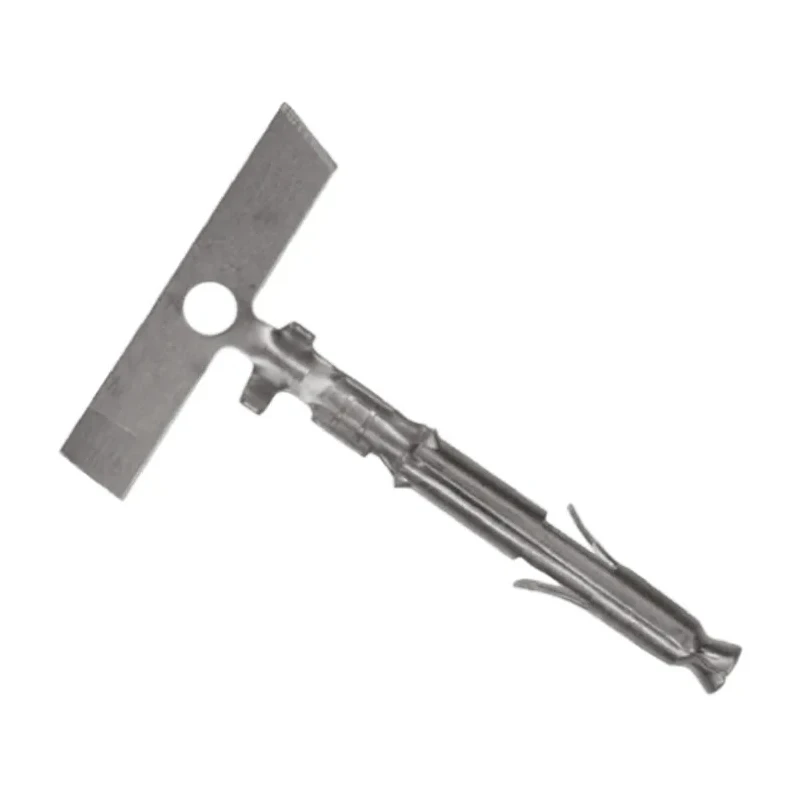

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max, 11.2A 1-770988-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max, 11.2A 1-770988-0

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max, 11.2A 1-770988-0
Brand: TE Connectivity
SKU: 209498
Price: 0.66 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	11.2A
Gender	Female
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.9mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

Designed for use with Mini-Universal MATE-N-LOK connector housings to ensure optimal connectivity.
Manufactured with brass contact material offering durability and excellent conductivity.
Gold-plated contacts reduce corrosion and maintain signal integrity.
Supports a maximum operating temperature of 105°C and operates reliably down to -55°C.
Termination is by crimp method ensuring secure and reliable wire connection.
Contact resistance is limited to a maximum of 20 milliohms for efficient performance.
Suitable for industrial and electronic manufacturing applications requiring robust wire-to-wire connections.
Component meets no specific approvals or standards but is built to high TE Connectivity quality for professional use.

Product Description

TE Connectivity 1-770988-0 Mini-Universal MATE-N-LOK series female crimp terminal is engineered to provide reliable electrical connection in industrial, electronic, aerospace, and manufacturing settings. This crimp terminal accommodates wire sizes ranging from 22 AWG (0.3mm²) up to 18 AWG (0.9mm²) and is rated for a continuous current of 11.2 amperes.

Constructed with high-grade brass contact material, the terminals offer excellent conductivity and mechanical strength. The gold plating on the contacts provides outstanding corrosion resistance and stable signal transmission, even in harsh environments. This product is designed for crimp termination, ensuring secure and low-resistance electrical connections when used with compatible Mini-Universal MATE-N-LOK connector housings.

Operating temperature ranges from a minimum of -55°C up to a maximum of 105°C, making the terminal suitable for a wide range of applications including automotive electronics, industrial machinery wiring, and circuit board connections. The maximum contact resistance is maintained at 20 milliohms, which ensures minimal energy loss and high efficiency in the electrical circuit.

Designed for use with Mini-Universal MATE-N-LOK connector housings to ensure precise mating and secure connections. Durable brass contact with gold plating for enhanced conductivity and corrosion resistance. Supports wire sizes from 22 AWG minimum to 18 AWG maximum.

Rated for 11.2 amperes current capability and high mechanical and thermal stability. Suitable for low resistance crimp termination ensuring consistent contact performance. Wide operating temperature range from -55°C to +105°C for harsh environments.

This connector component is ideal for applications in electronics manufacturing, HVAC control systems, automation and industrial controls, power distribution assemblies, and other electrical installations requiring dependable, high-quality female crimp terminals.

As a product made by TE Connectivity, it integrates into the larger Mini-Universal MATE-N-LOK Connector System known for precision, durability, and facilitating compact wiring assemblies. This product ships in a bag with components ready for efficient insertion into machinery or assembly lines.
