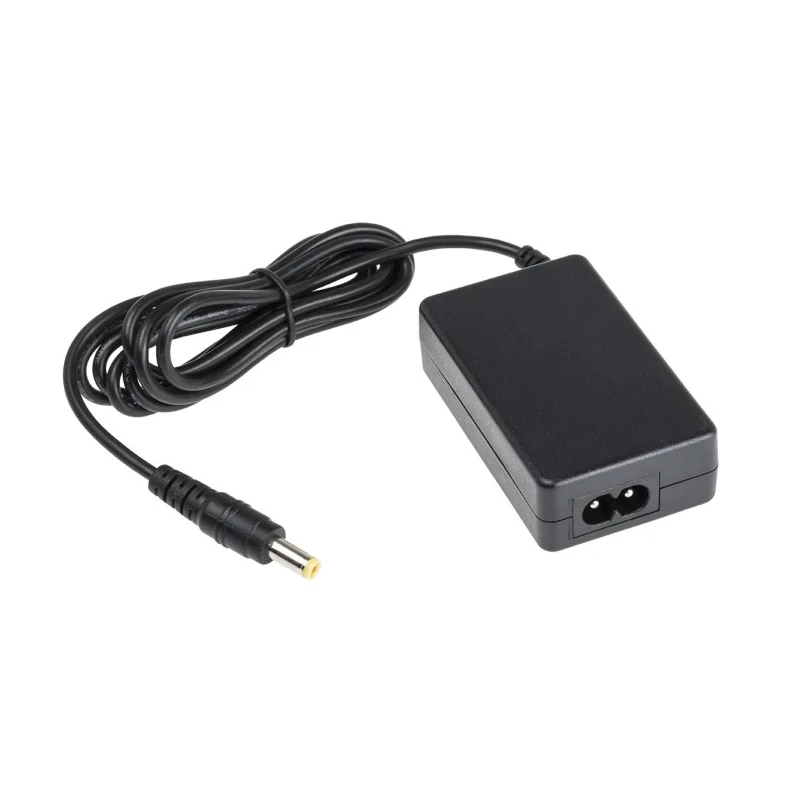

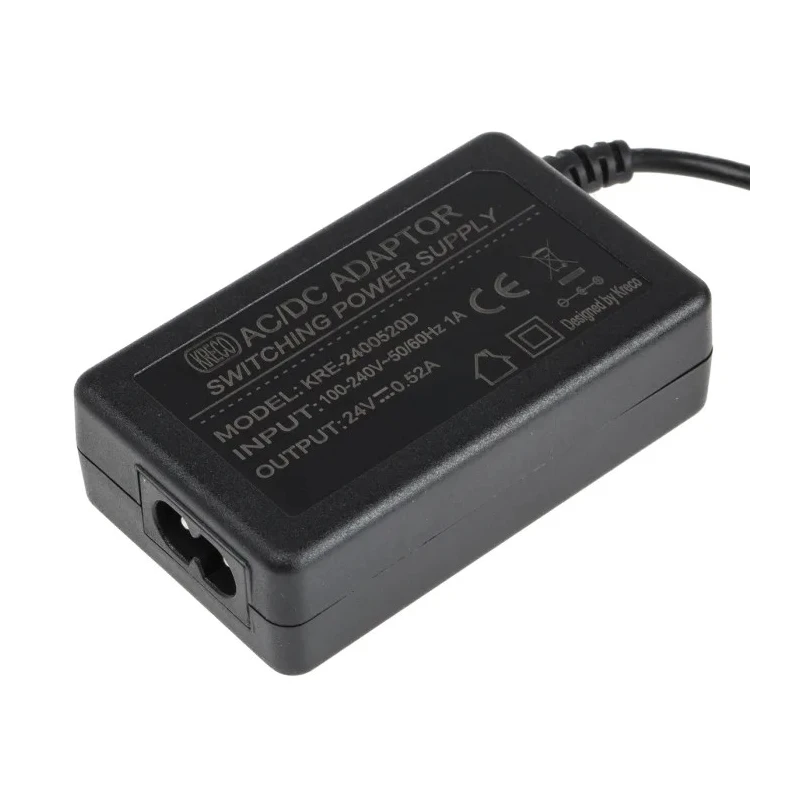

RS PRO AC/DC Adapter 24V DC Output 12.5W Regulated Power Supply with 2.1 x 5.5 x 12 mm Centre Connector Model 139-2342

Free Delivery in India | Lowest Global Shipping Charges

RS PRO AC/DC Adapter 24V DC Output 12.5W Regulated Power Supply with 2.1 x 5.5 x 12 mm Centre Connector Model 139-2342

Name: RS PRO AC/DC Adapter 24V DC Output 12.5W Regulated Power Supply with 2.1 x 5.5 x 12 mm Centre Connector Model 139-2342
Brand: RS PRO
SKU: 209059



Category AC/DC Adapter Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	12.5W
Efficiency	80.58%
Length	97mm
Model	139-2342
Depth	31mm
Cable Length	1.5m
Width	45mm
Wire Length	2.05m
Series	RS PRO
Maximum Operating Temperature	40°C
Sub Type	AC-DC Converter Power Supplies
Load Regulation	5 %
Minimum Operating Temperature	-20°C
Number of outputs	1
Ripple and Noise	100mV
DC Output Current	520mA
Maximum Input Voltage	240V ac
Output Voltage	24V dc
Regulation	±1% line, ±5% load
Standards/Approvals	IEC/EN 61558
Minimum Input Voltage	80V ac
Output Connector Type	2.1 x 5.5 x 12 mm, Centre
Input Connector Type	IEC 320-C8
Adapter Current	520mA
Energy Efficiency Level	V
Regulated/Unregulated	Regulated
High efficiency	consumption, meet US Energy start/CEC/AS/MEPS/EUP/ERP
DC output cord AWG	18AWG, normal
Efficiency level	VI
MEAN WELL AC/DC Adapter Type C 264V ac Output 620 mA, 24 V dcBrand	MEAN WELL

Key Features

This adapter provides a constant 24V DC output at 520mA current.
Features a 2.1 x 5.5 x 12 mm centre output connector for compatibility.
Includes a 1.5m cable length with IEC 320-C8 input connector type.
Operating temperature range is from -20°C to 40°C, suitable for diverse environments.
Constructed with high efficiency at 80.58%, fulfilling energy efficiency level V requirements.
Equipped with a fuse and LED indicator for safe and reliable operation.
Complies with IEC/EN 61558 safety and quality standards.
Regulated output with load regulation of 5% and ripple noise at 100mV ensures stable power supply.

Product Description

RS PRO 139-2342 AC/DC Adapter is a high-quality switched mode power supply delivering 12.5W power at 24V regulated DC output, making it ideal for powering various electronic equipment safely and efficiently.

This adapter utilizes a 2.1 x 5.5 x 12 mm centre connector and comes with a 1.5m cable equipped with an IEC 320-C8 input connector, ensuring convenient and secure connectivity.

Rated for a current output of 520mA, it supports low ripple noise of 100mV and tight voltage regulation of ±1% line and ±5% load, assuring excellent stability for sensitive electronic devices.

Operating reliably in a temperature range from -20°C up to 40°C, the adapter is suitable for demanding environments and applications. Its efficient design yields an energy efficiency level V rating, confirmed by an 80.58% efficiency that complies with standards like US Energy Star, CEC, AS, MEPS, EUP, and ERP.

The compact form factor with dimensions of 97mm (L) x 45mm (W) x 31mm (D) and lightweight construction make it ideal for desktop electronics or as a portable backup power source. Constant 24V DC output voltage at 520mA regulated current for stable performance.

High efficiency with a power rating of 12.5W reduces energy consumption. Safety features including fuse protection and LED indicator increase reliability. Compliance with IEC/EN 61558 standards ensures product safety and quality.

Low ripple and noise, maintaining signal integrity for sensitive devices. Suitable applications include printers, POS machines, consumer electronics, and more.

Manufactured in China under the RS PRO series, this adapter meets stringent industry standards and is designed for use in electronics, industrial control, and commercial equipment.
