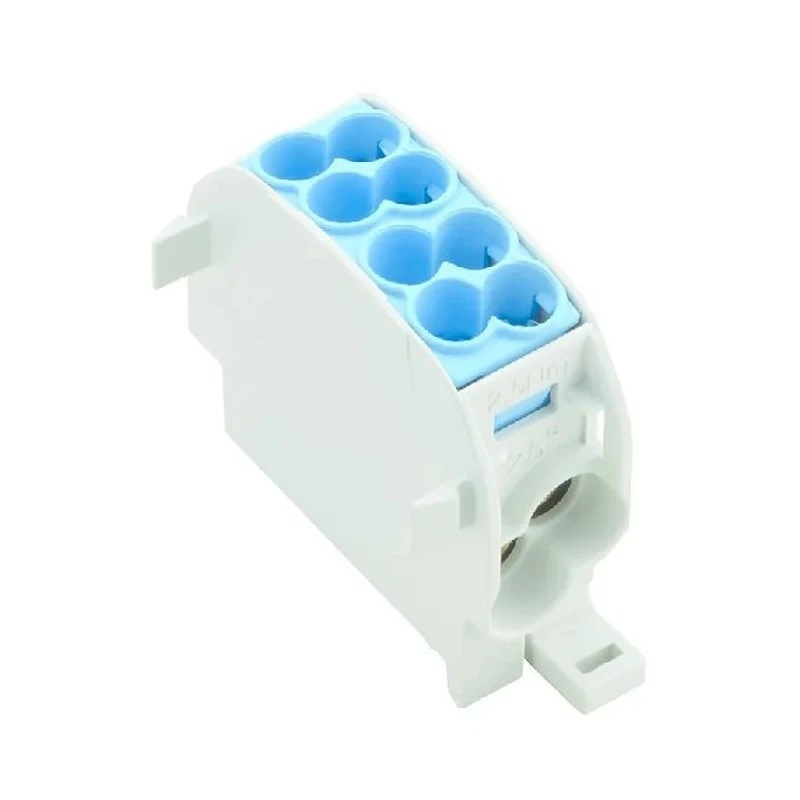

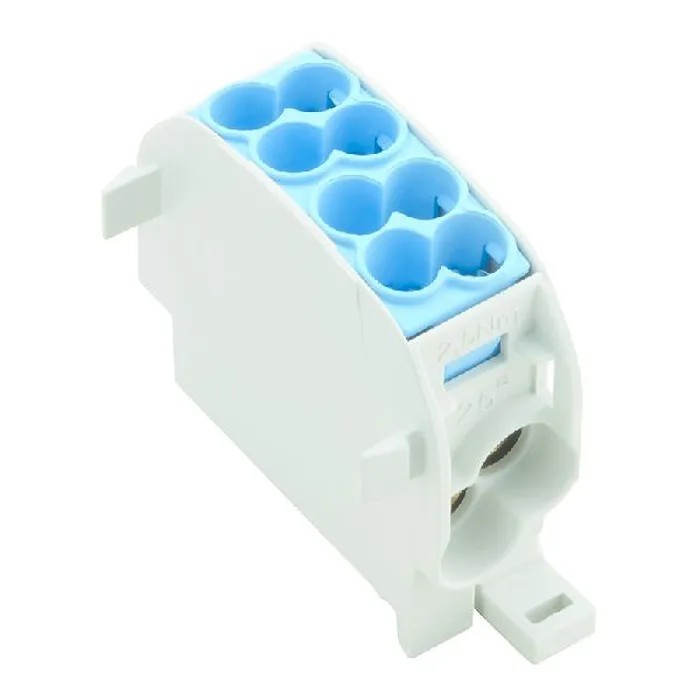

Weidmüller Distribution Block 2 Way 1 kV AC, 1 kV DC, 152A Current, Blue, Model 1560670000

Weidmüller 1560670000 Distribution Block 2 Way is a high-quality electrical power distribution component designed for industrial and commercial applications. Rated for 1 kV AC and 1 kV DC with a current capacity of 152A, it ensures reliable electrical connectivity and safety.

The distribution block features a durable blue Wemid housing with excellent insulation properties, allowing operation in temperatures ranging from -50°C to 130°C. This ensures stable performance even in harsh or fluctuating environmental conditions.

The product supports a range of wire sizes, from 14 to 4 AWG on the line side and 14 AWG on the load side, with secure screw-type terminations. Its compact size of 17.8 mm length, 49.3 mm width, and 55.7 mm height facilitates efficient mounting on standard symmetric “Top Hat” DIN rails (BS5584:1978, EN 50022).

Constructed with 10 mm electrolytic copper current bars, the distribution block can handle current loads that exceed the nominal rating, offering added safety margin and durability. The product is free from halogens and cadmium, self-extinguishing to UL94V-0 standards, and optimized for industrial performance.

This model belongs to the W series (WPD) distribution blocks by Weidmüller, providing versatile options for different wire sizes from 0.05 mm² to 300 mm². Its robust design and material selection make it ideal for electrical panels, distribution units, power supply systems, and industrial automation setups.

This distribution block features a blue Wemid housing for enhanced safety and durability. It supports wire sizes from 14 to 4 AWG on the line side and 14 AWG on the load side with screw terminations. Suitable for operating temperatures ranging from -50°C to 130°C ensuring reliable performance in diverse environments.

The compact dimensions of 17.8 mm length, 49.3 mm width, and 55.7 mm height allow easy integration on Top Hat DIN rails. Constructed with 10 mm electrolytic copper current bars delivering current ratings beyond nominal specifications.

The product is manufactured in India and meets robust industrial safety and reliability standards. Explore our range of Weidmüller Distribution Blocks and electrical components at EnvMart for reliable industrial, laboratory, and commercial power distribution solutions.
