Molex 5558 Series Female Crimp Terminal for Mini-Fit Connectors 9A Current 28-22 AWG 39-00-0065

Free Delivery in India | Lowest Global Shipping Charges

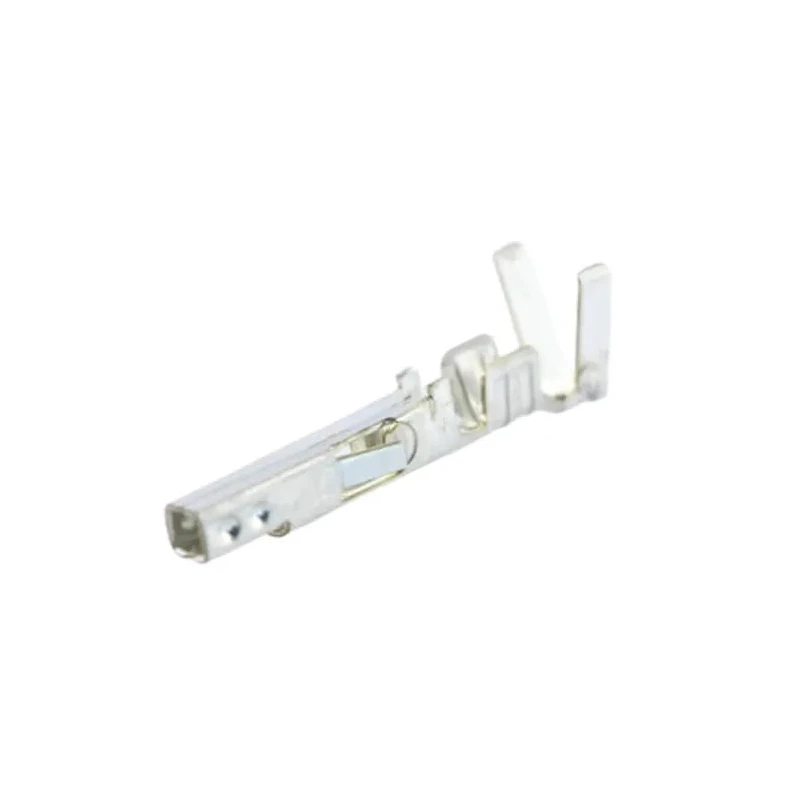

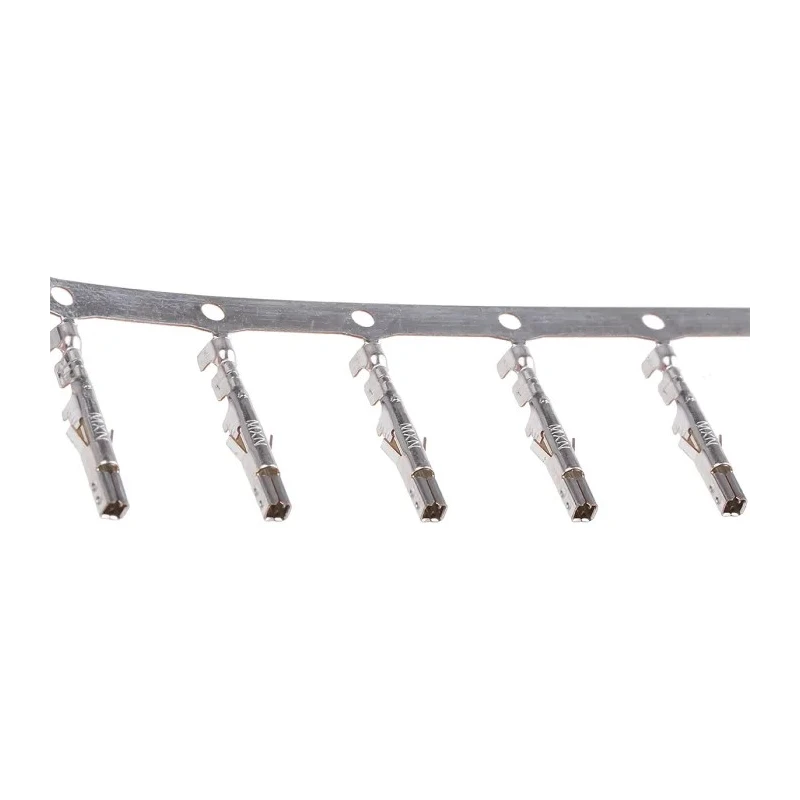

Molex 5558 Series Female Crimp Terminal for Mini-Fit Connectors 9A Current 28-22 AWG 39-00-0065

Name: Molex 5558 Series Female Crimp Terminal for Mini-Fit Connectors 9A Current 28-22 AWG 39-00-0065
Brand: Molex
SKU: 207251
Price: 0.1 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Female
Contact Material	Phosphor Bronze
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	60mΩ
Molex 5556 Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	Molex

Key Features

Compatible with Mini-Fit TPA and Mini-Fit BMI connector housings.
Constructed with phosphor bronze contact material for durability.
Contact surfaces plated with tin to ensure reliable connections.
Supports wire gauge from 28 AWG minimum to 22 AWG maximum.
Operates reliably in temperatures ranging from -40°C to 85°C.
Features locking tangs for secure retention within connector housings.
Maximum contact resistance is 60 milliohms ensuring minimal signal loss.
Designed without certifications or approvals but meets common industrial usage standards.

Product Description

Molex 39-00-0065 female crimp terminal is part of the 5558 Series designed for use with Mini-Fit Junior plug and receptacle connector housings. Engineered to carry currents up to 9 amperes, this crimp contact accommodates wire sizes ranging from a minimum of 28 AWG (0.08 mm²) to a maximum of 22 AWG (0.35 mm²), making it suitable for various industrial and commercial electronic applications.

The contact is made from phosphor bronze, a durable material providing excellent mechanical strength and electrical conductivity. Its tin plating enhances corrosion resistance and ensures a reliable electrical interface. Locking tangs secure the contact firmly within the connector housing, preventing accidental disconnection under vibration or mechanical stress.

Operating temperature ranges from -40 degrees Celsius to 85 degrees Celsius, aligning with typical automotive and industrial environments. The maximum contact resistance specified at 60 milliohms enables effective low-resistance connections critical for signal integrity and power delivery.

This female crimp terminal supports Mini-Fit TPA and BMI connector housings and the Mini-Fit Junior series, widely used in automotive, industrial automation, medical devices, communication equipment, and consumer electronics.

Though the product does not carry specific certifications or approvals, it conforms to standard manufacturing quality and construction expected of Molex components. Originating from the United States, this terminal offers dependable performance in demanding electrical and electronic assemblies.

Compatible with Mini-Fit TPA and BMI connector housings. Constructed with phosphor bronze for strength and conductivity. Tin plating ensures corrosion resistance and connection reliability. Supports wire sizes from 28 AWG to 22 AWG for design flexibility.

Current rating of 9 amperes suitable for various applications. Operates over a temperature range of -40°C to 85°C. Locking tangs secure the contact in connector housings. Maximum contact resistance of 60 milliohms minimizes signal loss.

Ideal for automotive, industrial, medical, communication, and consumer electronics industries. Explore more Molex connectors and Crimp Contacts in EnvMart’s electronics components collection for reliable industrial-grade solutions.
