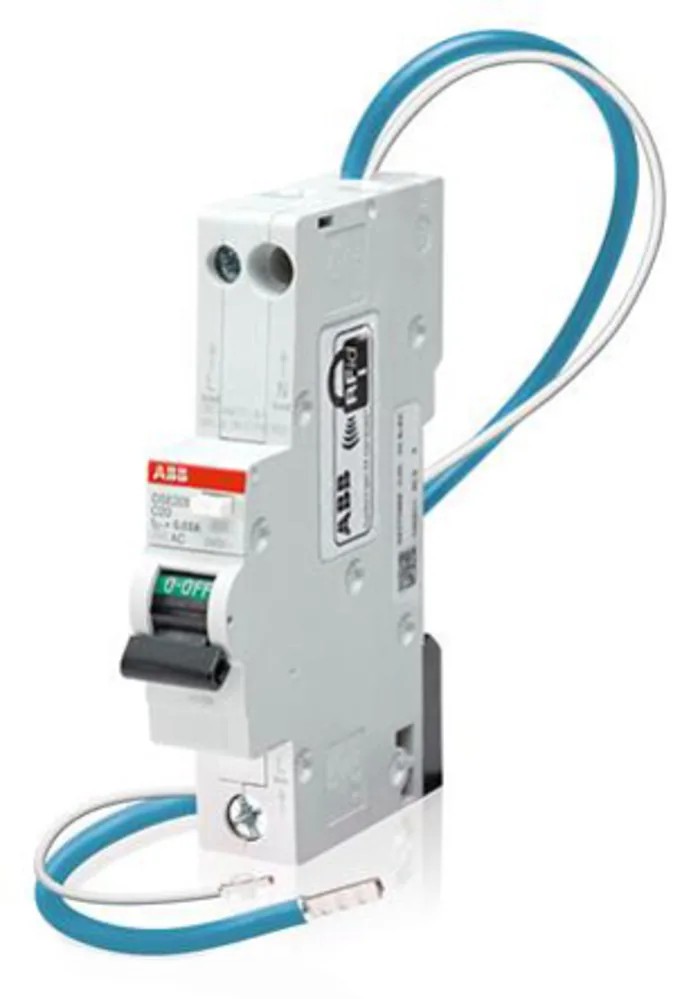

ABB Residual Current Circuit Breaker with Overload Protection 50A, 1-Pole, 30 mA 2CSR255051R1505 DSE201 B50 AC30 - N Blue

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection 50A, 1-Pole, 30 mA 2CSR255051R1505 DSE201 B50 AC30 - N Blue



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	115mm
Model	2CSR255051R1505 DSE201 B50 AC30 - N Blue
Depth	69mm
Width	18mm
Mount Type	DIN Rail
Current Rating	50A
Series	DSE201
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	RoHS, IEC
Rated AC Voltage	240V ac
Tripping Characteristics	Type B
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC
RCBO's	DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Key Features

Equipped with a thermal magnetic tripping mechanism for reliable protection.
Mountable on DIN rail for easy installation in electrical panels.
Provides earth leakage protection type AC with screw terminals for secure wiring.
Compact dimensions of 115mm height, 69mm depth, and 18mm width ensure space-efficient setup.
Breaking capacity of 6kA for enhanced safety against fault currents.
Toggle switch reset actuator type for straightforward operation.
Operating temperature range from -25 to +55 °C suitable for industrial environments.
Complies with RoHS and IEC standards ensuring regulatory compliance and safety.

Product Description

ABB 2CSR255051R1505 DSE201 B50 AC30 - N Blue Residual Current Circuit Breaker combines overcurrent and earth leakage protection in a single module, designed for 1-pole installations with a rated current of 50A and a trip sensitivity of 30 mA. It ensures safe electrical isolation and protection against short-circuit currents, overload, and indirect contact risks.

This RCBO features a thermal magnetic tripping mechanism and a toggle switch for easy manual reset. The device is designed for DIN rail mounting and incorporates screw terminals for secure and reliable connections. It provides AC earth leakage protection type and is built to operate efficiently within an ambient temperature range of -25 to +55 °C. Its compact size makes it ideal for installation in limited spaces inside electrical distribution panels.

The circuit breaker has a breaking capacity of 6kA, enabling it to handle fault currents safely. It complies with RoHS and IEC standards, ensuring safety and environmental compliance in industrial, commercial, and residential electrical installations.

ABB's DSE201 series is part of the System Pro M Compact range, widely used in electrical automation, distribution boards, and industrial control applications requiring precise and reliable overload and residual current protection.

Thermal magnetic tripping mechanism ensures dependable operation. DIN rail mountable design for easy integration into standard panel setups. Screw terminal connections provide robust and secure wiring. Compact size optimizes panel space use.

Suitable for applications within a temperature range of -25 to +55 °C. Breaking capacity supports up to 6kA fault current interruption. Conforms to international RoHS and IEC safety standards. Ideal for residential, commercial, and industrial electrical protection needs.
