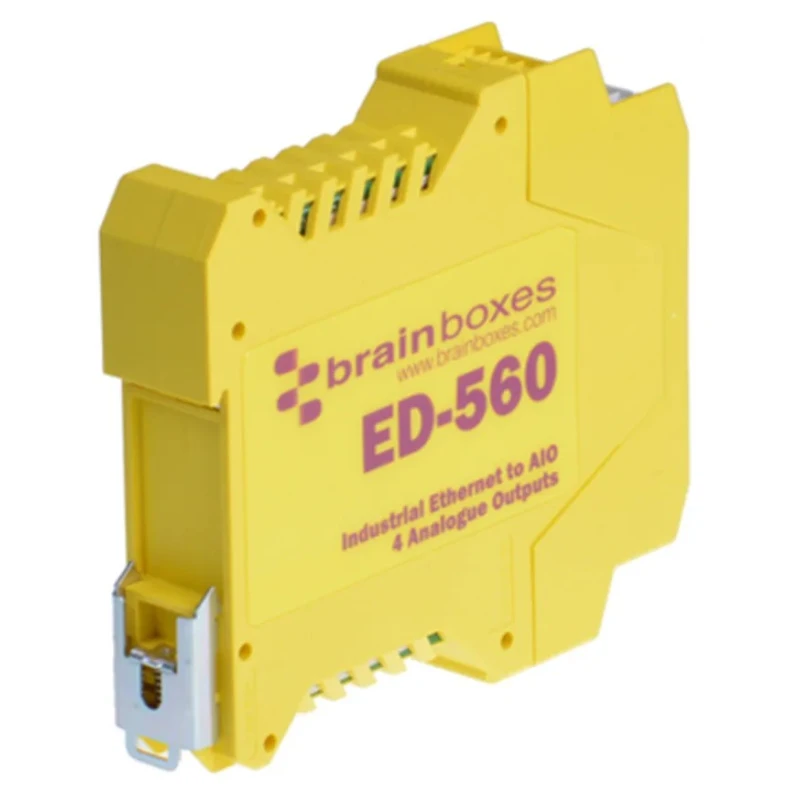

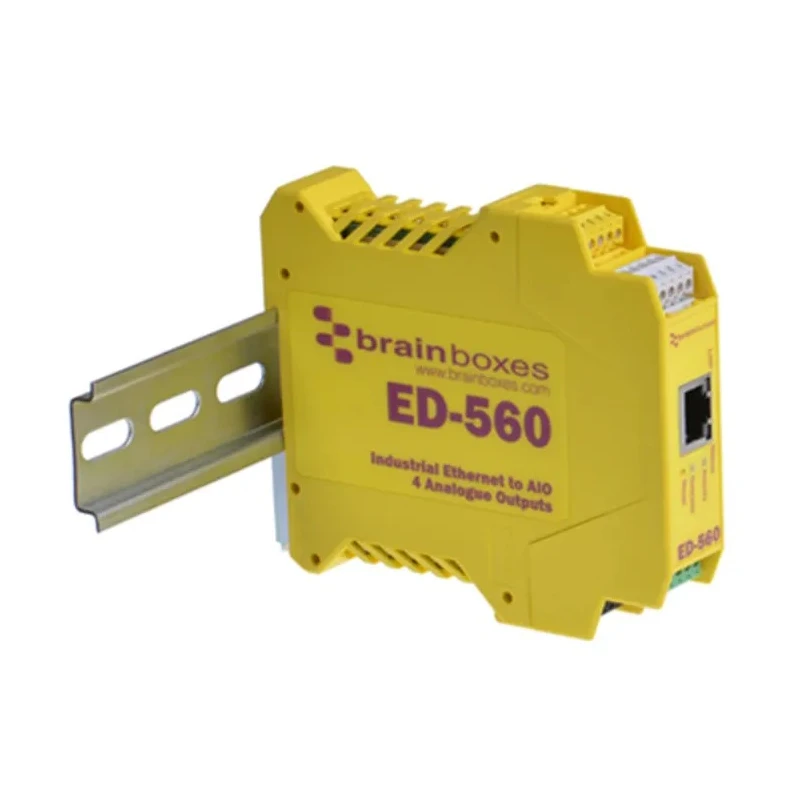

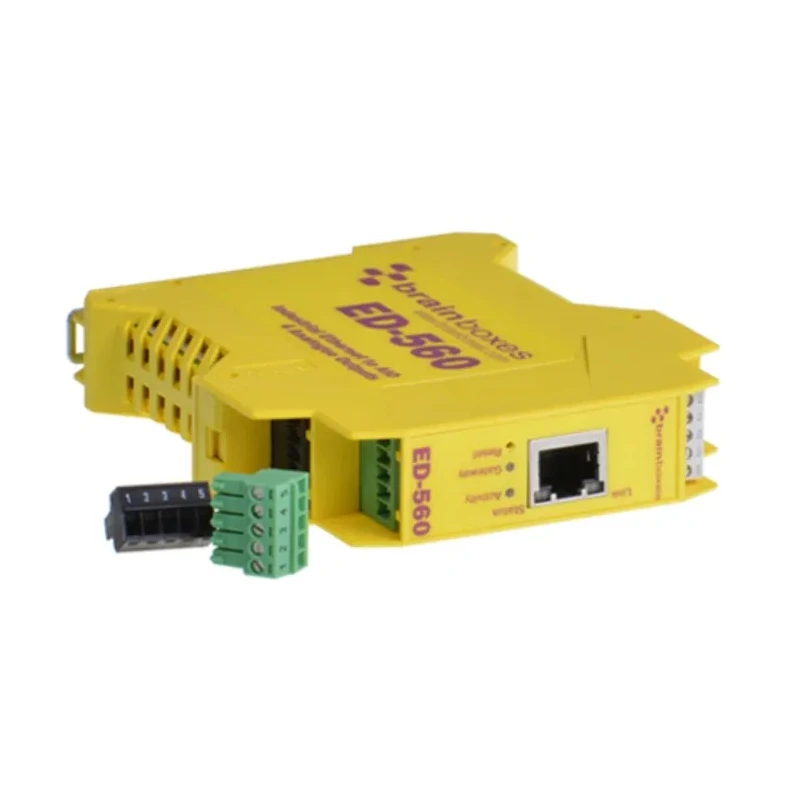

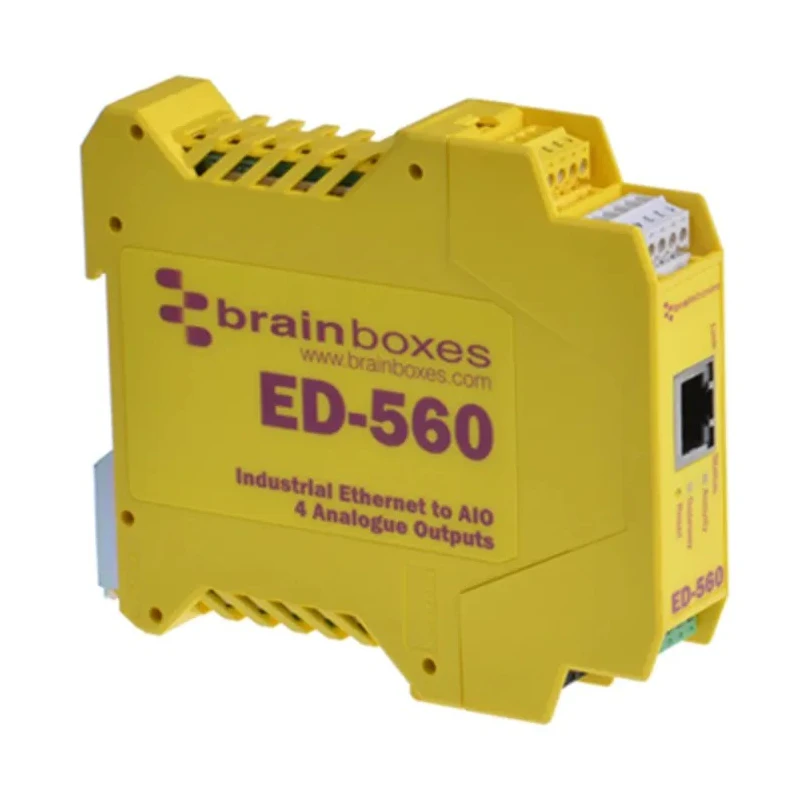

Brainboxes PLC I/O Module 4-Channel Analogue DIN Rail Mount Ethernet Interface ED-560

Free Delivery in India | Lowest Global Shipping Charges

Brainboxes PLC I/O Module 4-Channel Analogue DIN Rail Mount Ethernet Interface ED-560

Name: Brainboxes PLC I/O Module 4-Channel Analogue DIN Rail Mount Ethernet Interface ED-560
Brand: Brainboxes
SKU: 207045
Price: 720.51 USD
Availability: InStock



Category PLC I/O Module Brand Brainboxes Condition New

Specifications

Country of Origin	India
Brand	Brainboxes
Length	99mm
Model	ED-560
Depth	114mm
Width	23mm
Mount Type	DIN Rail
Series	ED-560
Input Type	Analogue
Maximum Operating Temperature	80°C
Module type	Analogue I/O Module
Interfaces	Ethernet port
Standards/Approvals	CE, UKCA, AEO (C-TPAT), RoHS
Number of I/Os	4

Key Features

Features 4 analogue outputs configurable as current or voltage.
Mounts easily on a DIN rail for compact installation.
Operates reliably up to 80°C maximum temperature.
Supports Modbus TCP protocol and ASCII command control over TCP/IP.
Includes 1500VRMS magnetic isolation from Ethernet for robust operation.
Provides web browser configuration and Windows COM port emulation for legacy support.
Compact dimensions measuring 99mm length, 23mm width, and 114mm depth.
Designed for control of AC/DC motors, relays, pumps, and HVAC systems.

Product Description

Brainboxes ED-560 is a high-performance PLC I/O analogue module designed to provide 4 analogue outputs with versatile control via Ethernet. It supports DIN rail mounting to fit standard industrial automation panels and is robust against harsh environments with an operating temperature range up to 80°C.

This module can be controlled using Modbus TCP or simple ASCII commands, accessible remotely over TCP/IP networks. Configuration and security are managed conveniently through a web browser interface, with full backward compatibility via Windows COM port emulation for existing legacy systems.

The device offers 1500VRMS magnetic isolation between the Ethernet interface and analogue outputs, ensuring operational safety against electrical interference. The outputs are selectable as current or voltage types, allowing flexibility in controlling a variety of field devices.

Typical applications include control and switching of AC/DC motors, activation of relays and pump control, voltage regulation, and operation of LEDs, bulbs, heaters, solenoids, and air conditioning systems within industrial, HVAC, and manufacturing environments.

With CE, UKCA, RoHS, and AEO (C-TPAT) certifications, the ED-560 meets stringent compliance requirements for industrial automation deployments. Features 4 analogue outputs configurable as current or voltage. Mounts easily on a DIN rail for efficient panel installation.

Operating temperature range from -30°C to 80°C ensures durability. Supports control via Modbus TCP and ASCII commands over Ethernet. Includes 1500VRMS magnetic isolation from Ethernet. Web browser configurable with Windows COM port support for legacy systems.

Compact dimensions of 99mm (L) x 23mm (W) x 114mm (D). Suitable for industrial automation, HVAC, manufacturing, and control applications. Certified CE, UKCA, RoHS, and AEO (C-TPAT). Explore the full range of PLC I/O Modules from Brainboxes at EnvMart for reliable industrial automation solutions.
