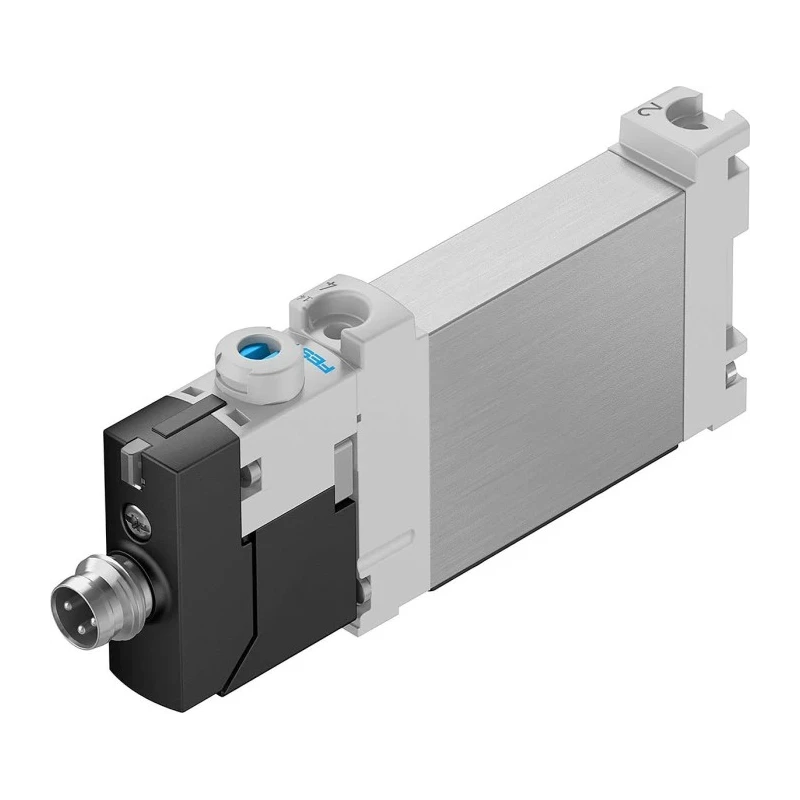

Festo 5/2 Way Monostable Electric Solenoid Valve Manifold Mount 24V dc Aluminium Alloy VUVG-BK10-M52-AT-F-1R8L-S
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 7 bar |
| Height | 4.4mm |
| Length | 74.3mm |
| Model | VUVG-BK10-M52-AT-F-1R8L-S |
| Width | 10mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Protection | IP 40/IP 65 |
| Maximum Flow Rate | 160L/min |
| Standards/Approvals | CE, RoHS, cULus |
| Minimum Pilot Pressure | 2.5bar |
| Valve Function | 5/2 |
| Electrical Connection Type | 3-Pin Plug |
| Solenoid Type | Single |
| Port Gender | Male |
| Solenoid Power Consumption | 0.7W |
Key Features
- Valve has a maximum operating pressure of 7 bar for high energy density applications.
- Compact design ensures space savings and fast installation with manifold mount type.
- Equipped with a single solenoid, 3-pin plug electrical connection and piston spool sealing ring design.
- Operating temperature range from -5°C to 50°C with nitrile rubber (NBR) seal materials for reliable function.
- Maximum flow rate of 160 L/min allows rapid actuation and short cycle times.
- Durable aluminium alloy body material offers strength and corrosion resistance.
- Features internal pilot air supply and flange/sub-base pneumatic connection for easy integration.
- Includes CE, RoHS, and cULus certifications for industrial compliance.
Product Description
Festo VUVG-BK10-M52-AT-F-1R8L-S is a 5/2 way monostable electric solenoid valve with manifold mounting, operating at 24V dc and featuring an aluminium alloy body. It is designed for pneumatic control applications requiring compactness, durability, and high flow rate.
The valve utilizes a piston spool with sealing ring design and is equipped with a single solenoid actuator connected via a 3-pin plug for reliable electric actuation. The manifold mount type allows easy assembly into sub-base valve systems using pneumatic linking.
With a maximum operating pressure of 7 bar and pilot pressure range of 2.5 to 7 bar, the valve delivers up to 160 L/min flow rate, suitable for industrial automation, fluid power, manufacturing, and process control applications.
The nitrile rubber (NBR) seals provide robust sealing performance within an operating temperature range of -5°C to 50°C. Protection ratings of IP40 and IP65 ensure operational safety in harsh environments.
Certifications including CE, RoHS, and cULus guarantee compliance with relevant international standards. The robust aluminium alloy body ensures long service life while maintaining a light and compact form factor (length 74.3mm, width 10mm, height 4.4mm).
High flow rate with short cycle times for efficient pneumatic system control. Internal pilot air supply and flexible manifold sub-base connection enable versatile installation. Innovative design allows easy electrical connection changes and troubleshooting.
Durable construction reduces downtime and maintenance frequency. Compact, space-saving design optimizes system integration.
Festo pneumatic solenoid valves are ideal for industrial, manufacturing, and automation applications where precision, reliability, and energy efficiency are critical. This valve is a key component in pneumatic control systems requiring fast and accurate actuation.
Explore EnvMart’s wide range of Pneumatic Solenoid Valves and related industrial valve fittings for fluid power and automation solutions.
