Festo Pneumatic Sensor M 8 Plug Connector IP68, IP65 10V dc 30V dc with LED Indicator

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Sensor M 8 Plug Connector IP68, IP65 10V dc 30V dc with LED Indicator

Name: Festo Pneumatic Sensor M 8 Plug Connector IP68, IP65 10V dc 30V dc with LED Indicator
Brand: FESTO
SKU: 206515
Price: 189.84 USD
Availability: InStock



Category Pneumatic Sensor Brand FESTO Condition New

Specifications

Country of Origin	Bulgaria
Voltage	10, 30V dc
Brand	Festo
Model	IP68
IP Rating	IP68, IP65
Housing Material	Polyester, Reinforced Polyamide, Nickel Plated Brass
Construction	Round
Series	SRBS
Maximum Operating Temperature	70°C
Measurement Principle	Magnetic Hall, Position Sensor
Minimum Operating Temperature	-20°C
For Use With	DRVS Rotary Drives, DSM Rotary Drives
Output Function	NO, Switching output, NC
Standards/Approvals	CE marking to EU EMC Directive, RoHS, EN 60947-5-2, RCM trademark, c UL us - listed (OL)
Electrical Connection Type	M 8 Plug Connector
Switching Action	NC, PNP, NPN, No

Key Features

Designed for pneumatic cylinder position detection in rotary drives.
Includes LED indicator for operational status.
Construction employs polyester, reinforced polyamide, and nickel plated brass for durability.
Suitable for use with DRVS and DSM rotary drives.
Non-contact magnetic Hall sensor principle for long service life.
Operating temperature range from -20°C to 70°C supports diverse environments.
IP68 and IP65 rated for protection against dust and water.
Switching actions configurable as NC, PNP, NPN, and NO outputs.

Product Description

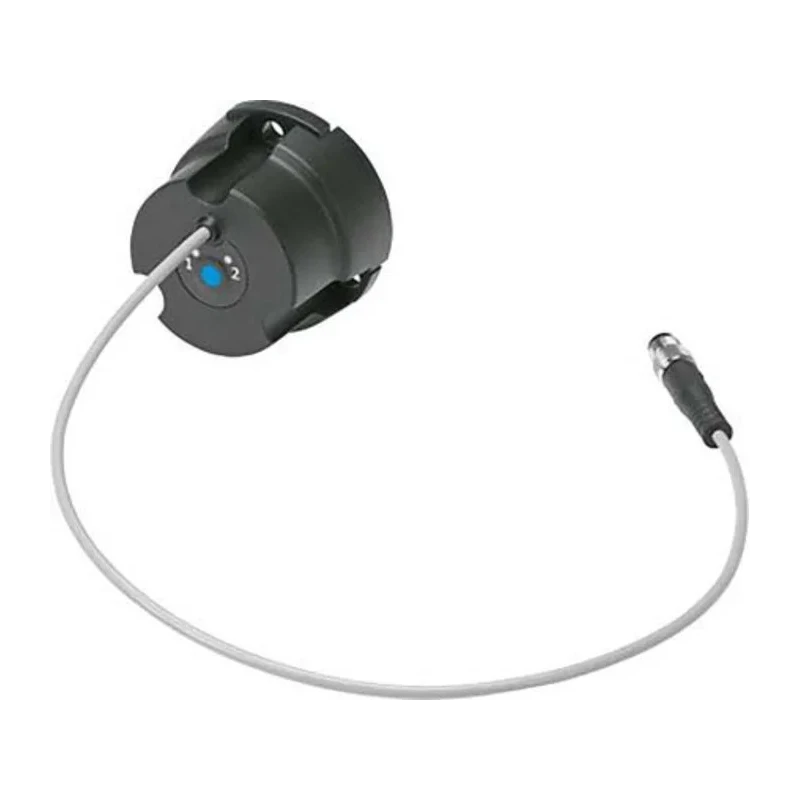

Festo SRBS-Q12-25-E270-EP-1-S-M8 Pneumatic Sensor is a round, non-contact magnetic Hall effect sensor designed for precise rotational position detection of shafts in pneumatic rotary drives, specifically DRVS and DSM series.

The sensor features a robust housing constructed from polyester, reinforced polyamide, and nickel plated brass, ensuring durability and reliable operation in demanding industrial environments.

Operating voltage ranges from 10V dc to 30V dc, with switching outputs configurable among NC, PNP, NPN, and NO types. An integrated LED indicator provides clear operational feedback.

With an operating temperature range from -20°C to 70°C and protection ratings of IP68 and IP65, this sensor is suitable for harsh environments, offering excellent resistance to dust and water ingress.

The sensor’s magnetic Hall principle enables non-contact position sensing over a sensing range greater than 270°, allowing precise shaft rotation detection without wear. Designed for pneumatic cylinder rotary drive applications with DRVS and DSM compatibility.

Durable housing materials provide extended service life and environmental protection. Multiple switching outputs and LED status indication facilitate versatile integration. Reliable performance verified by CE EMC Directive, RoHS compliance, EN 60947-5-2, and UL listings.

IP68/IP65 ratings ensure suitability for industrial, manufacturing, automation, and pneumatic system uses.

Set the standard for reliability and precision in Pneumatic Sensor applications with this Festo SRBS series sensor from EnvMart’s selection of industrial pneumatic cylinder sensors.
