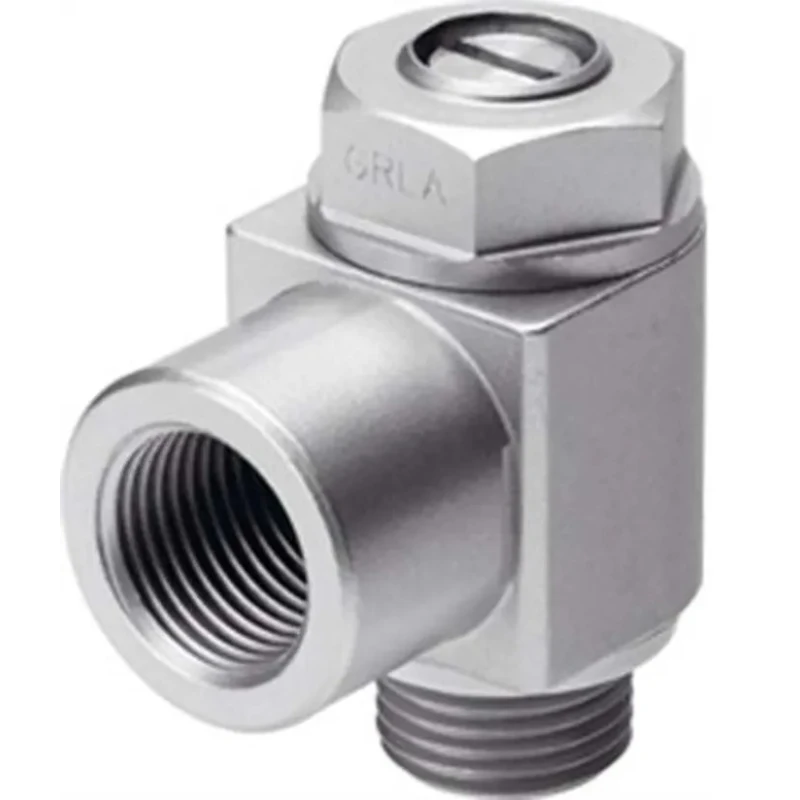

Festo GRLA Series Flow Controller Exhaust Valve, Inlet Female G 1/8, Outlet Male Threaded, 1 bar Pressure, -10°C GRLA-1/8-B

Festo GRLA-1/8-B Flow Controller Exhaust Valve is an essential pneumatic component engineered to regulate exhaust air flow and release pressure safely within pneumatic systems. It incorporates an inlet female G 1/8 port with an integrated QS push-in fitting for quick, fuss-free tubing connections and a robust brass adjusting screw to finely tune flow rates.

The outlet feature is a male threaded G 1/8 port designed to efficiently release exhaust air, supporting pneumatic system stability and operation control. Constructed from high-quality materials including anodised wrought aluminium alloy, die cast zinc, brass, high alloy stainless steel, polyamide-reinforced plastics, and nitrile rubber (NBR), the valve ensures durability and corrosion resistance in demanding environments.

Operating pressure up to 1 bar and a temperature range from -10°C to 150°C make it suitable for various industrial and laboratory scenarios. The valve's lightweight design of just 28 grams minimizes system strain, while the swivel fitting allows installation in any direction, providing versatility and ease of integration.

With a nominal flow capacity reaching 340 liters per minute, this flow controller can manage high-pressure pneumatic demands, regulating piston speeds or controlling exhaust air release. It is applied widely in mechanical engineering systems, automated manufacturing lines, and medical laboratory environments, where precision and reliability are critical.

Features inlet female G 1/8 port integrated with QS push-in fitting for easy tubing connection. Outlet port is male threaded G 1/8 for reliable and secure exhaust air release. Operates safely within -10°C to 150°C temperature range suitable for harsh environments.

Handles maximum operating pressure of 1 bar ensuring performance under pneumatic load. Lightweight design at 28 grams allows easy system integration without strain. Constructed using anodised aluminium alloy, die cast zinc, brass, stainless steel, and reinforced polymers for corrosion resistance.

Swivel fitting enables installation in any orientation for dynamic setup flexibility. Capable of flow rates up to 340 L/min, supporting demanding pneumatic applications. Applications include mechanical engineering, automated manufacturing, and medical laboratories.

Includes brass adjusting screw for precision flow control using a slotted-head screwdriver.

This valve is a trusted part of the Festo GRLA series, renowned for quality pneumatic function fittings. Its robust materials and precision engineering meet Germanischer Lloyd and ISO 8573-1:2010 (7:4:4) standards, alongside RoHS compliance.
