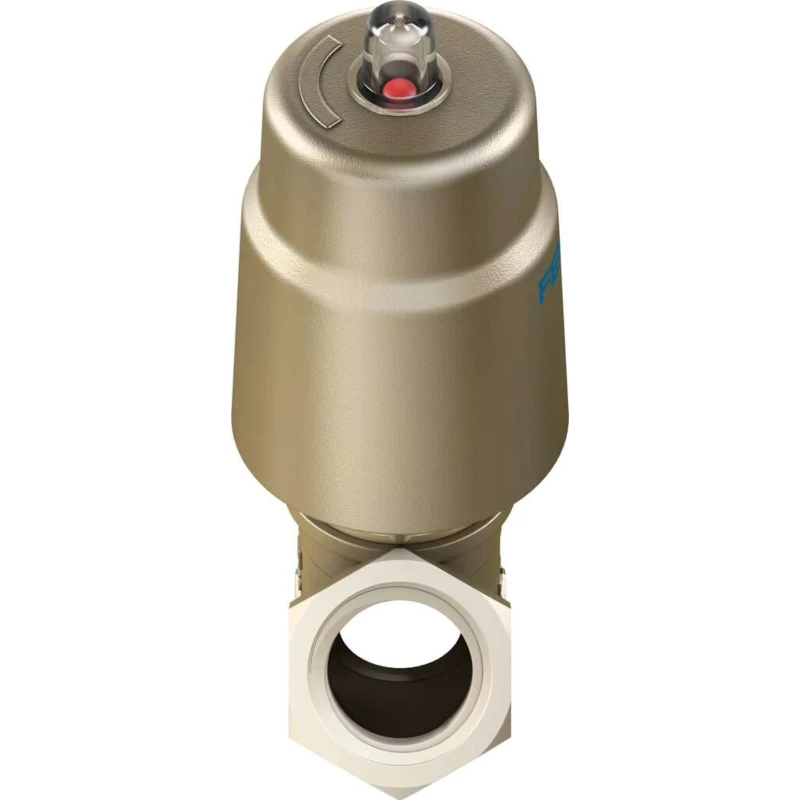

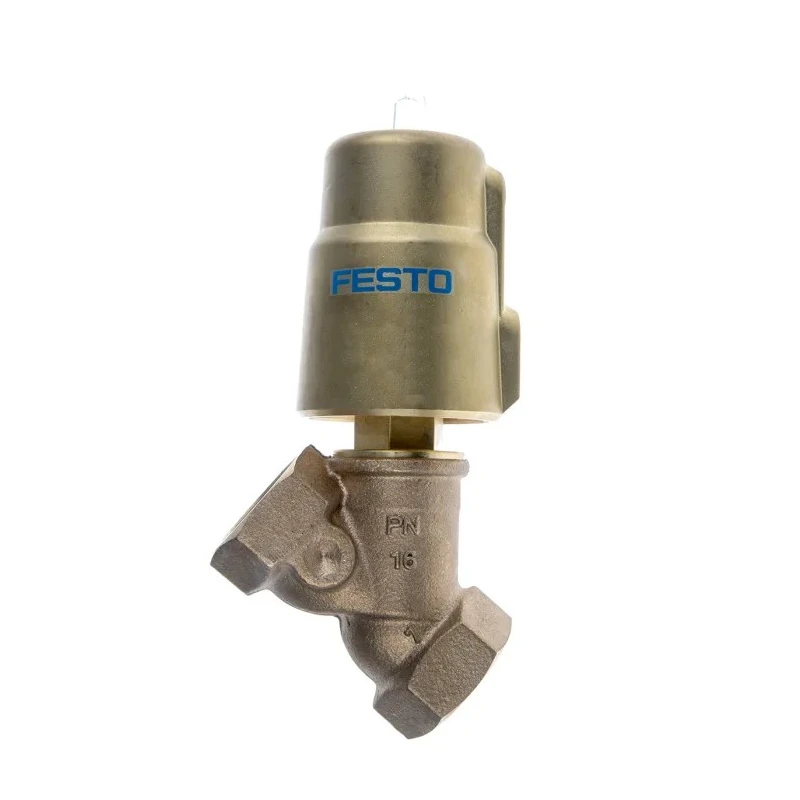

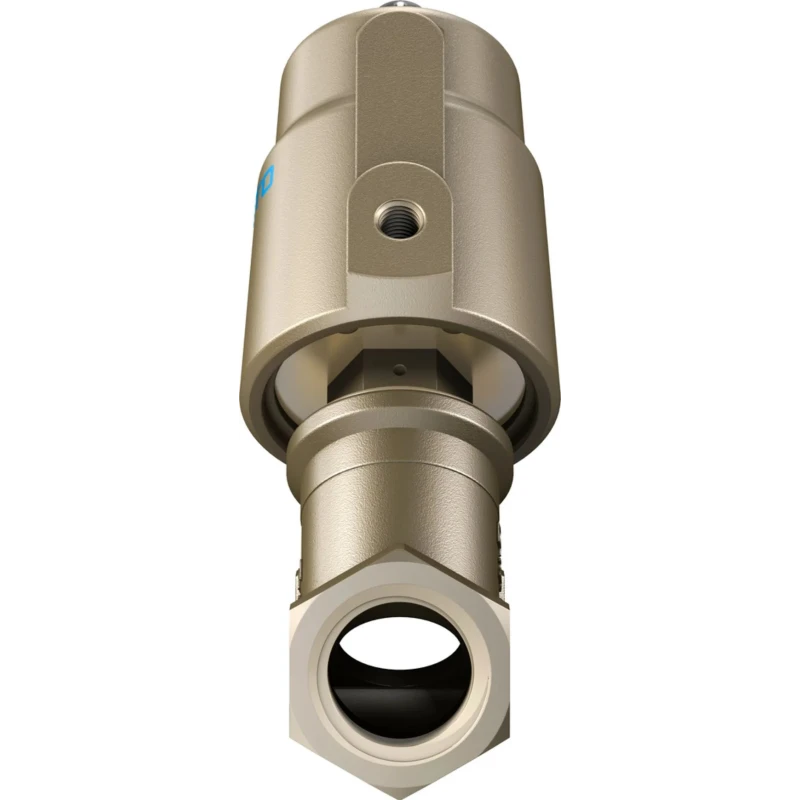

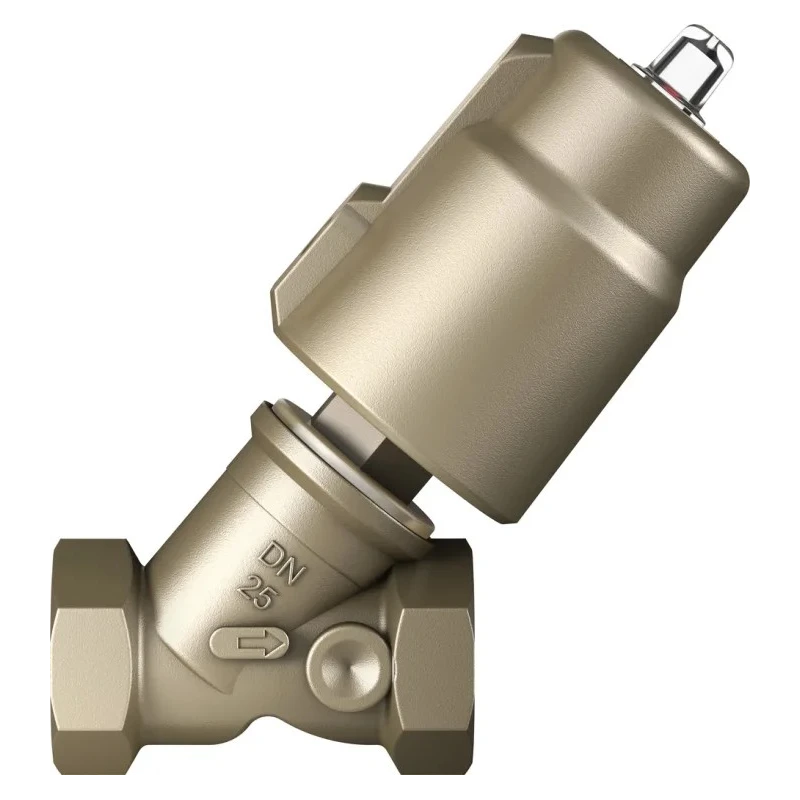

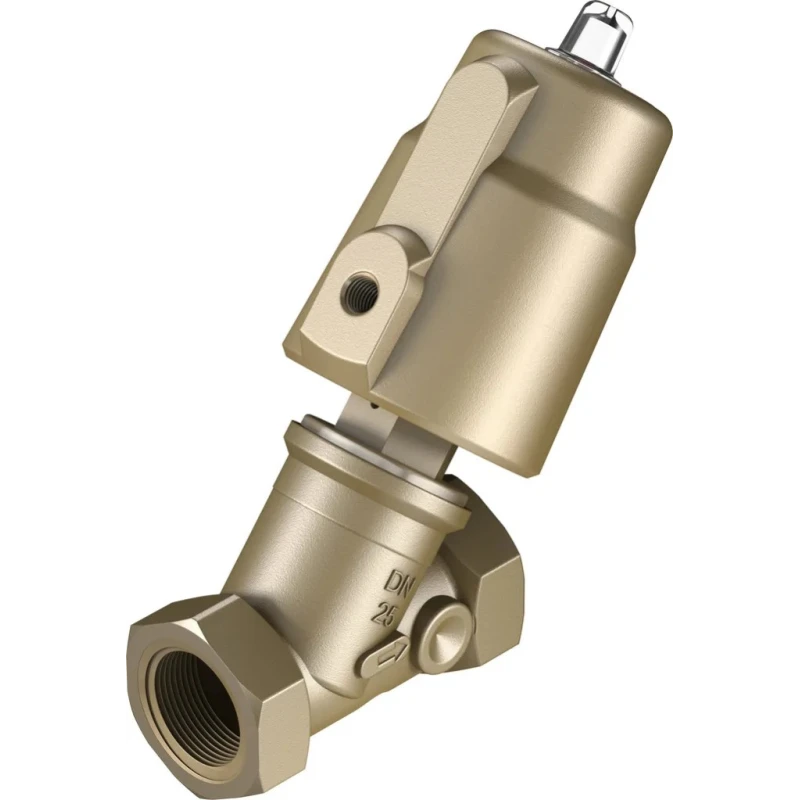

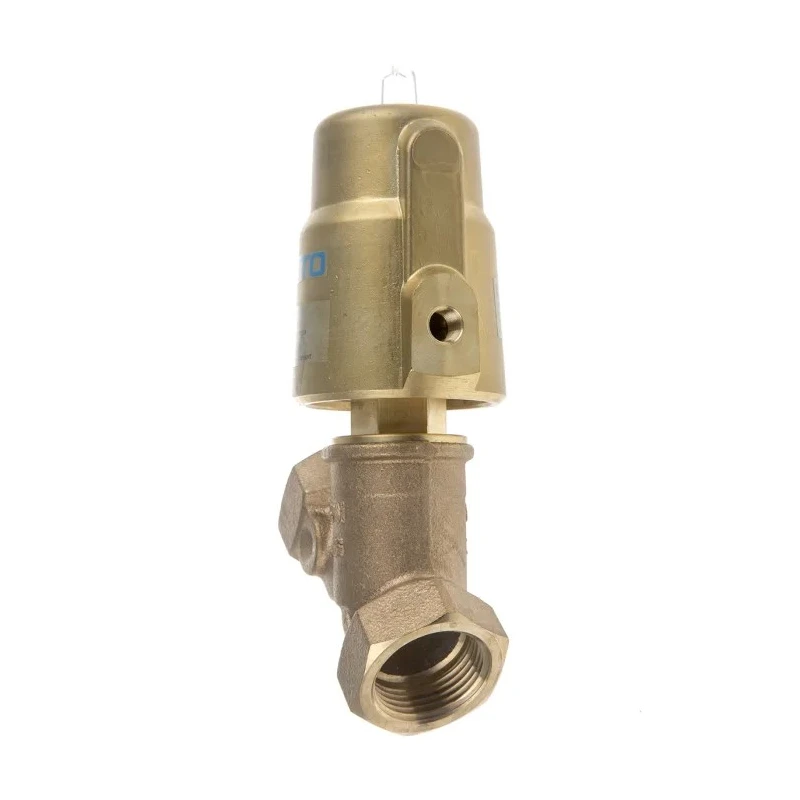

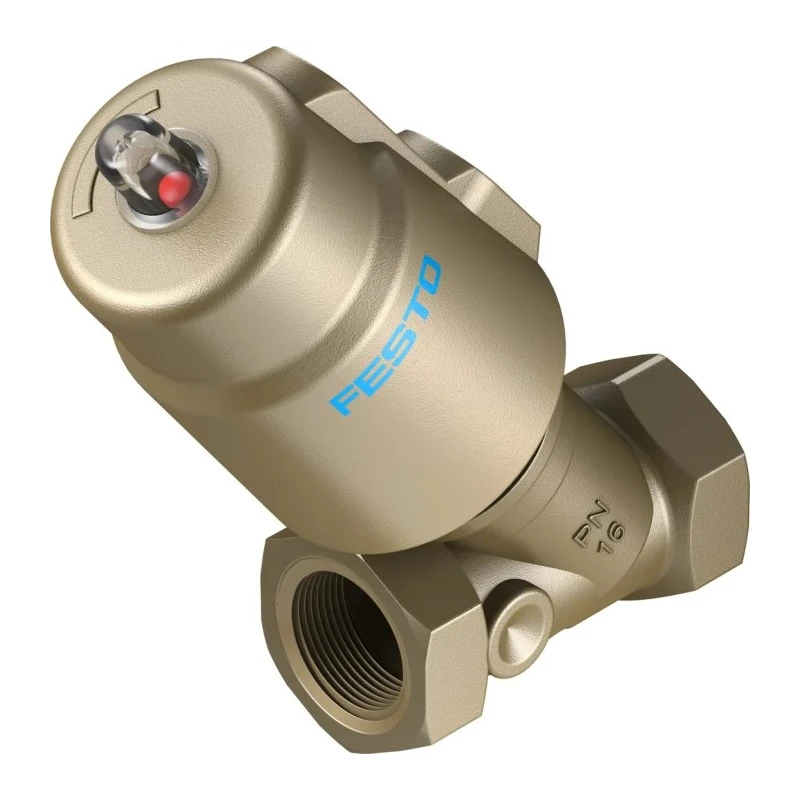

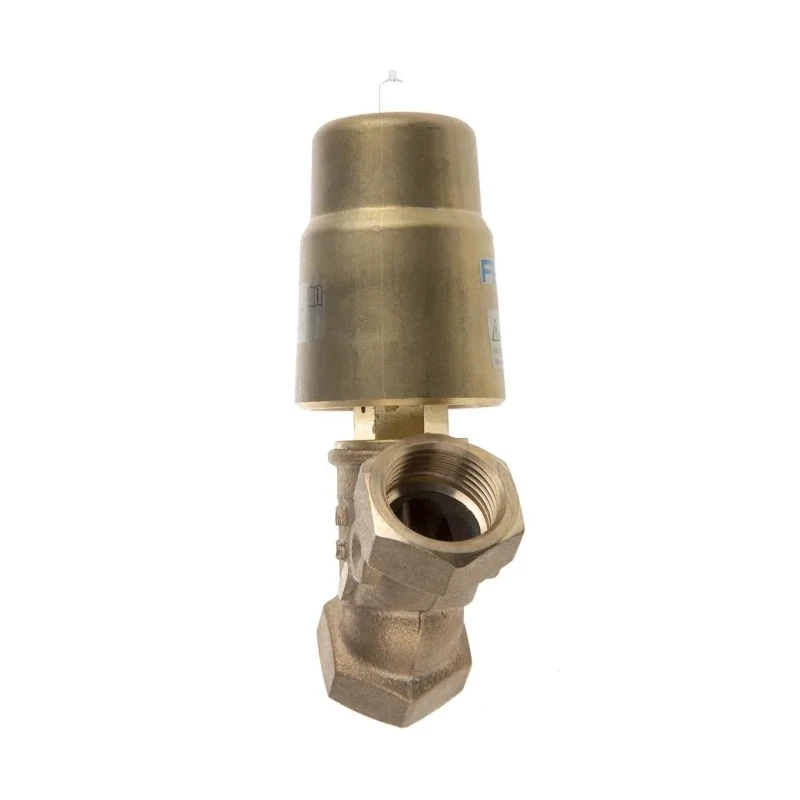

Festo Angle Seat Pneumatic Valve 10 Bar 1 Inch Threaded, Gunmetal, NC, Spring Return VZXF-L-M22C-M-B-G1-230-H3B1-50-10
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Inlet Connection Type | Threaded |
| Model | VZXF-L-M22C-M-B-G1-230-H3B1-50-10 |
| Valve Type | Angle Seat |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Gunmetal (Red Brass) |
| Inlet Port Size | 1 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
Key Features
- Angle seat pneumatic valve with threaded inlet and outlet ports.
- Maximum operating pressure of 10 bar ensures suitability for demanding pneumatic systems.
- Made from gunmetal (red brass) for enhanced corrosion and chemical resistance.
- Default valve position is Normally Closed (NC) with a spring return mechanism.
- Wide operating temperature range from -10°C to +60°C for versatile industrial use.
- Suitable for media with viscosity up to 600 mm²/s and compatible with liquids, gases, and steam.
- Nitrile rubber (NBR) spindle seal offers abrasion resistance and durability.
- Brass drive head provides extra mechanical robustness under frequent actuation.
Product Description
Festo VZXF-L-M22C-M-B-G1-230-H3B1-50-10 Angle Seat Pneumatic Valve is designed for reliable performance in industrial pneumatic systems, offering robust construction and versatility for harsh environments. This valve features a threaded inlet and outlet, supporting a 1 inch BSP port size, which facilitates easy integration into existing circuits.
Angle seat valve design ensures low flow resistance and minimal pressure loss. Suitable for applications using contaminated or highly viscous media up to 600 mm²/s. Spring return mechanism secures the default Normally Closed operation.
Gunmetal (red brass) body and NBR seals maximize chemical and thermal resistance. Operates across a wide temperature band from -10°C to +60°C. Compatible with steam, hot liquids, and gases, resisting backflow and wear. Brass drive head provides high durability against corrosion and frequent cycling.
This versatile valve finds typical use cases in automated packaging systems, automotive manufacturing lines, agricultural machinery, and general industrial pneumatic installations requiring reliable control of fluid, air, or steam flow. Its robust build reduces maintenance needs and extends service life, making it a cost-effective solution for demanding operations.
The valve's compact design and ease of mounting in any installation position further enhance usability, especially in space-constrained environments. The angle seat configuration supports high flow rates, and threaded connections (G standard) simplify assembly while ensuring leak-proof performance.
Industries benefiting from this Festo valve include Industrial Automation, Manufacturing, Water Treatment, HVAC, Mechanical Engineering, Laboratory Systems, and Commercial Process Control.
For more innovative pneumatic solutions and valves, explore EnvMart's Pneumatic Valves category or browse Festo's full range of flow control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic valve is 10 bar.
This valve is made from gunmetal (red brass) and features nitrile rubber (NBR) seals for enhanced chemical and thermal resistance.
The default valve position is Normally Closed (NC) with a spring return mechanism.
The inlet port size of this model is 1 inch, and it has a threaded connection type.
This valve operates within a temperature range of -10°C to +60°C.
It is suitable for liquids, gases, and steam, and can handle media with a viscosity of up to 600 mm²/s.
This product is an angle seat pneumatic valve, designed for low flow resistance and minimal pressure loss.
The valve features a threaded inlet and outlet, supporting a G standard for easy integration into existing circuits.
Typical applications include automated packaging systems, automotive manufacturing lines, and agricultural machinery.
The brass drive head provides extra mechanical robustness and durability under frequent actuation.
This valve is manufactured in Germany.
Industries such as Industrial Automation, Manufacturing, Water Treatment, and HVAC benefit from this valve's capabilities.
