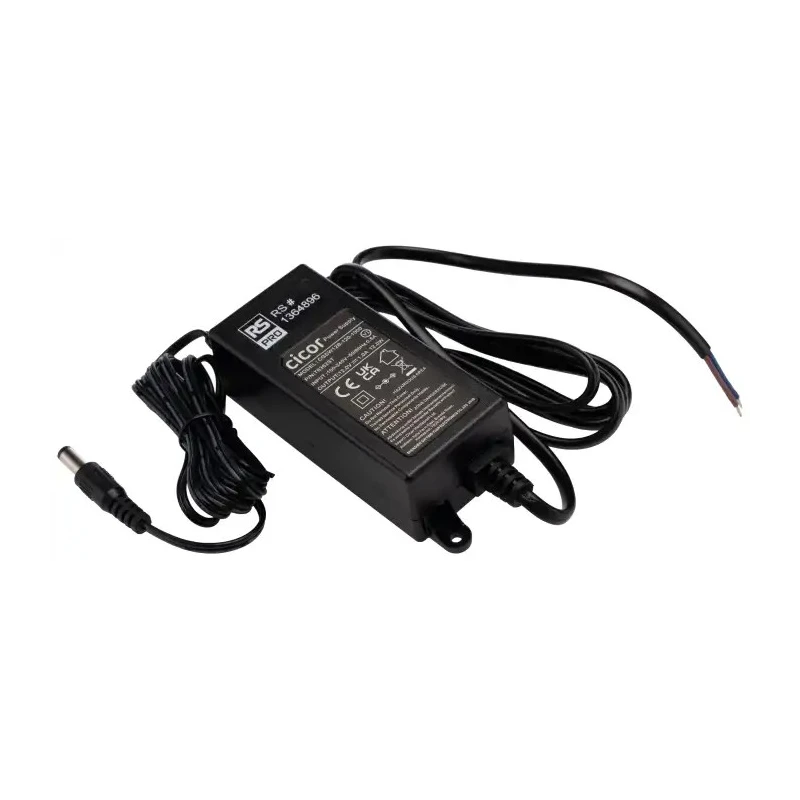

RS PRO 12W 12V DC Centre Positive AC/DC Adapter Fixed Bare End 2.1 x 5.5 x 12 mm 1A 136-4896

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 12W 12V DC Centre Positive AC/DC Adapter Fixed Bare End 2.1 x 5.5 x 12 mm 1A 136-4896

Name: RS PRO 12W 12V DC Centre Positive AC/DC Adapter Fixed Bare End 2.1 x 5.5 x 12 mm 1A 136-4896
Brand: RS PRO
SKU: 205784



Category AC/DC Adapter Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Power	12W
Efficiency	82.95%
Length	95mm
Model	136-4896
Depth	30.6mm
Width	43mm
Series	RS PRO
Maximum Operating Temperature	80°C
Sub Type	AC/DC Adapter
Load Regulation	±1 %
Minimum Operating Temperature	-20°C
Plug Type	Fixed Bare end
Number of outputs	1
Maximum Input Voltage	240V ac
Output Voltage	12V dc
Standards/Approvals	CE, EN 60950-1
Minimum Input Voltage	100V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	Fixed AC Mains Lead
Adapter Current	1A
Energy Efficiency Level	VI

Key Features

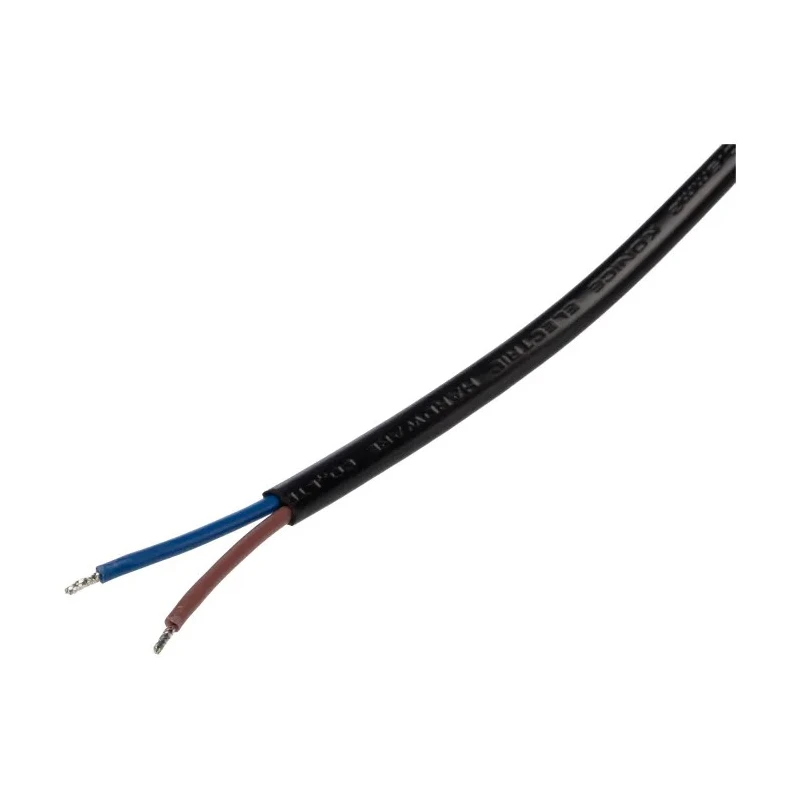

This adapter features a fixed AC mains lead as its input connector.
It delivers a regulated 12 V DC output at 1 ampere current.
The output connector is a 2.1 x 5.5 x 12 mm centre positive plug.
It operates efficiently with an 82.95% efficiency rating and meets Energy Efficiency Level VI.
Operating temperature range is from -20°C to 80°C, suitable for various environments.
Designed with overcurrent and short circuit protection to safeguard connected devices.
Complies with CE and EN 60950-1 safety standards.
Load regulation maintains ±1% voltage stability under varying loads.

Product Description

RS PRO 136-4896 is a premium quality AC/DC adapter delivering 12 W power at 12 V DC output current of 1 A. It is designed with a fixed bare end AC mains lead input and a 2.1 x 5.5 x 12 mm centre positive output connector for versatility in connection options.

This plug-in power supply is suitable for residential and commercial applications, including charging smaller DC electronic devices such as mobile phones, tablets, and audio speakers. Its high efficiency of 82.95% and Energy Efficiency Level VI rating ensure low energy wastage, making it environmentally friendly and cost effective for continuous use.

The adapter is built to operate within a broad temperature range of -20°C to +80°C, enhancing reliability in diverse industrial, laboratory, and commercial environments. Safety features include overcurrent and short-circuit protection to minimize risks of damage to connected equipment.

Compact dimensions of 95 mm length, 43 mm width, and 30.6 mm depth allow easy installation in constrained spaces. The unit meets CE and EN 60950-1 safety and performance standards, assuring compliance and user safety.

This adapter supports input voltages from 100 V AC to 240 V AC, suitable for global mains supply. The fixed bare end input enables customised plug options for different regions. Output voltage is regulated with ±1% load and line regulation to maintain consistent device performance.

The product is ideal for powering small electronics in industrial, commercial, and laboratory settings. It represents a reliable and efficient power supply solution for diverse DC voltage applications. Explore more AC/DC Adapters and power supplies by RS PRO and related brands at EnvMart for all your industrial and electronic needs.
