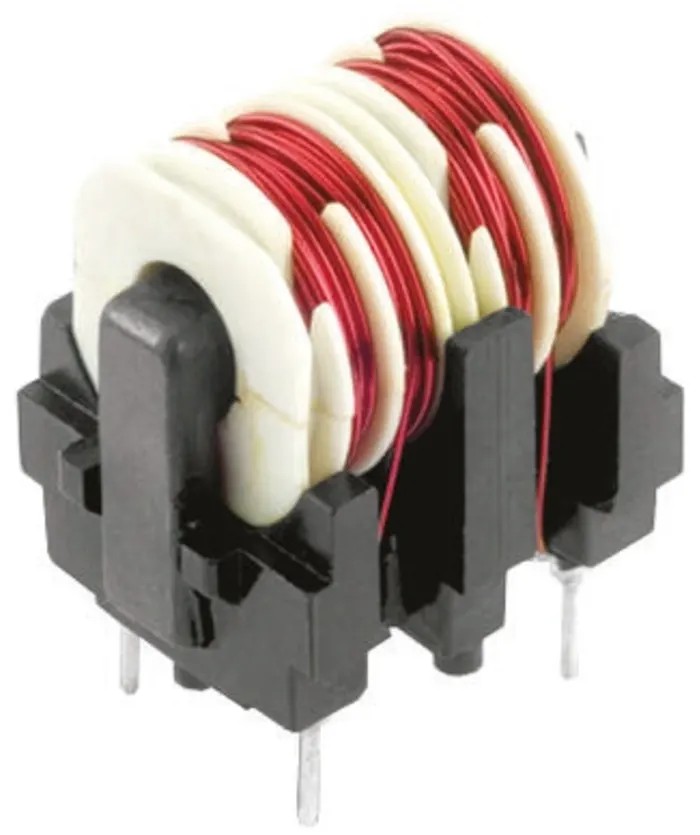

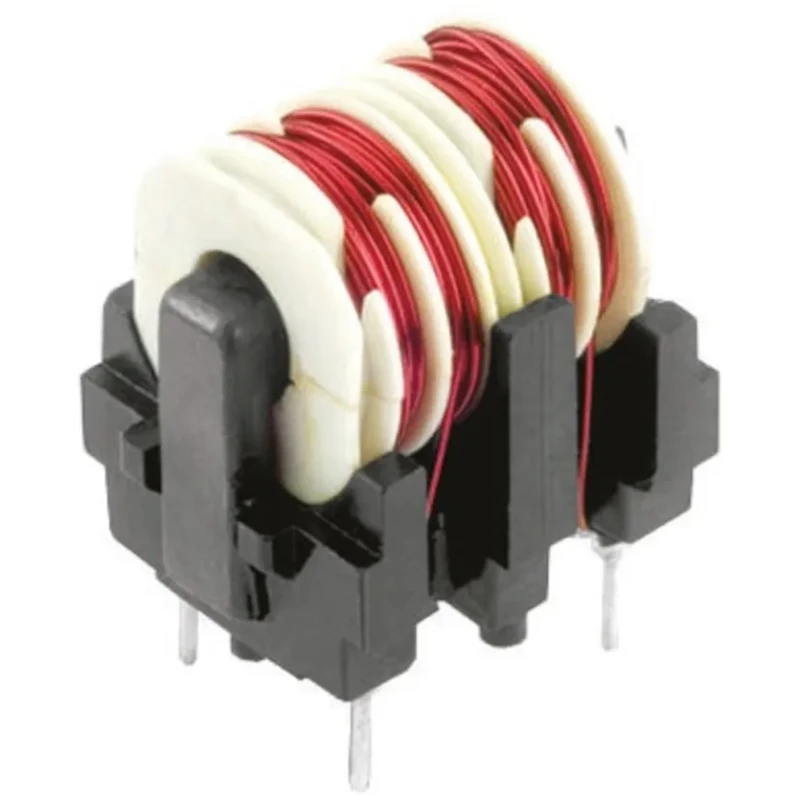

Wurth Elektronik 10 mH Manganese Zinc Ferrite Common Mode Choke 600 mA Idc 710 mΩ Rdc 2000V ac WE-FC 7448640415

Wurth Elektronik 7448640415 is a high-performance 10 mH common mode choke designed with manganese zinc ferrite core for effective interference suppression. It is specifically engineered for applications requiring stable inductance and noise reduction in electronic circuits.

This component supports a maximum DC current rating of 600 mA and features a low DC resistance of 710 mΩ which minimizes power loss and heat generation. The choke is constructed with a radial mount type and 0.8 mm lead diameter, suitable for through-hole PCB mounting, with a lead pitch of 13 mm ensuring secure solder points.

The device's operating temperature range from -40°C to 125°C makes it highly reliable under harsh environmental conditions. Additionally, it can withstand a maximum voltage of 2000 V AC, ensuring safety against voltage spikes.

Compact dimensions of 21.3 mm length, 16.6 mm depth, and 22.5 mm height make it adaptable for space-constrained PCB designs. The manganese zinc ferrite core provides excellent high frequency performance with a tolerance of ±10%, and the device conforms to the automotive standard AEC-Q200 and UL 94 V-0 flammability standard for enhanced reliability in critical systems.

This common mode choke is an ideal choice for switch mode power supplies, electronic ballasts, and other power electronics requiring noise suppression and EMI reduction. Its tubular packaging contains 23 pieces, facilitating bulk usage in manufacturing processes.

This choke supports a maximum DC current of 600 mA for reliable performance. It has a maximum DC resistance of 710 mΩ ensuring low power loss. Designed with a radial mount type featuring 0.8 mm lead diameter and 13 mm lead pitch.

Core made of manganese zinc ferrite providing high frequency suppression with ±10% tolerance. Operates safely at temperatures from -40°C to 125°C with a 2000 V AC voltage rating. Dimensions include length 21.3 mm, width 16.6 mm, and height 22.5 mm for compact PCB design.

Complies with AEC-Q200 automotive standard and UL 94 V-0 flammability rating. Packaged in tubes containing 23 pieces per tube. Explore the high-quality industrial inductors by Wurth Elektronik on EnvMart for your electronic and power supply projects.
