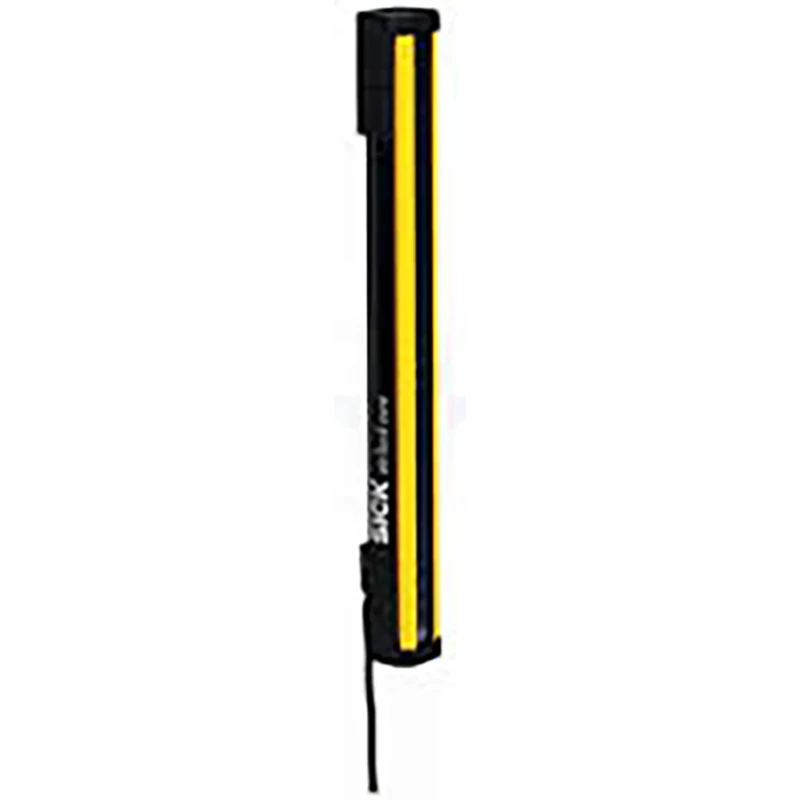

SICK deTec4 Core Series Light Curtain Sender Type 4 Safety Sensor 24V DC 30 mm Resolution

The SICK C4C-SA09030A10000 model from the deTec4 Core Series is a high-precision light curtain sender used for machine safety in industrial automation. This Type 4 safety sensor offers a 30 mm beam resolution, providing reliable detection for protective heights up to 900 mm and widths reaching 15 meters. Its rugged construction with an IP65/IP67 rated enclosure ensures dependable performance in harsh and low-temperature environments down to -30°C.

The device is designed for streamlined installation featuring an innovative bracket system that eliminates blind zones and allows flexible mounting. Integrated LED displays and diagnostic functions reduce installation time and maintenance costs. It includes automatic distance measurements and calibration for protective field widths up to 10 m.

This light curtain is powered by a 24V DC supply and communicates via a 5-Pin M12 male terminal connector compatible with Flexi Loop systems. Its fast maximum response time of 14 milliseconds supports quick safety interventions in line with cULus and CE standards. The compact sender housing dimensions are 913 mm length, 34 mm width, and 30.7 mm height.

Ideal for safety applications across machine building sectors such as food and beverage processing, packaging, and assembly lines, this model enhances operator protection and compliance with international safety regulations.

Equipped with innovative mounting brackets for simple assembly and no blind zones. Features an integrated LED display for easy diagnostics. Protective height of 900 mm with a maximum protective width of 15 m. Operates reliably in harsh environments with an IP65/IP67 enclosure rating.

Compatible with Flexi Loop via a 5-Pin M12 male connector. Supports automatic calibration for protective field widths up to 10 m. Designed for industrial machine safety applications including handling and packaging. Minimum scanning distance of 0 m and maximum scanning distance of 12 m.

Maximum response time of 14 ms ensuring prompt safety action. Durable in ambient temperatures ranging from -30°C to +55°C.

For a complete safety solution, the complementary receiver component should be selected. Explore other Safety Light Curtains and industrial safety sensors on EnvMart for comprehensive machine safeguarding.
