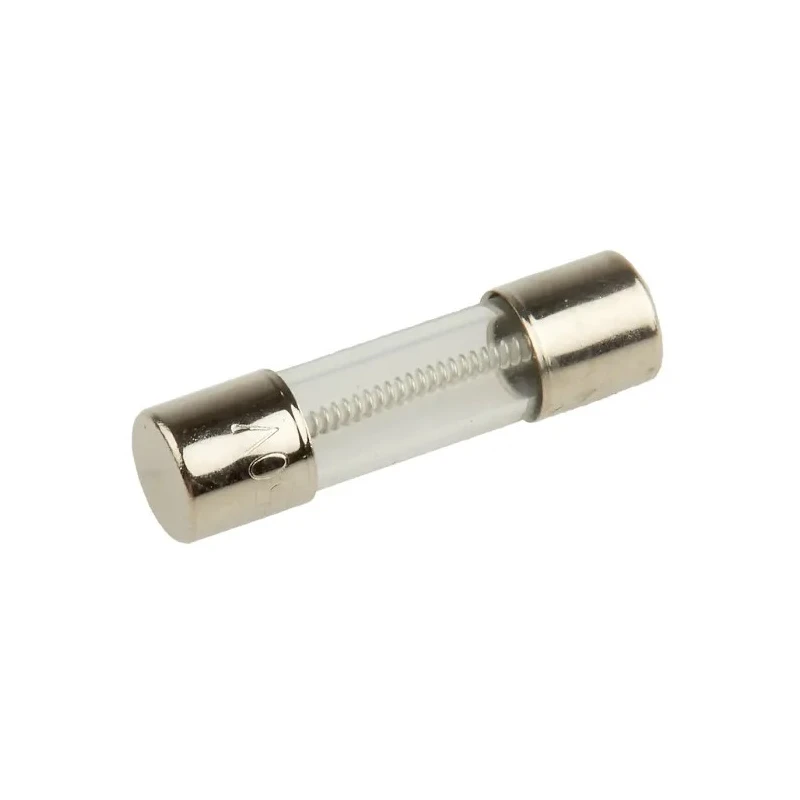

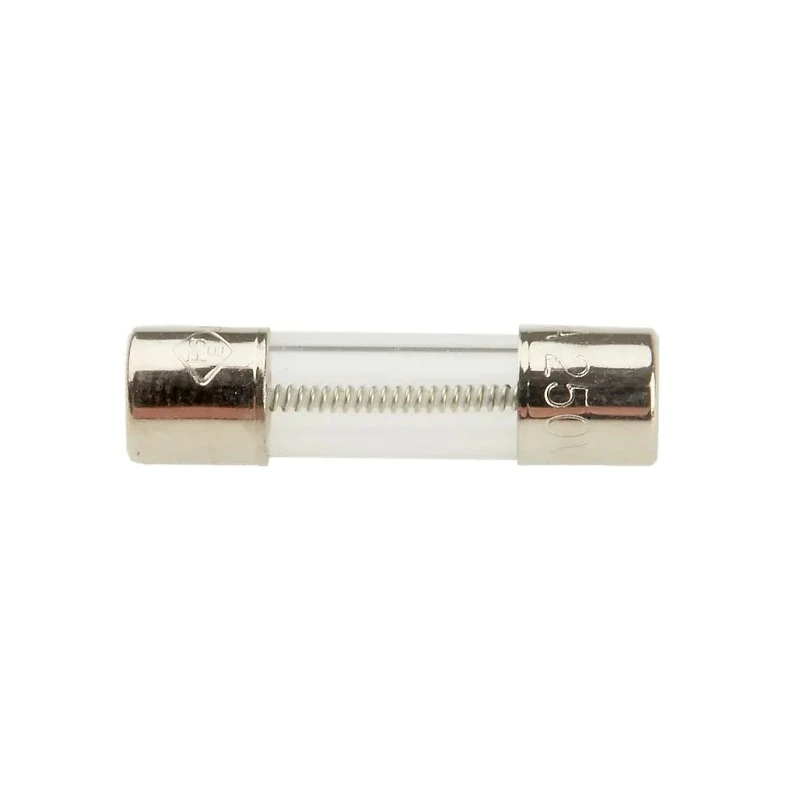

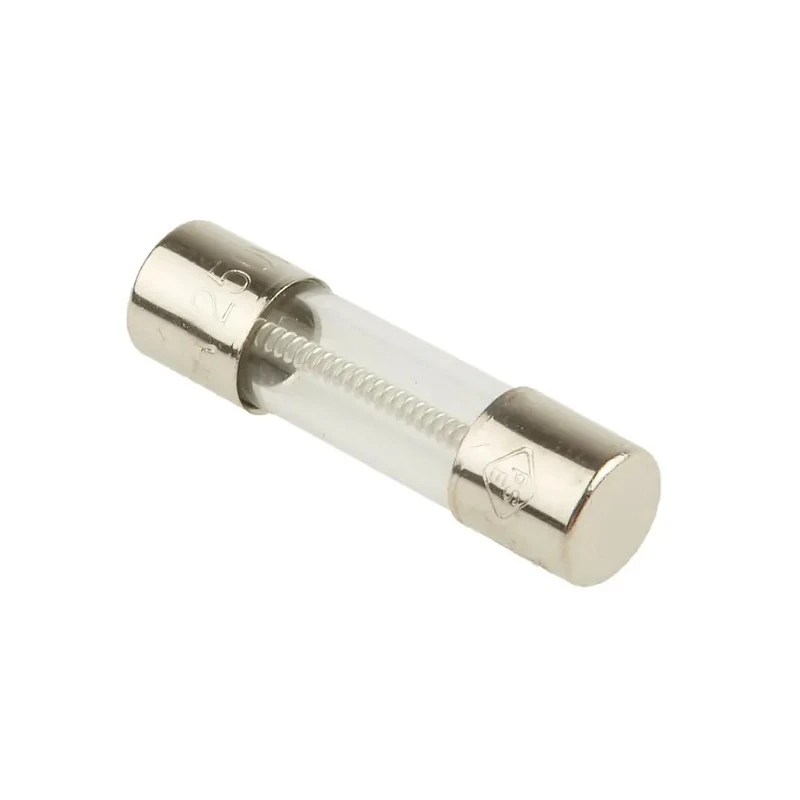

RS PRO Glass Cartridge Fuse 3A 250V AC Time Delay 5 x 20 mm 668-6007

RS PRO 668-6007 Glass Cartridge Fuse is a 3 amp, 250V AC time delay fuse designed for protection against short circuits and overcurrent in electrical devices and internal circuits.

This fuse features a glass body allowing clear visibility of the internal element to determine fuse status immediately. Measuring 5 x 20 mm with a 5.2 mm diameter and overall length of 20 mm, it fits standard 5 x 20 mm fuse holders commonly used in boards and panels.

The time delay T-speed rating offers anti-surge properties, enabling the fuse to tolerate short transient current spikes without blowing prematurely, making it suitable for applications requiring momentary inrush current such as motors, pumps, and air conditioners.

It has a voltage rating of 250 volts AC and operates reliably between -55°C and 125°C. The fuse is of low breaking capacity type, designed to safely open circuits during faults without explosion or rupture.

This cartridge fuse is ideal for protecting electrical appliances in industrial, commercial, residential, and automotive environments. Used in board and panel protection, it effectively safeguards equipment such as motors, refrigeration units, and pumps from damage due to overcurrent conditions.

Glass body construction for visual inspection. 5 x 20 mm cartridge size. 3 amp current rating. 250V AC voltage rating. Time delay T speed for anti-surge protection. Operating temperature range from -55°C to 125°C. Low breaking capacity (LBC) for safe operation.

Suitable for industrial, commercial, automotive, and home use.

RS PRO offers this fuse as part of their series designed for dependable circuit protection. Choose RS PRO fuses for quality, reliability, and safety in a wide range of electrical applications.
