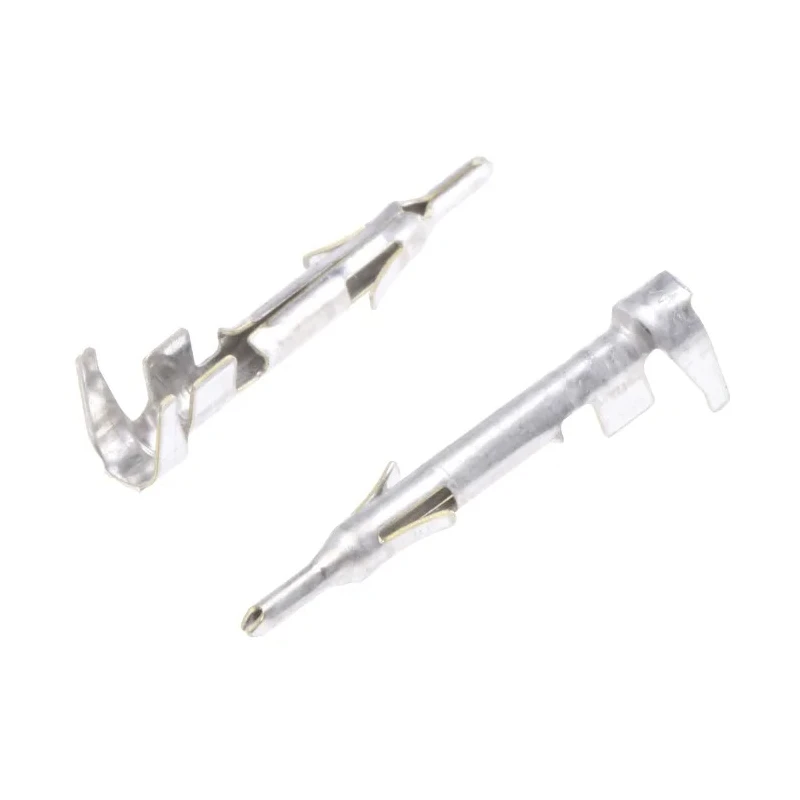

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current 22-18 AWG 16.74mm Length 770987-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current 22-18 AWG 16.74mm Length 770987-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current 22-18 AWG 16.74mm Length 770987-1
Brand: TE Connectivity
SKU: 204994
Price: 0.18 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	3A
Length	16.74mm
Model	770987-1
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.9mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Designed for use with Mini-Universal MATE-N-LOK connector housings.
Contact material is brass with tin plating for reliable conductivity.
Operates safely between -55°C and 105°C temperature range.
Maximum contact resistance is 10 milliohms ensuring low electrical loss.
Termination is by crimp suitable for precise wire connections.
Manufactured in the United States to ensure quality standards.
Compact length of 16.74mm ideal for tight spatial applications.

Product Description

TE Connectivity 770987-1 Mini-Universal MATE-N-LOK Series male crimp terminal is a precision electrical connector designed for industrial, electronic, and manufacturing applications that require secure wire termination and reliable signal transmission. Rated for 3 amps of current, it supports wire sizes ranging from 22 AWG minimum to 18 AWG maximum, accommodating a variety of wiring needs. The contact is made of brass with a tin plating to improve corrosion resistance and electrical conductivity.

This terminal features a crimp termination type, providing a secure and consistent electrical connection when properly applied. Its compact length of 16.74 mm allows effective use in compact assemblies where space is limited. The terminal performs reliably across a wide temperature range from -55°C to 105°C, making it suitable for environments exposed to temperature extremes.

The maximum contact resistance is 10 milliohms, which ensures minimal voltage drop and efficient electrical performance. Although it carries no specific certifications or standards approvals, the terminal is made in the United States and follows rigorous manufacturing quality controls applicable to TE Connectivity products.

Typical applications include PCB connectors and wire housings in electronic equipment, power connectors, and related industrial systems. The terminal seamlessly integrates with Mini-Universal MATE-N-LOK connector housings, forming a versatile connector system used widely for reliable mechanical and electrical connections.

Designed for use with Mini-Universal MATE-N-LOK connector housings. Contact material brass with tin plating enhances conductivity. Crimp termination for secure and consistent connections. Operating temperature range from -55°C to 105°C.

Supports 3A continuous current for low power applications. Wire size range from 22 AWG to 18 AWG. Compact 16.74 mm length to fit tight assemblies. Manufactured in the United States ensuring quality standards. Explore the full range of TE Connectivity products and connectors in the EnvMart catalog for industrial, electronic, and electrical system designs.
