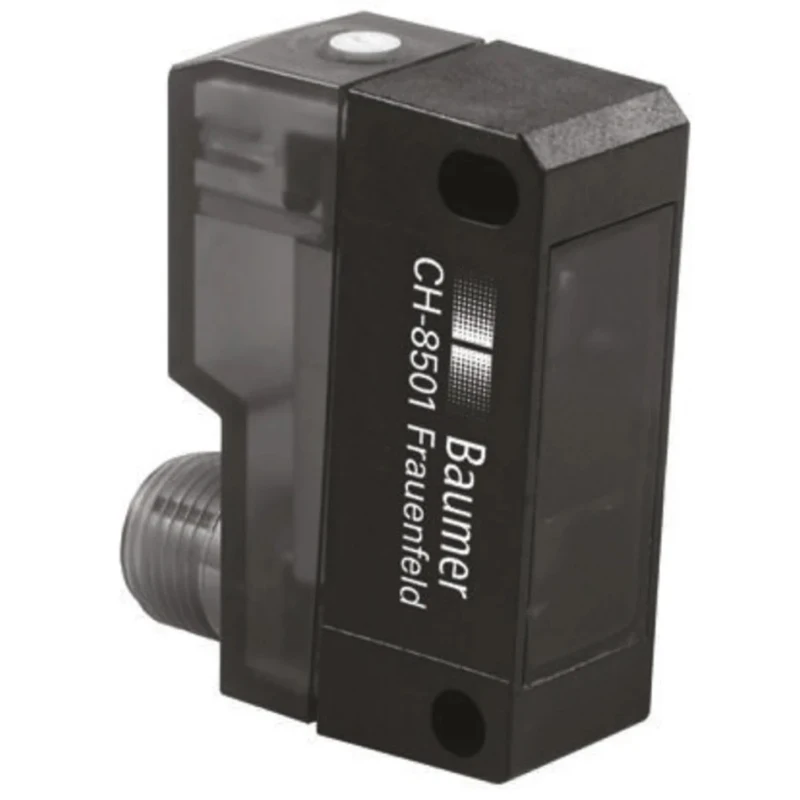

Baumer Diffuse Photoelectric Sensor Block Sensor 30 mm to 500 mm Detection Range PNP Output IP67 FHDK 14P5104/S14

Baumer FHDK 14P5104/S14 diffuse photoelectric sensor is a reliable block sensor designed for precise detection in various automation and control environments. It features a background suppression detection range spanning from 30 mm to 500 mm, making it suitable for long-range sensing tasks. The sensor operates on a PNP output type with a 4-Pin M8 terminal and supports IO-Link interface, enhancing communication capabilities in industrial setups.

Constructed with durable Acrylonitrile Styrene Acrylate (M-ABS) housing, the sensor achieves an IP67 rating, ensuring protection against dust and water ingress for robust performance in harsh conditions. It operates reliably within a temperature range from -25°C to +65°C, suitable for diverse environmental requirements.

The sensor's LED light source emits at a wavelength of 660 nm, providing stable and consistent sensing. Designed for panel mounting, it has compact dimensions of 43 mm height, 14.8 mm width, and 31 mm depth, facilitating easy installation in constrained spaces. With a fast response time of 5 ms, it supports high-speed automation and control operations effectively.

This model complies with IEC standards and is manufactured in Switzerland, ensuring high quality and performance. The sensor does not carry hazardous area certification and features reverse polarity protection along with LED status indication and mechanical distance adjustment for enhanced operational convenience.

Diffuse detection type with background suppression for accurate sensing. PNP output configuration compatible with industrial control systems. Robust IP67 rated housing suitable for harsh industrial environments. Operating temperature range from -25°C to +65°C for wide application suitability.

Compact block sensor design with dimensions 43 mm height, 14.8 mm width, and 31 mm depth. LED light source with 660 nm wavelength ensuring reliable sensing. 4-Pin M8 terminal type with IO-Link interface for easy integration.

Maximum DC voltage of 30V and maximum current rating of 100 mA. Fast 5 ms response time ideal for automation and control applications. Manufactured in Switzerland with IEC standards compliance.

This Photoelectric Sensor is ideal for industrial automation, manufacturing process control, robotics, and laboratory instrumentation applications. It offers reliable long-range diffuse sensing in a compact, rugged form factor.
