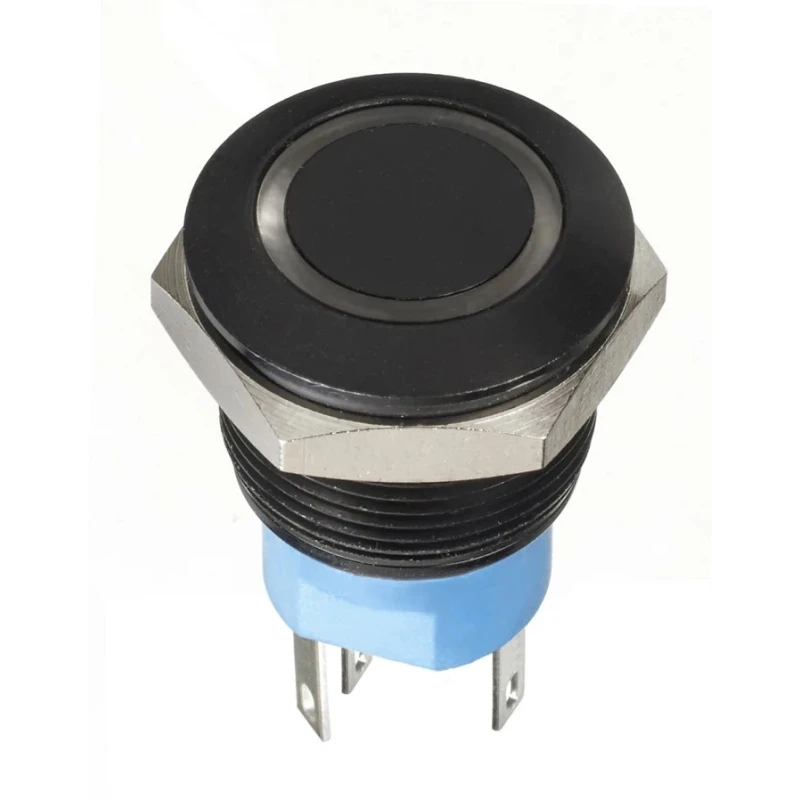

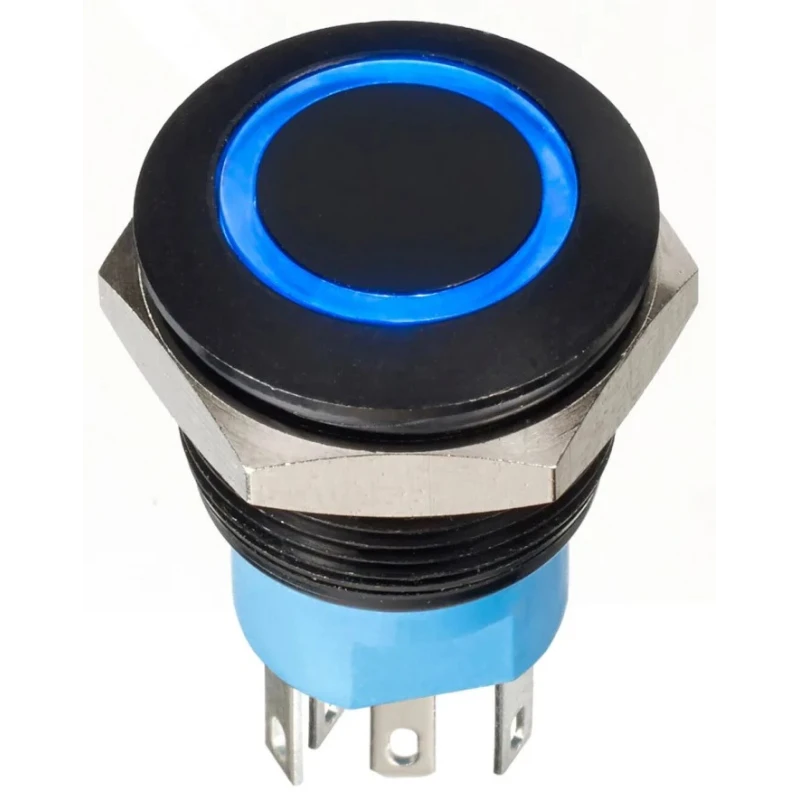

Apem AV Series Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, DPDT, Blue LED, IP67 AV910220000870K
Specifications
| Country of Origin | France |
|---|---|
| Brand | Apem |
| Length | 200mm |
| Model | AV910220000870K |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | NC/NO |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Quick Connect, Solder |
| Standards/Approvals | CSA, UL |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 30V dc |
| Actuator Style | Round |
| Switch Contact Current | 1A |
Key Features
- Compact panel mounting with a precise 19.2 mm cutout size.
- Double Pole Double Throw (DPDT) contact type for versatile switching.
- Blue LED illumination indicates switch status effectively.
- Momentary operation for safety and control applications.
- Robust IP67 rating ensures protection against dust and water immersion.
- Suitable for operating voltages up to 30 V dc and contact current of 1A.
- Wide operating temperature range from -30°C to 70°C.
- Round black actuator with quick connect and solder terminal options.
Product Description
Apem AV910220000870K is an illuminated momentary push button switch designed primarily for panel mounting applications where a 19.2 mm cutout is standard. This DPDT (Double Pole Double Throw) switch incorporates a blue LED indicator to provide clear visual feedback of the switch state.
The switch features a robust IP67 rating, making it fully protected against dust ingress and capable of withstanding temporary immersion in water. Its construction ensures reliability under harsh environmental conditions including rain, frost, salt exposure, UV radiation, and vandalism, making it well suited to industrial, automation, electrical, and control system applications.
Operating efficiently at a nominal 30 V dc voltage and 1A contact current, this switch supports a wide temperature range from -30°C to 70°C, ensuring consistent performance in varied climates. The switch actuator is round and black in color, equipped with quick connect and solder-compatible terminals to accommodate diverse wiring preferences.
Certified to CSA and UL standards, the switch meets stringent safety and quality criteria required in professional electrical installations. Measuring approximately 200 mm in length, this product is manufactured in France with superior materials to withstand demanding industrial environments.
Compact panel mount design with 19.2 mm cutout size. DPDT configuration for versatile circuit control. Blue LED illumination for operational status indication. Momentary switch action for transient operation. IP67 rated for dust tightness and water immersion protection.
Operates at 30 V dc with a 1A contact current rating. Wide operational temperature range from -30°C to 70°C. Round black actuator and multiple terminal options. CSA and UL approved for industrial compliance. Manufactured in France with high-quality materials.
This Apem AV Series switch is ideal for electrical automation, control panels, industrial machinery, and other applications demanding reliable push button control with illumination and high ingress protection.
Explore Apem's range of Push Button Switches and components at EnvMart for a complete suite of industrial-grade switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch requires a panel cutout size of 19.2 mm.
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing versatile circuit control.
It operates at a nominal voltage of 30 V dc and has a contact current rating of 1A.
The switch has an IP67 rating, making it dust-tight and capable of withstanding temporary immersion in water.
It can operate within a temperature range of -30°C to 70°C.
This switch is equipped with quick connect and solder-compatible terminals to accommodate various wiring preferences.
The actuator is black, and the LED illumination is blue, providing clear visual feedback of the switch state.
This product is manufactured in France.
It is certified to CSA and UL standards, ensuring compliance with safety and quality criteria.
This model features a momentary switch operation, designed for transient control applications.
The switch measures approximately 200 mm in length.
It is suitable for use in electrical automation, control panels, and industrial machinery requiring reliable push button control with illumination.
