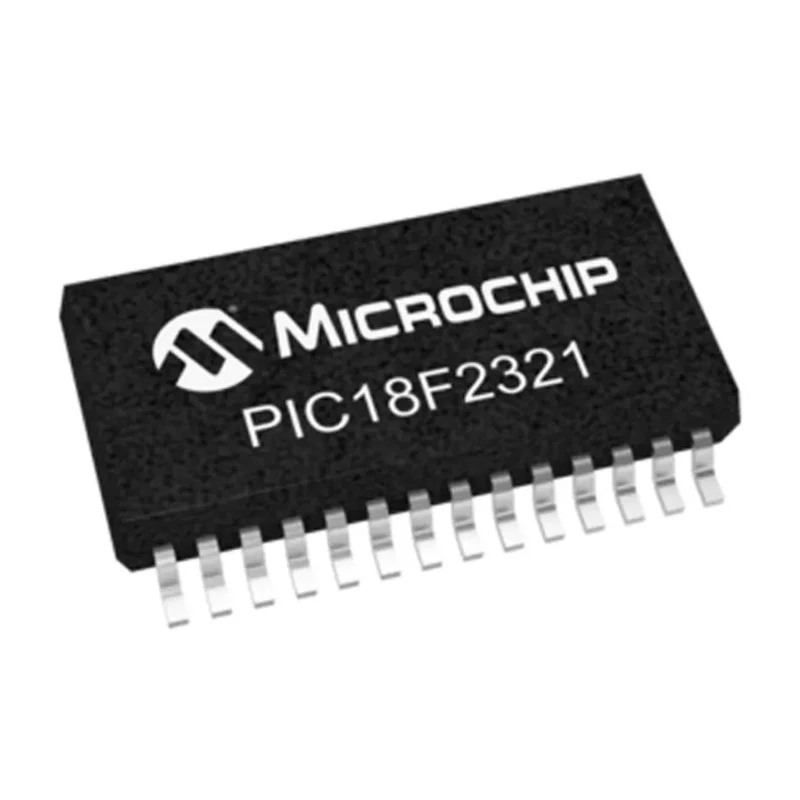

Microchip 8 bit PIC PIC18F Microcontroller 40 MHz 8 kB FLASH 28-Pin SSOP PIC18F2321-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC18F2321-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | NVMREG |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 8, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Equipped with an 8-bit PIC device core for versatile embedded applications.
- Offers 512-bit RAM and 256-byte Data EEPROM for efficient data storage.
- Includes 36 programmable I/O pins for extensive interfacing options.
- Integrated 10 x 10-bit analogue-to-digital converters supporting precise signal processing.
- Operates reliably within a wide temperature range from -40°C to 85°C.
- Features multiple timers and advanced peripherals including comparators and DACs.
- Includes nanoWatt XLP technology for extreme low power consumption in energy-sensitive designs.
- Supports in-circuit serial programming and debugging for streamlined development.
Product Description
Microchip PIC18F2321-I/SS is an advanced 8-bit PIC microcontroller operating at a maximum clock speed of 40 MHz, delivering high performance for embedded system designs. Featuring 8 kB of FLASH program memory, 512 bits of RAM, and 256 bytes of Data EEPROM, it supports extensive program and data storage.
This microcontroller employs the PIC18 architecture with a 31-level hardware stack and a 77 instruction set, optimized for reliable embedded application execution. It includes a configurable internal oscillator with ±1% accuracy, enhancing timing flexibility.
Designed with 36 programmable I/O pins, the PIC18F2321 supports multiple interfacing options, including one 5-bit DAC, two analogue comparators, and ten 10-bit ADC channels, facilitating complex signal processing tasks.
Operating temperature range spans from -40°C to 85°C, making it suitable for industrial and commercial environments. It incorporates various power management features such as nanoWatt XLP technology to minimize power consumption.
8-bit PIC Device Core ensures efficient operation. 40 MHz Maximum CPU speed for high performance. 8 kB Flash Program Memory with 512-bit RAM and 256-byte EEPROM. 36 Programmable I/O Pins for versatile interface. 10 x 10-bit ADCs and 2 Analogue Comparators.
nanoWatt XLP technology for low power usage. Support for in-circuit serial programming and debugging. Compact 28-Pin SSOP Surface Mount Package.
This microcontroller is ideal for industrial, commercial, and consumer embedded electronics applications requiring dependable processing and low power consumption. Its robust features make it suitable for automotive, communications, and control systems.
Explore a wide range of Microchip Microcontrollers and electronic components available at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, providing high performance for embedded applications.
This model features 8 kB of FLASH program memory, allowing for extensive program storage.
It includes 36 programmable I/O pins, offering versatile interfacing options for various applications.
The PIC18F2321-I/SS operates reliably within a temperature range of -40°C to 85°C, suitable for industrial environments.
This model includes ten 10-bit ADC channels and two analog comparators for precise signal processing.
It has a RAM size of 512 bits, which supports efficient data handling for embedded applications.
The microcontroller comes in a compact 28-Pin SSOP surface mount package, facilitating easy integration into designs.
This model supports a supply voltage range from 1.8V to 5.5V, allowing for flexible power management.
It includes four timers, which can be utilized for various timing and control functions in embedded systems.
This microcontroller incorporates nanoWatt XLP technology, designed for extreme low power usage in energy-sensitive applications.
It is compliant with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
This model utilizes a RISC instruction set architecture, optimized for efficient execution of embedded applications.
