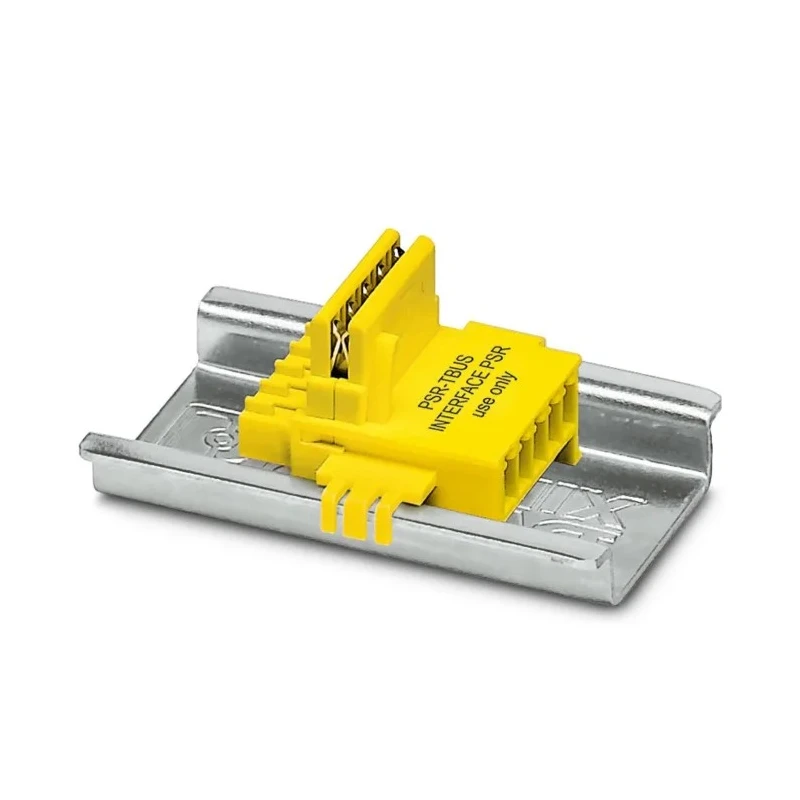

Phoenix Contact PSR-TBUS Series Multi-application Modular DIN Rail Connector 2890425

Phoenix Contact 2890425 PSR-TBUS Series DIN Rail Connector is a multi-application modular connector system enabling tailored safety relay solutions for industrial automation and control applications. Designed and manufactured in Germany, this DIN rail-mounted device facilitates the easy assembly of safety systems up to 10 modules with a total of 42 contacts, enhancing protective device connectivity and control integrity.

The PSR-TBUS system operates with a 24V DC supply voltage and provides semiconductor outputs for reliable switching. Automatic operating mode identification eliminates the need for manual switch settings or parameter configurations, streamlining commissioning and maintenance processes.

Integral to safety system functionality, the connector works in conjunction with a master relay (PSR-SDC) that monitors emergency stops, guard doors (both interlock and non-contact), and optical safety devices such as light curtains. The T-BUS interface enables safe and simplified cross-wiring of supply voltage, enable signals, and confirmation paths, reducing wiring complexity and improving system reliability.

Additional extension modules such as PSR-URM4-B and PSR-URD, offering undelayed and drop-out delay contacts respectively, can be controlled and monitored over a single channel via the T-BUS interface. The feedback loop can be closed with the use of the PSR-TBUS-TP connection plug, ensuring comprehensive safety monitoring.

Quick system expansion supports up to 10 modules and 42 contact points. Automatic operating mode detection eliminates complex setup. Operates with 24V DC supply voltage and semiconductor output for efficient switching. T-BUS safe cross-wiring reduces traditional wiring complexity and errors.

Compatible with master relay PSR-SDC for monitoring emergency stop and safety devices. Rear interface enables connection and control of extension modules via T-BUS. Constructed to meet RoHS standards and manufactured in Germany.

This DIN Rail connector is suitable for diverse industrial environments including manufacturing automation, machine safety compliance systems, and process control safety. Its modularity and reliable operation make it an essential component for engineering safe, expandable safety relay networks.

Explore our comprehensive catalog for other DIN Rail connectors and related safety relay modules to design flexible and efficient safety systems. Phoenix Contact products assure precision, reliability, and compliance with industry safety standards.
