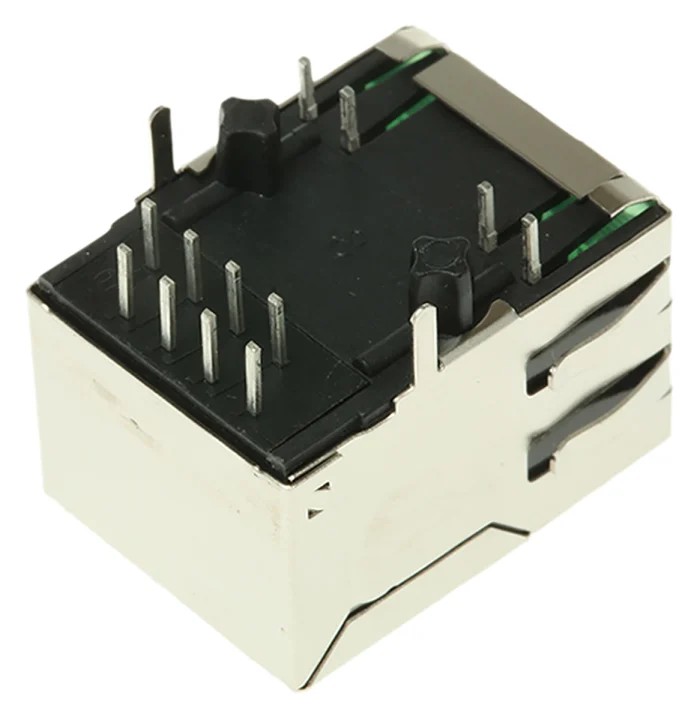

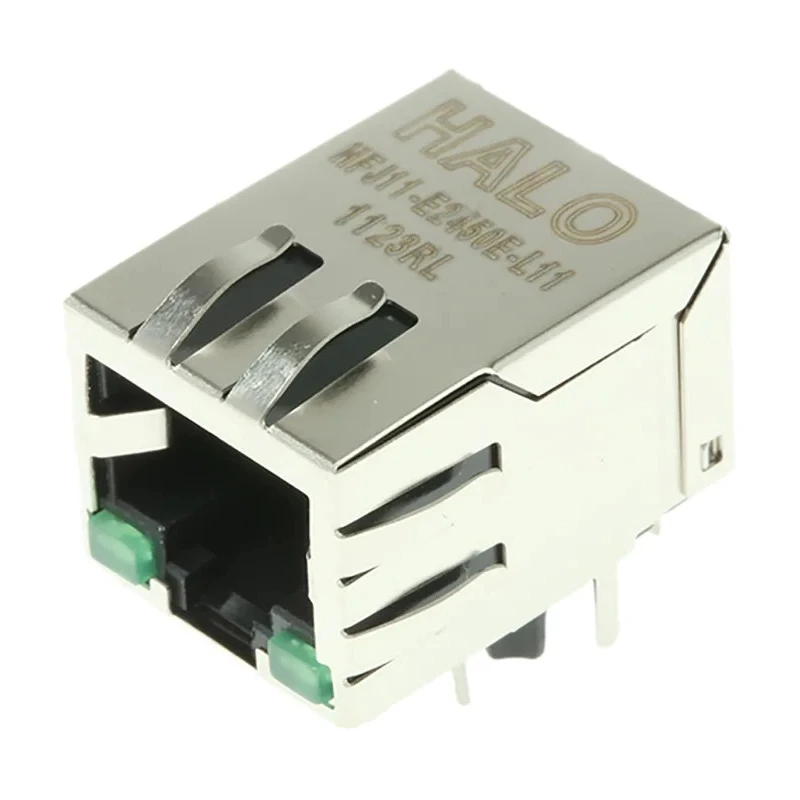

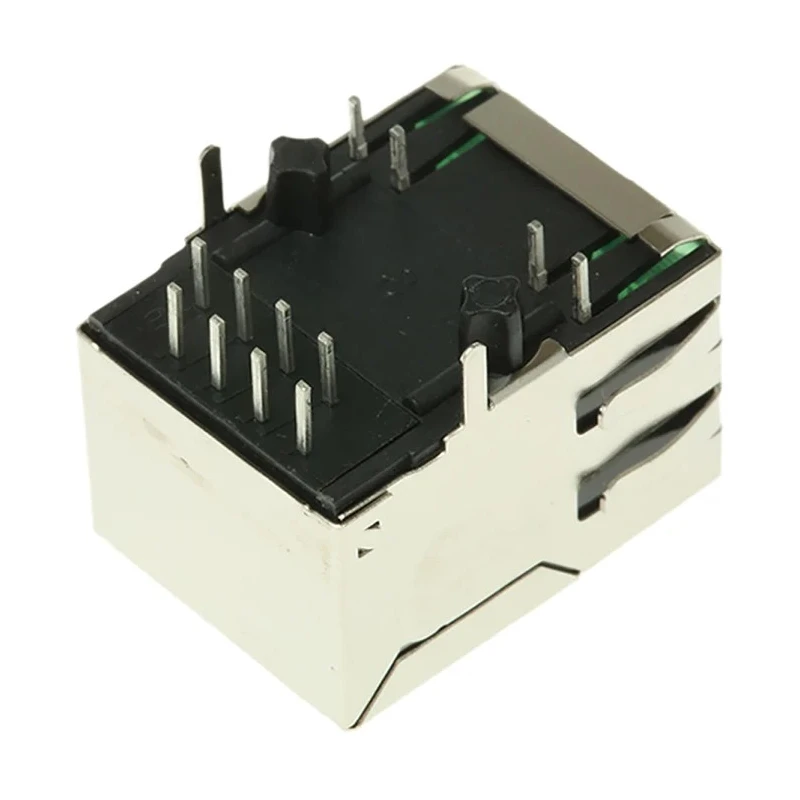

Halo Electronics FastJack Series RJ45 Connector Female Through Hole Right Angle 1 Port 8 Way RJ45

Halo Electronics HFJ11-E2450E-L11RL FastJack Series RJ45 Connector Female is a through-hole mounted modular jack connector designed for Ethernet networking applications. This connector provides excellent reliability and high-quality performance suitable for industrial, telecommunications, and networking environments requiring secure and stable Ethernet communication up to 1000 GB.

The connector features a female RJ45 port with 8-way contact configuration, plated with gold for enhanced conductivity and corrosion resistance. Its right-angle orientation facilitates optimal PCB layout and space management on circuit boards. The connector body is constructed from black Polyester housing rated UL94V-0 flame retardant, ensuring durability and safety in various operating conditions.

Designed for through-hole soldering, the connector is compatible with lead-free wave soldering processes, supporting environmentally friendly manufacturing standards. It includes integrated transformer/choke components to maintain signal integrity, minimize interference, and meet stringent network requirements. The device supports operating temperature ranges from -40°C to 85°C, making it suitable for both low and high-temperature applications.

This RJ45 connector also incorporates magnetic functionality and LED indicators, enhancing usability and status monitoring in networking systems. Its dimensions measure 22mm in depth, 16mm in length, and 14mm in width, providing a compact footprint for PCB integration.

Applications include use in industrial equipment, telecommunications infrastructure, commercial networking solutions, and electronic manufacturing. The Halo Electronics FastJack series is known for delivering reliable Ethernet connectors with superior build quality and compliance to technical standards.

Compatible with lead-free wave soldering for through-hole mounting. Features gold contact plating for reliable connectivity. Supports one port with eight ways in a right angle orientation. Incorporates transformer/choke components for signal integrity.

Suitable for operating temperatures from -40°C to 85°C. Equipped with magnetic and LED features. Constructed with black Polyester UL94V-0 housing material. Dimensions are 22mm depth, 16mm length, and 14mm width. Designed for PCB mounting with a through hole termination type.

Meets requirements for Ethernet communications up to 1000 GB. Explore a comprehensive selection of Ethernet Connectors and accessories at EnvMart for your industrial and commercial networking needs.
