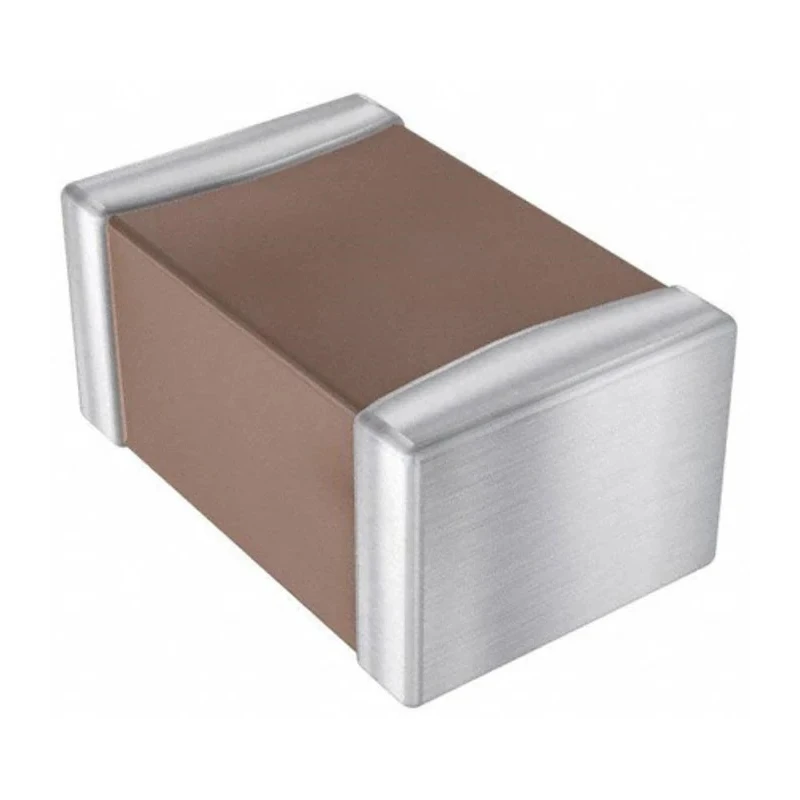

KYOCERA AVX 22 pF Multilayer Ceramic Capacitor, 50V dc, ±5 %, Surface Mount, C0G Dielectric, 0805 Package 08055A220JAT2A

KYOCERA AVX 08055A220JAT2A is a high-quality multilayer ceramic capacitor designed for use in surface mount electronic circuits. Featuring a capacitance of 22 pF and rated for 50V DC operation, it provides precise tolerance of ±5 % and employs the reliable C0G (NPO) dielectric class for minimal capacitance change across temperature variations.

The capacitor is housed in a compact 0805 package measuring 2.01 mm in length, 1.25 mm in width, and 0.94 mm in height. This size is ideal for dense PCB layouts common in mobile devices and consumer electronics. Its termination includes nickel barrier with tin plating to ensure strong solder joints and electrical performance.

Operating temperature span ranges from -55°C up to +125°C, making it suitable for environments demanding thermal stability. This product series (KGM) offers one of the most temperature stable dielectrics available, with capacitance change less than ±0.3% over the specified temperature range, perfect for critical filter and timing applications.

Typical applications include mobile phones, video and tuner designs, and decoupling circuits where consistent capacitance under varying environmental conditions is required. Its Class I ceramic classification ensures high suppression of noise and superior electrical characteristics.

Packaged on reels, these capacitors support efficient automated pick-and-place manufacturing processes to optimize production throughput. This component does not have automotive standards compliance and carries no special certification beyond industry-typical RoHS compliance.

This capacitor uses the stable C0G (NPO) dielectric providing excellent temperature stability. The 0805 package size supports compact surface mount PCB assemblies. Operating temperature range is from -55°C to +125°C ensuring reliability under harsh conditions.

Nickel barrier terminations with plated tin provide robust electrical connectivity and solderability. Suitable for mobile phones, video, tuner designs, and decoupling applications requiring Class I stability. Packaging is on reel for ease of automated assembly processes.

This multilayer ceramic capacitor is a reliable choice for industrial, consumer electronics, and telecommunications manufacturing applications. Explore more KYOCERA AVX products and Multilayer Ceramic Capacitors within EnvMart's extensive electronic component selections.
