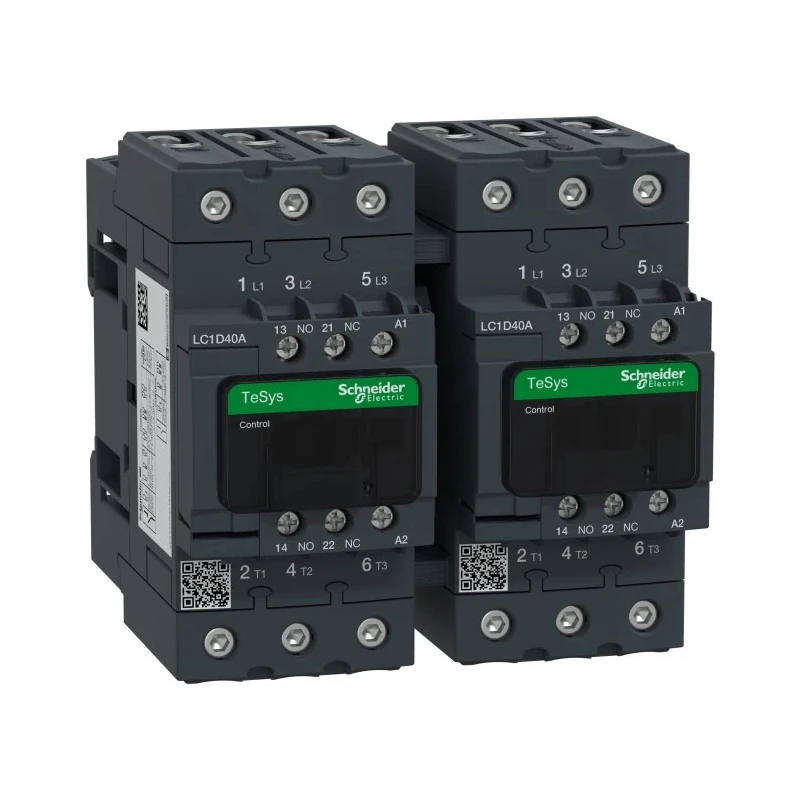

Schneider Electric TeSys LC2D40AE7 3-Pole Contactor, 48V AC Coil, 40A, 8.5 kW, 3 NO Auxiliary Contacts, 690V AC

Schneider Electric LC2D40AE7, part of the TeSys Deca series, is a 3-pole reversing contactor designed specifically for motor control applications up to 40A, with a coil voltage of 48V AC at 50/60Hz. It is suitable for resistive loads and motor control in industrial, commercial, and manufacturing environments.

The contactor features three normally open (3 NO) power poles and includes 2 normally open and 2 normally closed auxiliary contacts (2 NO + 2 NC), which provide flexible control options and safety system integration. It incorporates a mechanical interlock facilitating smooth reversing operations without electrical interlocking complexities.

This device is compact with precise dimensions of length 132mm, width 165mm, and depth 142mm, making it ideal for tight control panel spaces with DIN rail mounting capability. Its operational temperature range of -5°C to 60°C ensures enduring performance in diverse industrial settings.

Power connections utilize EverLink BTR screw terminals guaranteeing consistent tightening pressure and high reliability during operation. The contactor supports high electrical endurance, guaranteed up to 1.6 million mechanical cycles at 40A AC-3 440V, meeting the needs of demanding motor switching tasks.

Compliant with multiple international standards including UL, RoHS, IEC, EAC, CSA, and CCC, the LC2D40AE7 is Green Premium certified aligning with RoHS/REACh directives for environmentally responsible manufacturing.

This contactor is an excellent choice for industrial automation, HVAC motor controls, manufacturing machinery, and heavy-duty electrical systems requiring robust and reliable Contactors with reversing functionality.

Equipped with a 48V AC coil operating at 50/60Hz for versatile control. Offers 3 normally open (NO) power poles and 2 NO plus 2 NC auxiliary contacts. Supports a rated current of 40A and contact voltage up to 690V AC for heavy-duty applications.

DIN rail mounting facilitates easy installation in control panels. Includes mechanical interlock and pre-wired reversing circuit for motor control operations. Compact dimensions with 142mm depth, 132mm length, and 165mm width save panel space.

Suitable for operating temperatures from -5°C to 60°C, ensuring reliability in varied environments. Power connections use EverLink BTR screw terminals for constant tightening pressure and durability. High electrical durability with 1.6 million cycles at 40A AC-3 440V, ideal for demanding motor switching needs.

Certified to multiple standards including UL, RoHS, IEC, EAC, CSA, CCC, and compliant with Green Premium RoHS/REACh regulations. Explore EnvMart for more Schneider Electric automation & control products tailored for your industrial needs.
