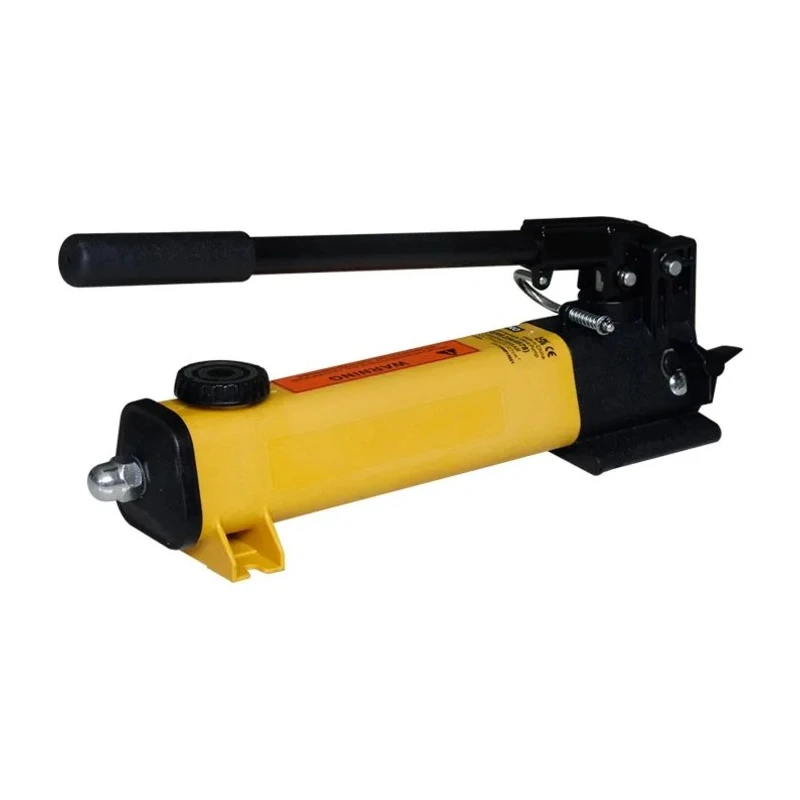

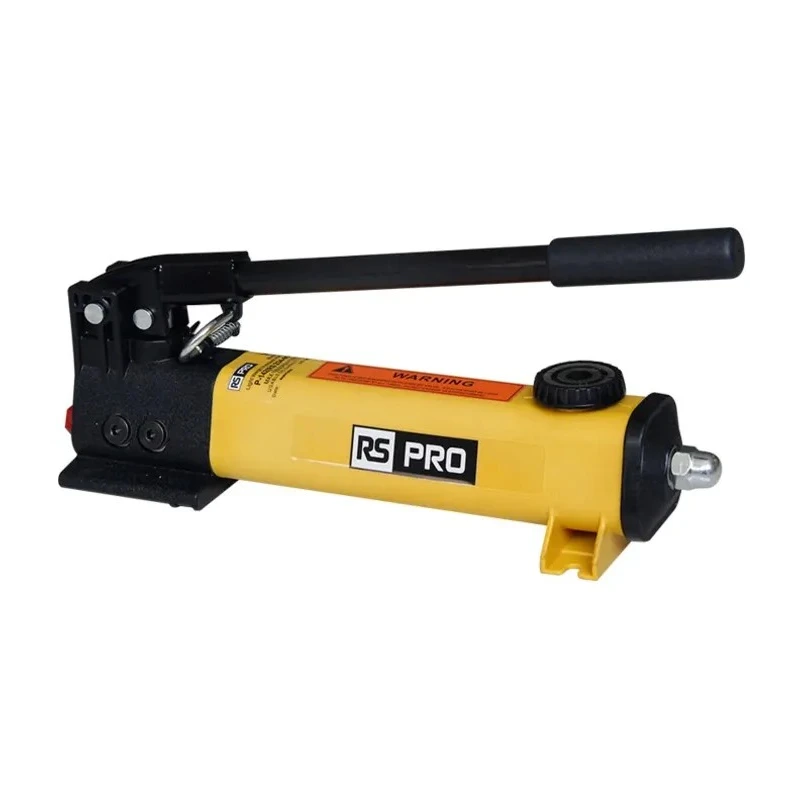

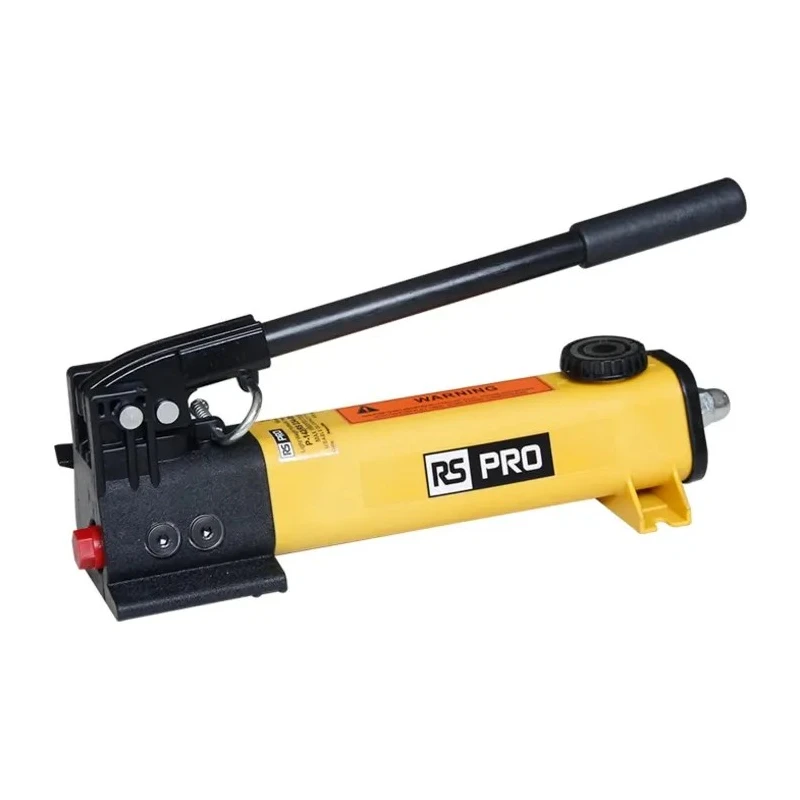

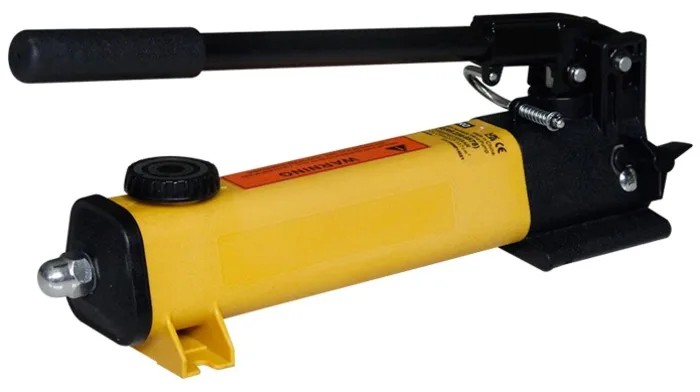

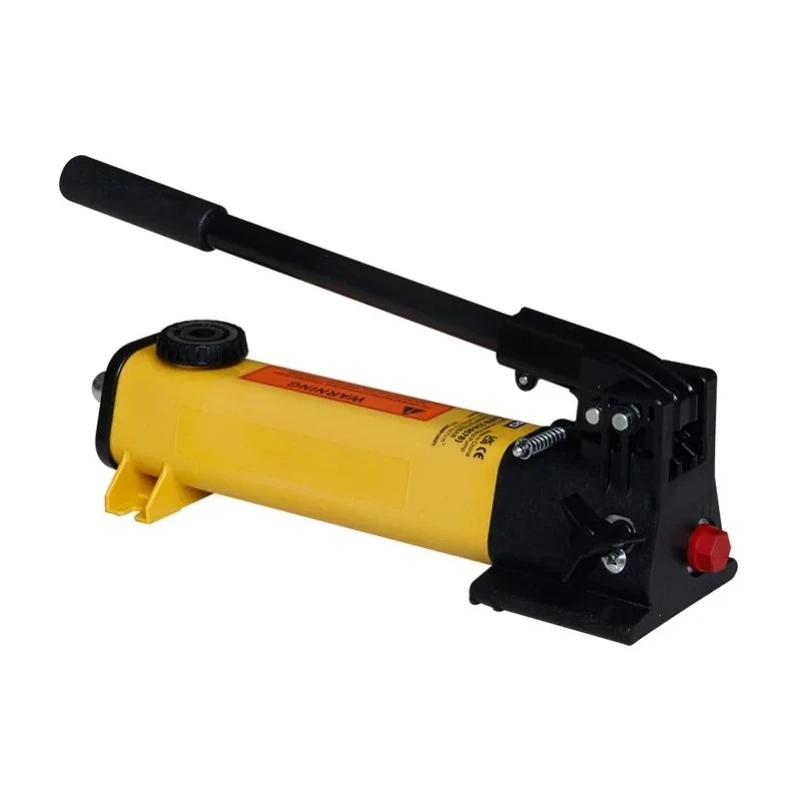

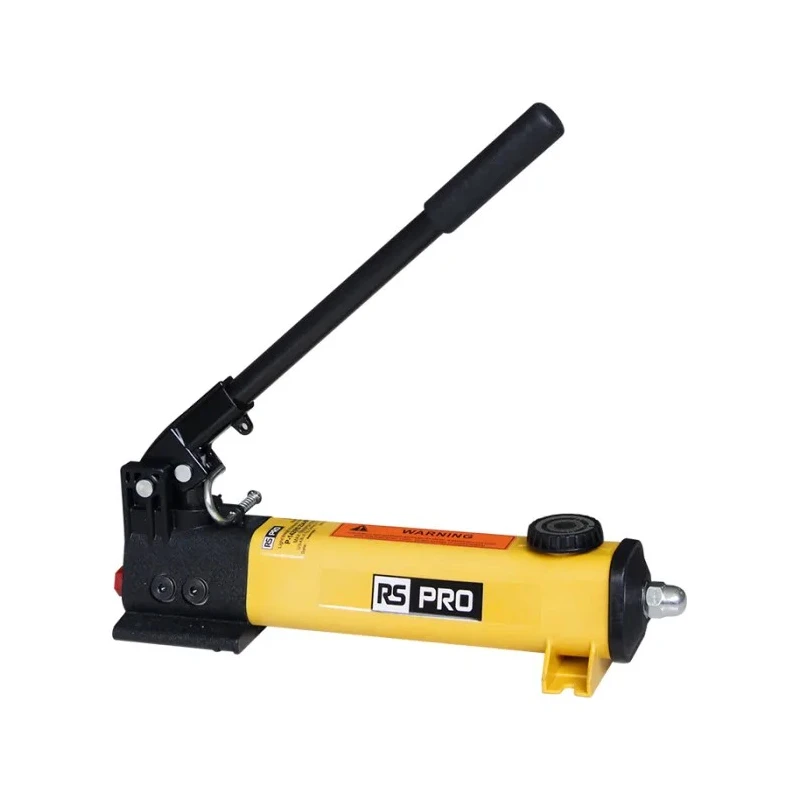

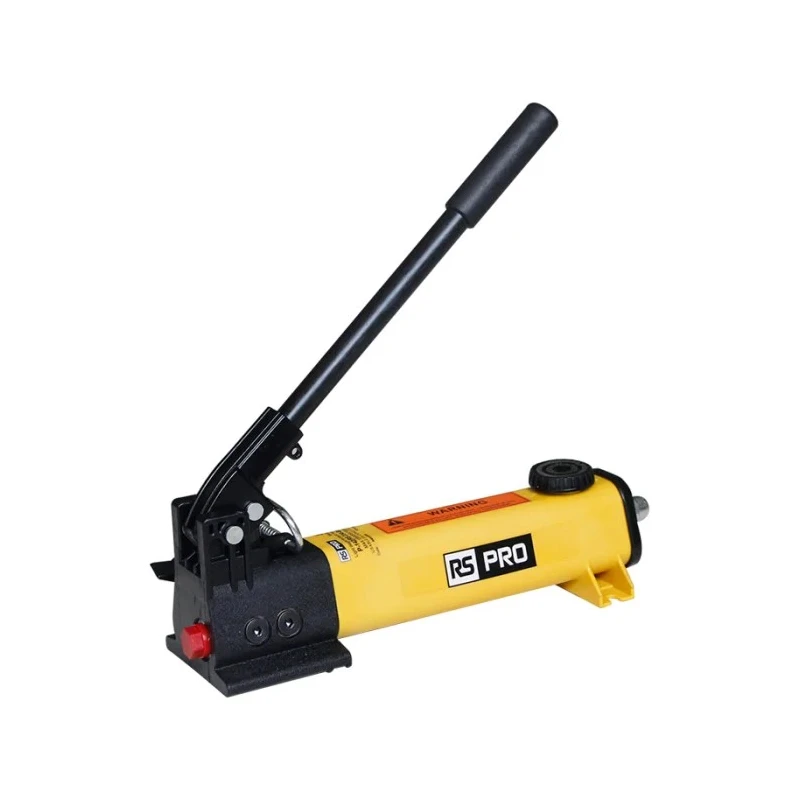

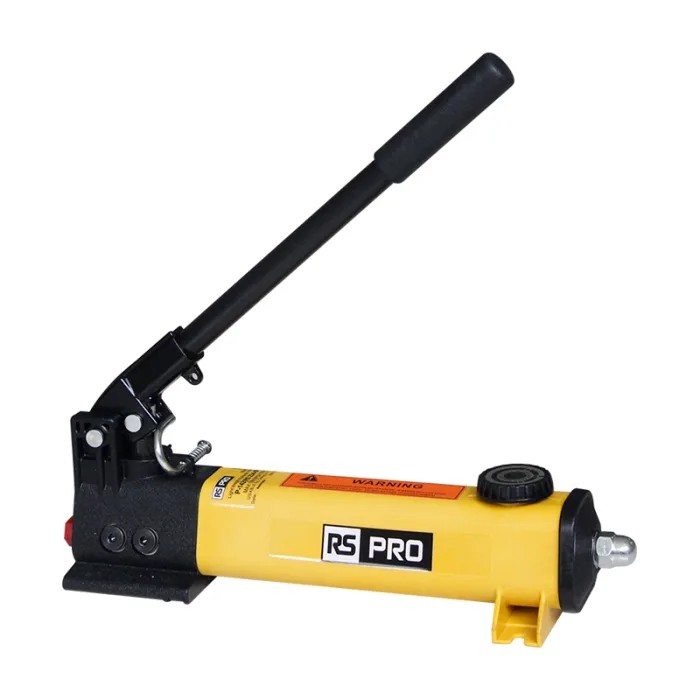

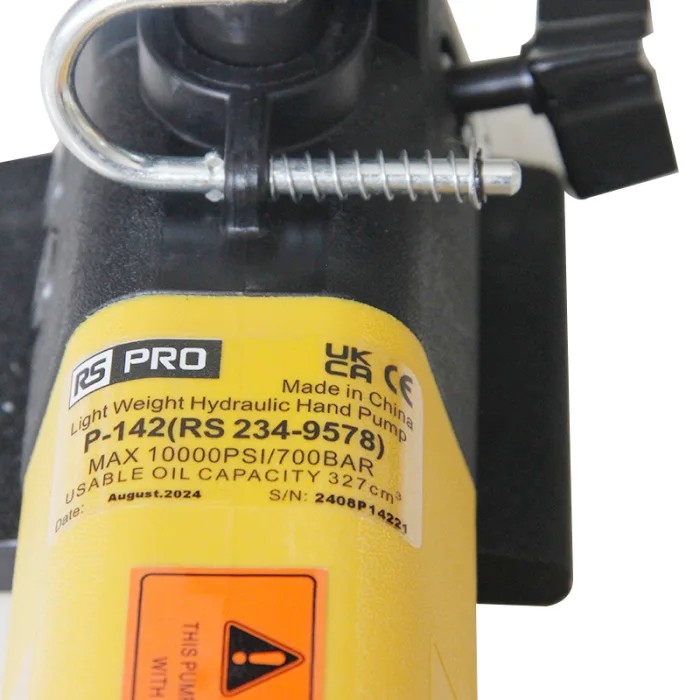

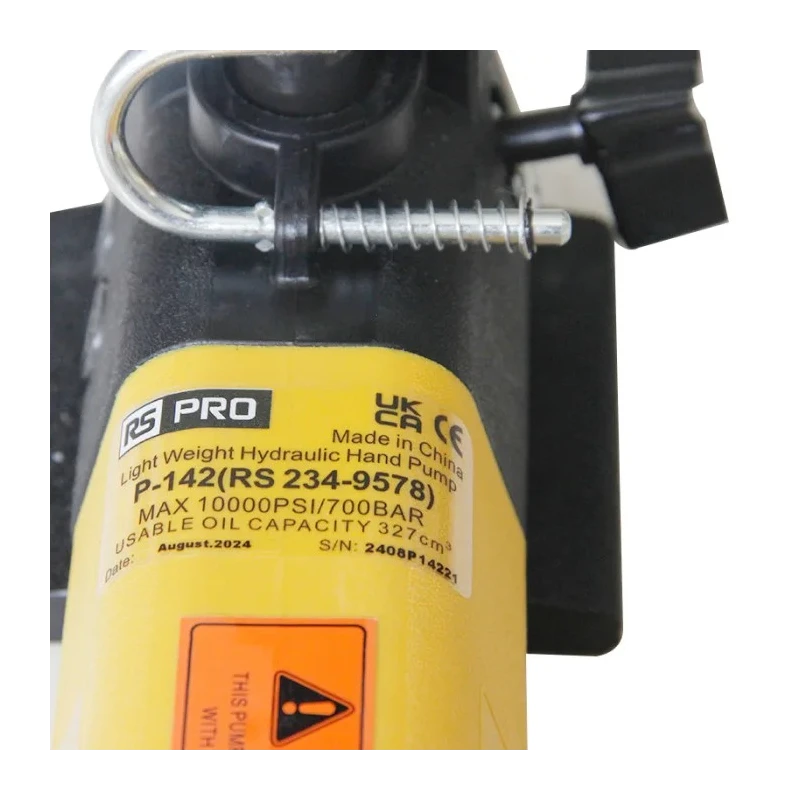

RS PRO Two Speed Hydraulic Hand Pump 0.327 L Oil Capacity 12.7 mm Cylinder Stroke 700 bar 234-9578
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 700 bar |
| Height | 137mm |
| Length | 310mm |
| Model | 234-9578 |
| Gross Weight | 2.5kg |
| Width | 127mm |
| Pump Type | Hand |
| Interfaces | Landscaping |
| Outlet Type | NPT1/4 |
| Displacement Per Stroke 1st Stage | 3.62cm³ |
| Usable Oil Capacity | 0.327L |
| Displacement Per Stroke 2nd Stage | 0.9cm³ |
| Maximum Handle Effort | 32.7kg |
| Cylinder Stroke | 12.7mm |
| 1st Stage Operating Pressure | 13bar |
| 2nd Stage Operating Pressure | 700bar |
| Plunger Stroke | 12.7mm |
| Standards/ApprovalsCE, EN 809 | 1998+A1:2009, EN ISO 12100:2010, UKCA |
| CE, EN 809 | 1998+A1:2009, EN ISO 12100:2010, UKCA |
| RS PRO PU Hydraulic Hose Assembly - 2M, RS stock no | 291-727 |
Key Features
- This pump features a two-speed operation with automatic switching for versatile use.
- It has a 12.7 mm cylinder stroke and displacement per stroke of 3.62 cm³ on the first stage and 0.9 cm³ on the second.
- The pump includes an internal pressure relief valve to prevent overload and ensure safety.
- Its lightweight glass-filled nylon reservoir and nylon encapsulated aluminum base provide corrosion resistance.
- The lower handle design minimizes operator fatigue during extended use.
- Engineered for use with hydraulic cylinders, pullers, and flange spreaders.
- Provides easy operation without requiring a power source.
- Compact construction allows easy carrying and storage.
Product Description
RS PRO 234-9578 Hydraulic Hand Pump offers a compact, lightweight solution with a 0.327 L usable oil capacity and two-speed operation to suit various industrial, construction, and maintenance tasks.
This hand-operated hydraulic pump is engineered to deliver up to 700 bar maximum operating pressure with an efficient 12.7 mm cylinder stroke. Its displacement volumes per stroke are 3.62 cm³ for the first stage and 0.9 cm³ for the second, providing precise hydraulic control.
The pump incorporates an internal pressure relief valve to protect from overload, and its durable construction features a glass-filled nylon reservoir combined with a nylon encapsulated aluminum base for enhanced corrosion resistance, extending tool life in tough environments.
Designed for ease of use, the hydraulic hand pump includes a lower handle to minimize operator fatigue, a non-conductive fiber-glass handle to ensure safety, and automatic switching between speeds to streamline operations. It is widely compatible with hydraulic cylinders, pullers, and flange spreaders.
This tool is ideal for bending, cutting, assembling, and dismantling processes in industrial manufacturing, pipeline maintenance, and fluid power applications. Its compact dimensions (310 mm length, 127 mm width, and 137 mm height) and relatively light weight (2.5 kg) facilitate portability and convenient storage.
This pump features a two-speed operation with automatic switching for versatile use. It has a 12.7 mm cylinder stroke and displacement per stroke of 3.62 cm³ on the first stage and 0.9 cm³ on the second. The pump includes an internal pressure relief valve to prevent overload and ensure safety.
Its lightweight glass-filled nylon reservoir and nylon encapsulated aluminum base provide corrosion resistance. The lower handle design minimizes operator fatigue during extended use. Engineered for use with hydraulic cylinders, pullers, and flange spreaders.
Provides easy operation without requiring a power source. Compact construction allows easy carrying and storage. Equipped with a non-conductive fiber-glass handle for operator safety. Set contains 1 Pc RS PRO Hydraulic Hand Pump with model code 234-9578.
Explore more Hydraulic Pumps and fluid power tools on EnvMart to suit various industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 700 bar.
This pump has a usable oil capacity of 0.327 liters.
The dimensions of this unit are 310 mm in length, 127 mm in width, and 137 mm in height.
The cylinder stroke length is 12.7 mm.
The gross weight of this hydraulic hand pump is 2.5 kg.
The displacement per stroke is 3.62 cm³ for the first stage and 0.9 cm³ for the second stage.
This model is engineered for use with hydraulic cylinders, pullers, and flange spreaders, suitable for industrial and construction tasks.
It includes an internal pressure relief valve to prevent overload and ensure safety during operation.
The operating pressure for the first stage is 13 bar, while the second stage operates at 700 bar.
It features a glass-filled nylon reservoir and a nylon encapsulated aluminum base for corrosion resistance.
This model complies with CE, EN 809 (1998+A1:2009), EN ISO 12100:2010, and UKCA standards.
Yes, this hydraulic hand pump is designed for easy operation without requiring a power source, making it versatile for various tasks.
