TDK-Lambda AC/DC Power Adapter 10 Pin DC Jack 300W 24V DC Output 12.5A DTM-300PW-240-D2

Free Delivery in India | Lowest Global Shipping Charges

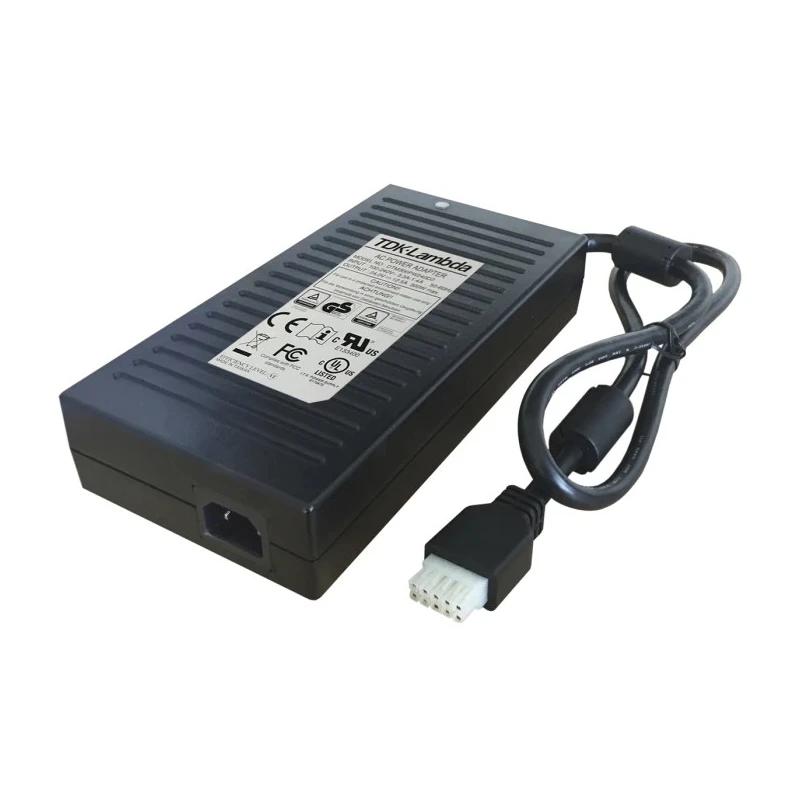

TDK-Lambda AC/DC Power Adapter 10 Pin DC Jack 300W 24V DC Output 12.5A DTM-300PW-240-D2

Name: TDK-Lambda AC/DC Power Adapter 10 Pin DC Jack 300W 24V DC Output 12.5A DTM-300PW-240-D2
Brand: TDK-Lambda
SKU: 203253



Category AC/DC Adapters Brand TDK-Lambda Condition New

Specifications

Country of Origin	India
Brand	TDK-Lambda
Power	300W
Efficiency	88%
Length	222mm
Model	DTM-300PW-240-D2
Depth	45mm
Cable Length	800mm
Width	112mm
Series	DTM300-D
Maximum Operating Temperature	60°C
Sub Type	Power Adapter
Load Regulation	±5 %
Minimum Operating Temperature	-30°C
Plug Type	10 Pin
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	24V dc
Minimum Input Voltage	90V ac
Output Connector Type	DC Jack
Input Connector Type	IEC 320-C14
Adapter Current	12.5A
Energy Efficiency Level	VI

Key Features

Ten pin DC Jack connector ensures reliable output connection.
Supports wide input voltage range from 90V to 264V AC.
Convection cooled with rugged vent-free enclosure for durability.
Meets medical and ITE safety approvals with Class I and II input.
Efficiency level VI certified with typical 88% efficiency for energy savings.
Operating temperature range from -30°C to 60°C with linear derating.
Overvoltage and overcurrent protections for safe operation.
Cable length of 800mm for flexible positioning in installations.

Product Description

TDK-Lambda DTM-300PW-240-D2 is a high-performance AC/DC power adapter delivering 300W power at 24V DC output with 12.5A current capability. Designed for industrial and medical applications, it supports a wide input voltage range of 90V to 264V AC and operates efficiently in ambient temperatures from -30°C to 60°C, with linear load derating beyond 40°C.

This AC/DC adapter features a robust vent-free enclosure that enables convection cooling, making it reliable for continuous operation in critical environments. It uses a 10-pin Molex Mini-Fit® DC jack output connector and a standard IEC 320-C14 input connector, facilitating easy integration in electronic systems.

The DTM300-D series complies with medical and ITE safety standards including CE, EN 60601-1, IEC 60601-1, and UL 60601-1, suitable for sensitive medical equipment and industrial test and measurement devices. It is approved for Class I and Class II inputs and meets Level VI energy efficiency requirements with an average efficiency of 88%, ensuring minimal energy loss and reduced heat generation.

Overvoltage and overcurrent protections are incorporated to safeguard connected equipment. The adapter's compact dimensions of 222mm length, 112mm width, and 45mm depth allow installation in constrained spaces while providing robust performance.

Ten pin DC Jack connector ensures reliable output connection. Supports wide input voltage range from 90V to 264V AC. Convection cooled with rugged vent-free enclosure for durability. Meets medical and ITE safety approvals with Class I and II input.

Efficiency level VI certified with typical 88% efficiency for energy savings. Operating temperature range from -30°C to 60°C with linear derating. Overvoltage and overcurrent protections for safe operation. Cable length of 800mm for flexible positioning in installations.

This power adapter is ideal for industrial, medical, communications, broadcasting, and laboratory equipment applications where reliable and efficient 24V DC power supply is required. Browse more AC/DC Adapters and TDK-Lambda products on EnvMart for professional electronic power solutions.
