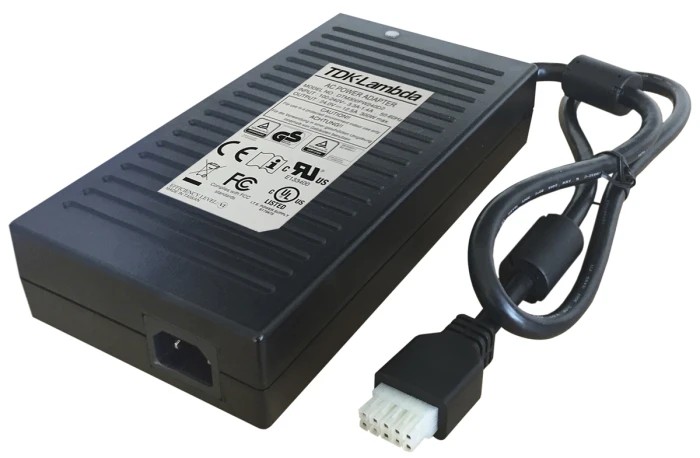

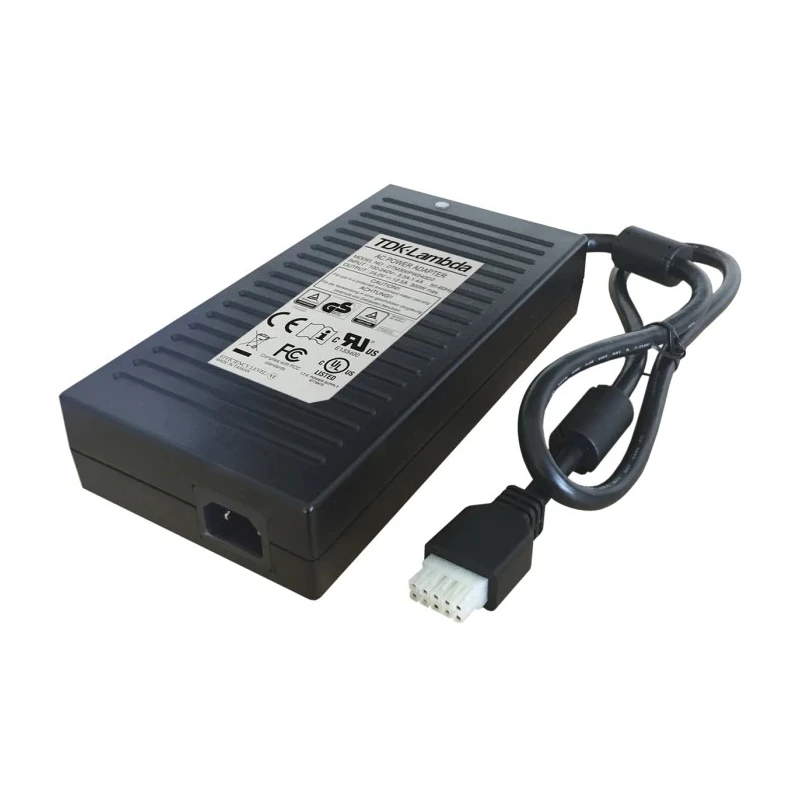

TDK-Lambda AC/DC Power Adapter 10 Pin, 300W, 24V DC Output, 12.5A, IEC 320-C14 Input, Model DTM-300PW-240-D1

TDK-Lambda DTM-300PW-240-D1 is a high-performance AC/DC power adapter designed for medical, industrial, and information technology equipment. It provides a reliable 24V DC output at 12.5A with a maximum power of 300W.

This power adapter complies with medical equipment standards including CE, EN 60601-1, IEC 60601-1, and UL 60601-1 approvals, making it suitable for B & BF rated devices. The unit supports Class I and Class II inputs and is approved for medical and ITE applications.

Its convection-cooled rugged enclosure requires no fans, enhancing operational reliability in demanding environments. The adapter accepts a wide input range from 90 to 264V AC and maintains an efficiency of 88%, meeting DoE Level VI energy efficiency standards.

The DTM300-D series’ output is delivered through a 10-pin Molex Mini-Fit® connector with a DC jack type output connector. It features over-voltage and over-current protection, ensuring safe operation even in fault conditions. The operating temperature range extends from -30°C to +60°C with derating applied progressively above 40°C.

Measurements of 222mm length, 112mm width, and 45mm depth provide a compact footprint for integration into medical, test and measurement, communications, and broadcasting equipment where power efficiency and reliability are critical.

Typical industrial use cases include medical device Power Supplies, laboratory instrumentation, telecom equipment, and commercial broadcasting systems. Suitable for use in environments demanding rugged, reliable power conversion.

Medical and ITE approved power adapter suitable for Class I and Class II equipment. Convection cooled rugged vent-free enclosure for reliable operation. Wide input voltage range from 90V to 264V AC ensures compatibility.

High efficiency power supply with 88% efficiency and DoE Level VI compliance. Features built-in over-voltage and over-current protection for safety. Standard IEC 320-C14 input connector with 10-pin Molex Mini-Fit® DC output connector.

Operating temperature range from -30°C to 60°C with linear load derating above 40°C. Compact dimensions of 222mm length, 112mm width, and 45mm depth enable easy integration. Output cable length is 800mm suitable for various installations.
