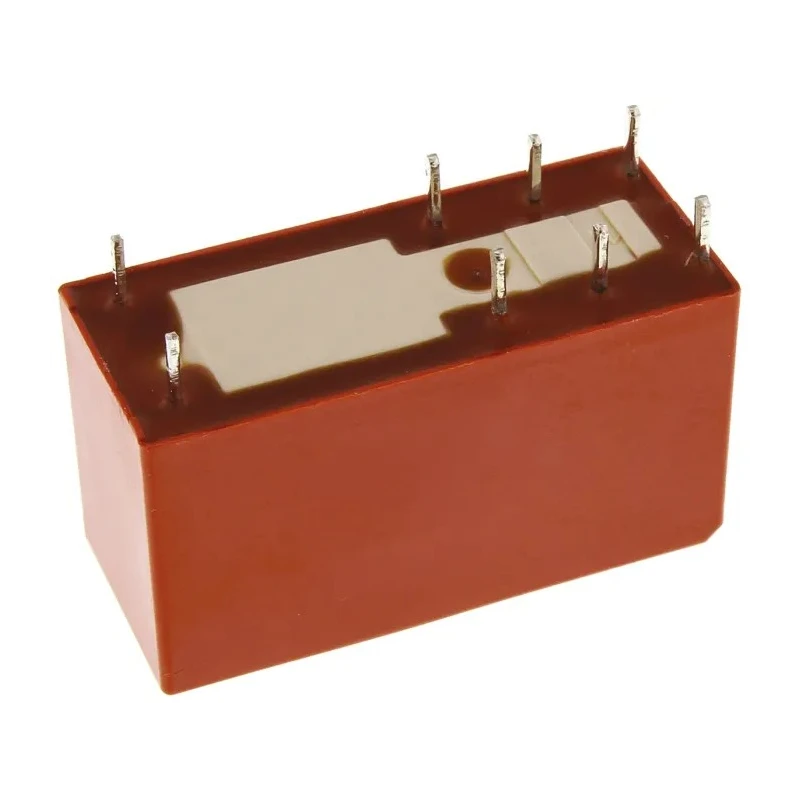

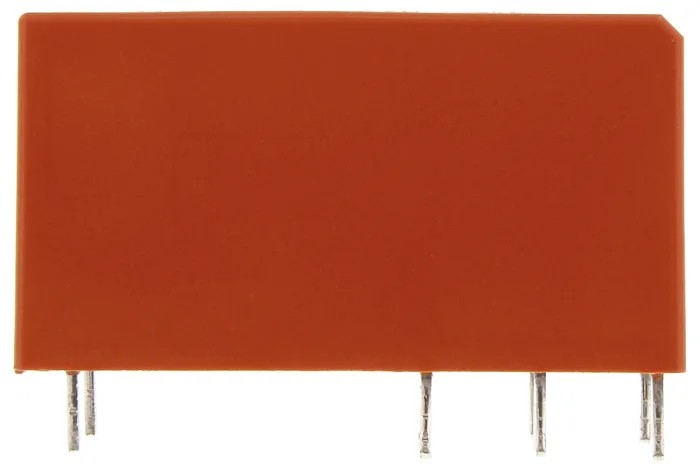

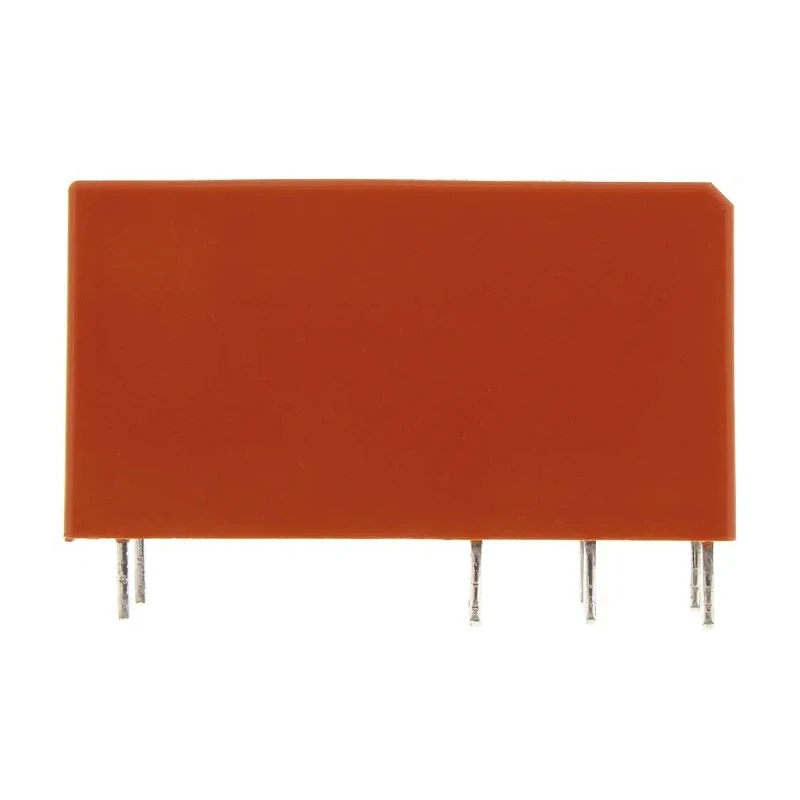

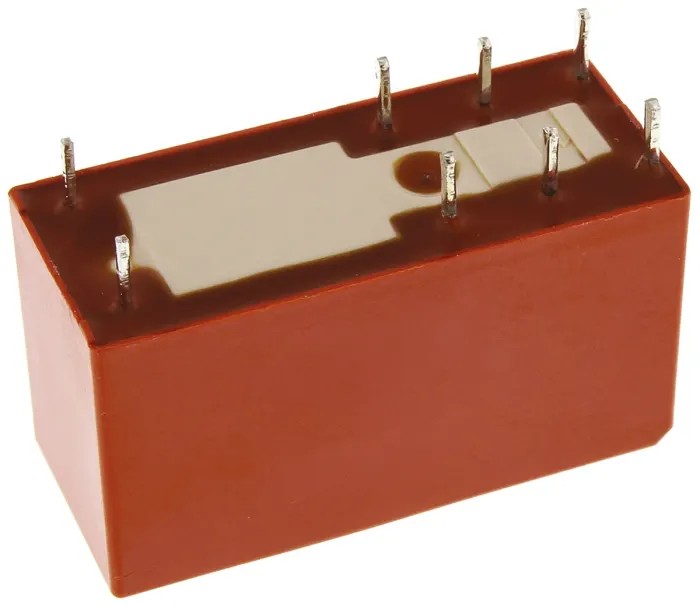

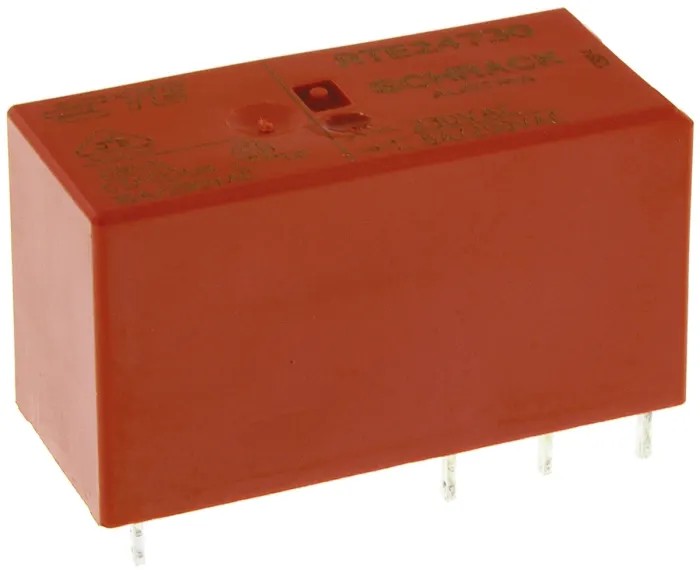

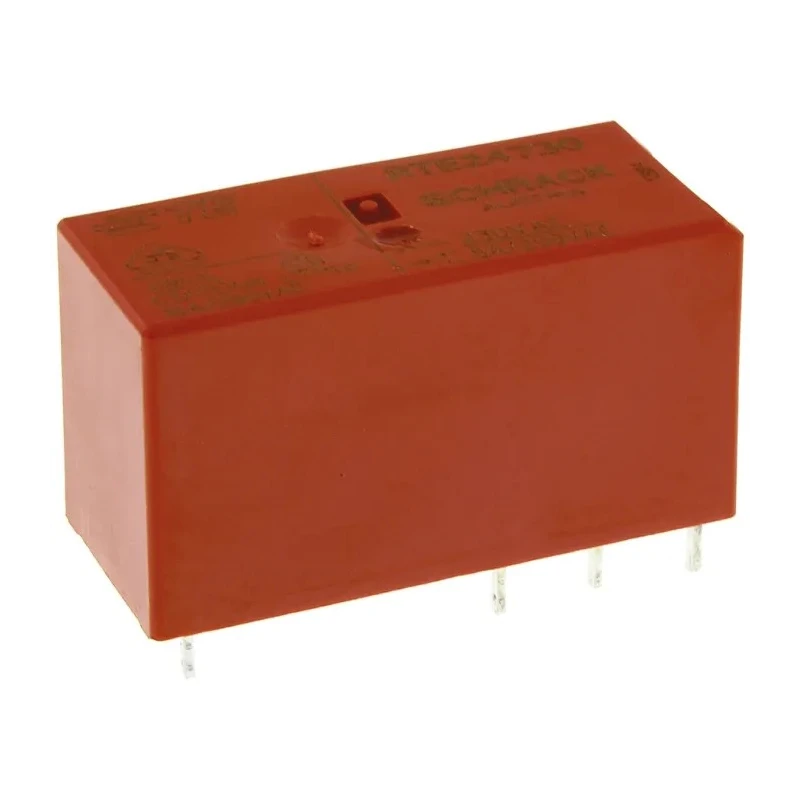

TE Connectivity PCB Non-Latching Relay 230V AC Coil 8A Switching Current DPDT RTE24730

TE Connectivity RTE24730 is a PCB Non-Latching Relay designed with a coil voltage of 230V AC and a switching current capacity of 8A. This DPDT (Double Pole Double Throw) relay ensures reliable switching in industrial and commercial electrical applications, including automation, interface, security lighting, and heating systems.

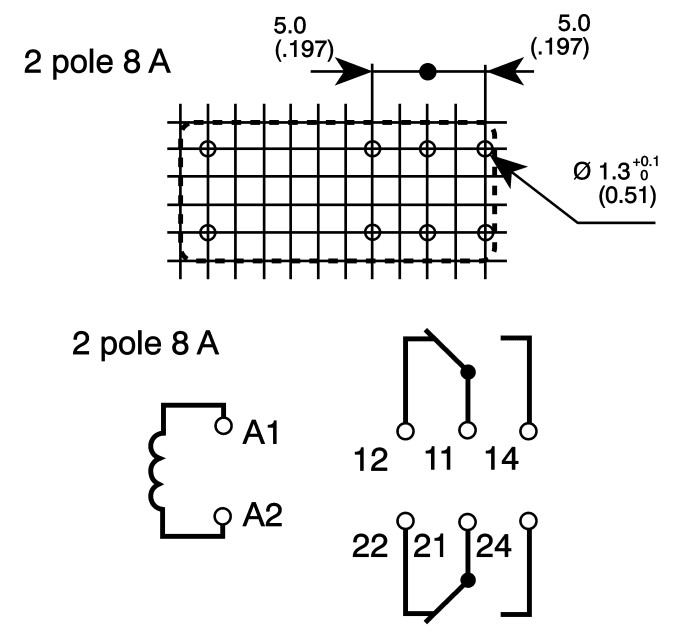

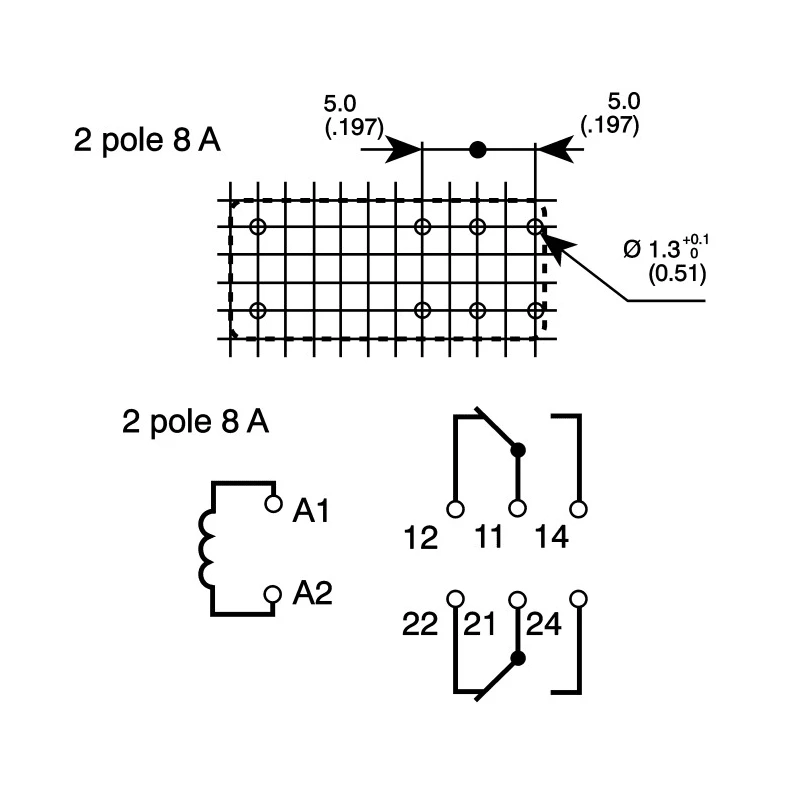

The relay belongs to the RT2 series and features a solder terminal type with 5mm pinning, suitable for through-hole mounting on PCBs. The coil resistance is precisely 32.5kΩ, enabling efficient energy consumption with a coil power rating of 0.74VA. It supports an AC switching voltage up to 400V and switching power capacity of 2kVA.

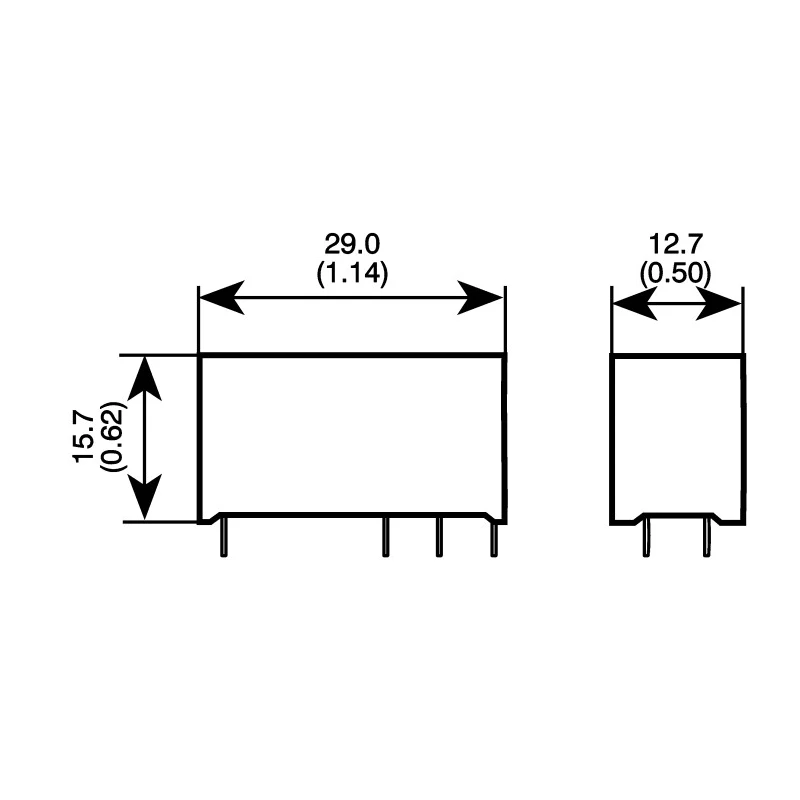

Constructed with silver nickel alloy contacts, the RTE24730 relay assures durability and consistent electrical performance. It operates effectively within a temperature range from -40°C to 70°C and has compact dimensions (length 29mm, width 12.7mm, and height 15.7mm), making it suitable for space-constrained electronic circuitry.

This product meets recognized international standards with approvals such as VDE and cULus, ensuring compliance with safety and quality for industrial use. It is manufactured in Austria and classified as new condition for reliable deployment.

Designed for PCB mounting with solder terminal type. Operates at coil voltage of 230V AC with coil resistance of 32.5kΩ. Supports switching AC voltage up to 400V AC and switching power of 2kVA. Features silver nickel alloy contacts for reliable performance.

Operating temperature range from -40°C to 70°C. Compact dimensions: length 29mm, width 12.7mm, height 15.7mm. Complies with VDE and cULus approvals for safety and quality.

This TE Connectivity power relay is suitable for industrial, laboratory, automation, and electrical equipment applications. Explore the full range of PCB relays and Power Relays on EnvMart for reliable switching solutions.
