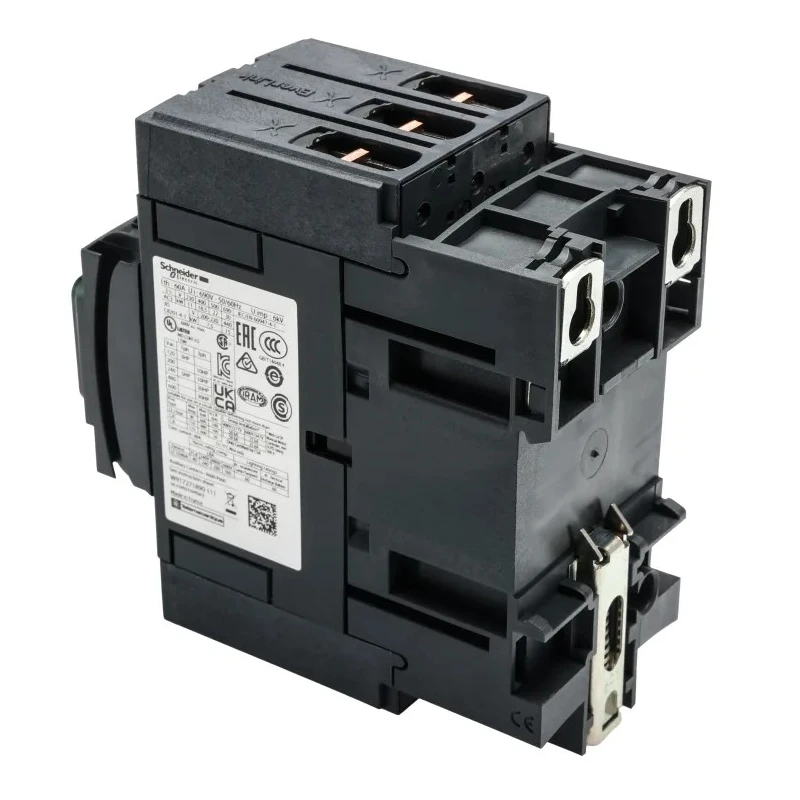

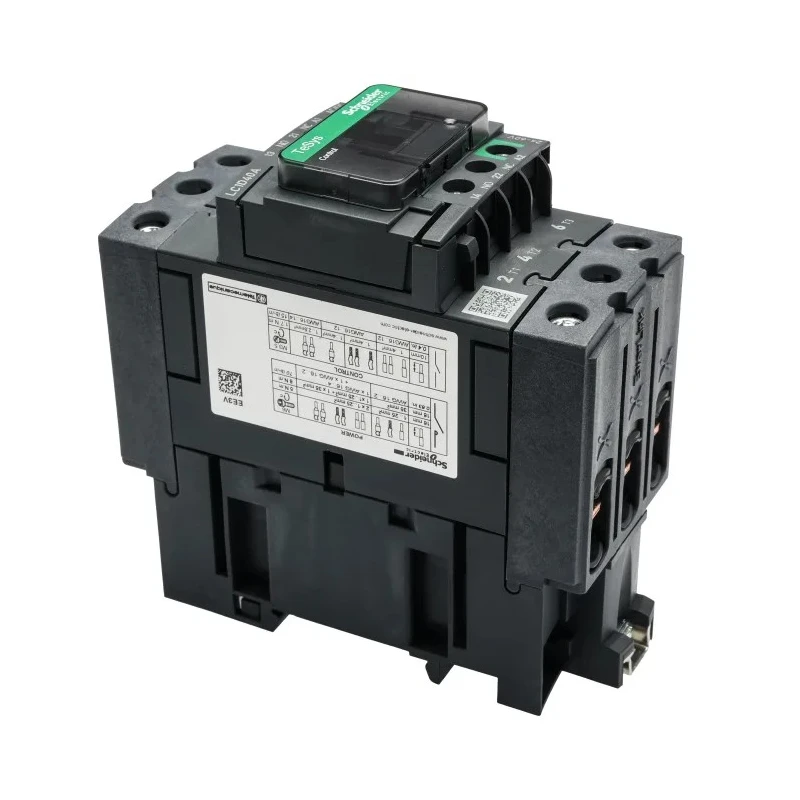

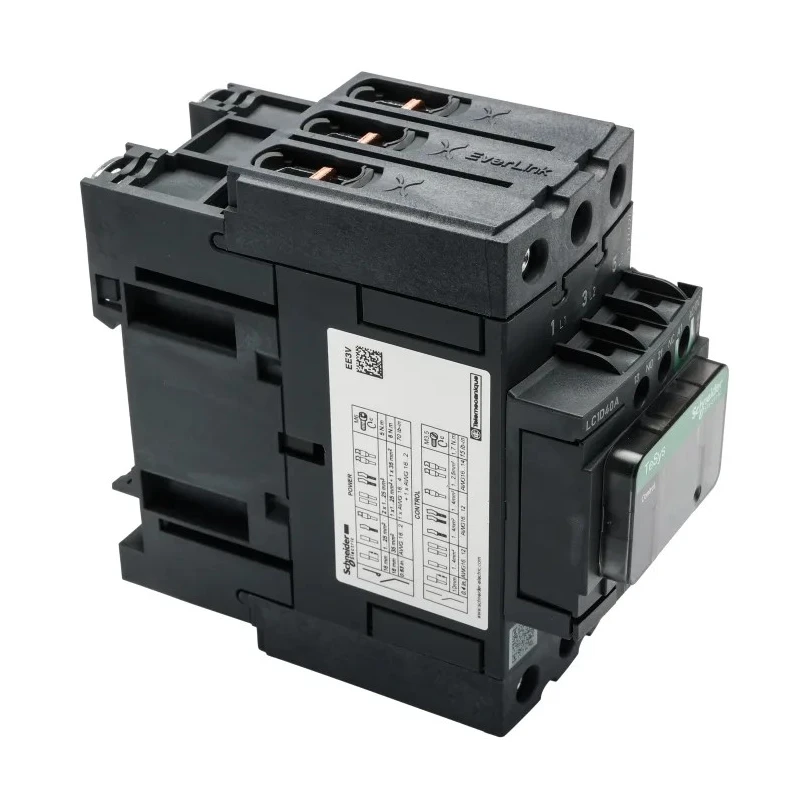

Schneider Electric TeSyS D Contactor, 3-Pole, 40 A, 18.5 kW, 24V AC/DC Coil, 3 NO, 690V AC LC1D40ABNE

Schneider Electric LC1D40ABNE TeSyS D Contactor is a high-performance electrical switching device designed for reliable motor and load control in industrial and commercial applications. Operating with a 24V AC/DC coil voltage, it offers versatility across various control system configurations.

With a 3-pole construction and a contact current rating of 40A, this contactor efficiently manages three-phase motors and other resistive loads up to 18.5 kW power rating. The device operates reliably within a temperature range from -40°C to 60°C, making it suitable for demanding environments.

The LC1D40ABNE includes three normally open contacts (3 NO) to provide effective switching functionality. It also integrates two auxiliary contacts - one normally open (NO) and one normally closed (NC) - to support additional control circuit needs. The screw-type terminals ensure strong and safe wiring connections, while the DIN rail mounting facilitates installation and maintenance in electrical control panels.

Dimensionally compact at 55 mm length, 120 mm width, and 122 mm depth, this contactor supports space-efficient panel design. Schneider Electric’s adherence to international standards such as UL, CCC, CSA, EAC, IEC, and RoHS assures product quality and regulatory compliance.

This contactor is widely used in motor control across industrial automation, HVAC load control systems, agricultural machinery, and commercial lighting controls. Its design supports energy efficiency and operational safety, including a built-in peak limiting feature for enhanced circuit protection during transient events.

The contactor features a 40A current rating for robust control capability. Designed for continuous operation at a maximum temperature of 60°C. Coils compatible with both AC and DC voltages for flexible use. 3 NO contact configuration handles effective load management.

Built-in peak limiting enhances circuit safety during operation. Supports motor control and resistive load applications. Easy DIN rail mounting optimizes installation and maintenance. Meets UL, CCC, CSA, EAC, IEC, and RoHS standards for wide compliance.

Compact size allows for efficient panel space usage. Suitable for industrial automation, HVAC, agriculture, and commercial lighting. Explore the full range of Schneider Electric automation and control gear products on EnvMart for trusted industrial solutions.
