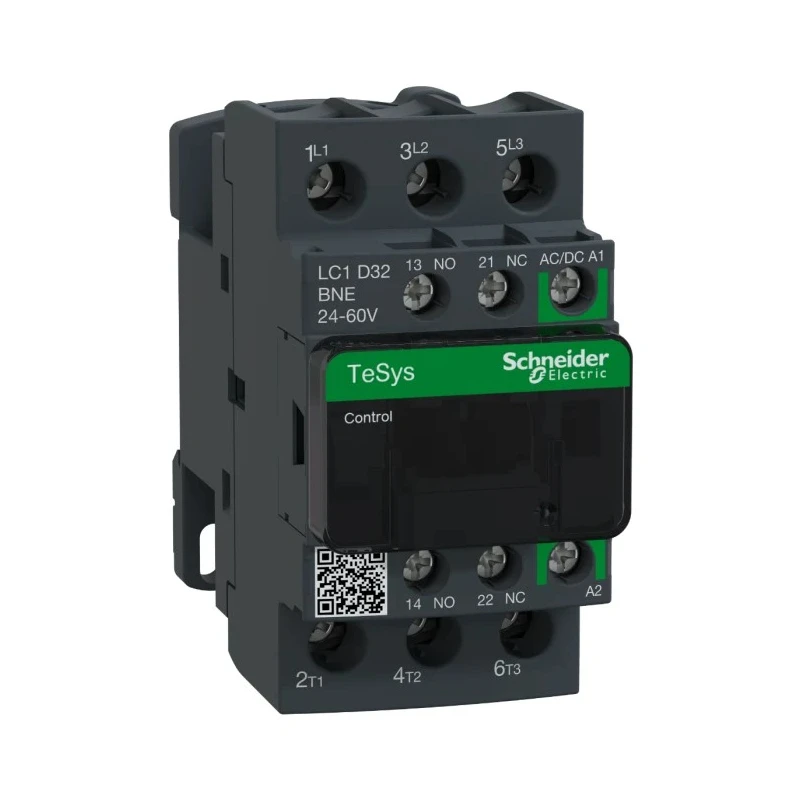

Schneider Electric TeSyS D Contactor 24V AC/DC Coil 3-Pole 32A 15kW 60V 3 NO 690V AC LC1D32BNE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D32BNE |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Equipped with a 24V AC/DC coil for versatile control.
- 3-pole configuration with 3 Normally Open contacts.
- Supports up to 690V AC contact voltage and 15kW power rating.
- Includes 1 Normally Open and 1 Normally Closed auxiliary contacts.
- Screw terminals for secure and finger-safe IP20 rated connections.
- DIN rail mounting for easy installation in control panels.
- Wide operating temperature range from -25°C to 60°C.
Product Description
Schneider Electric LC1D32BNE TeSyS D Contactor is a highly reliable component designed for motor control and resistive load applications. It operates with a 24V AC/DC coil voltage and features a 3-pole configuration with 3 Normally Open contacts suitable for switching loads up to 690V AC and 32A. The contactor supports a power rating of 15kW and includes auxiliary contacts (1 Normally Open and 1 Normally Closed) that enhance switching capabilities.
The device is mounted on DIN rails and uses screw terminals that are IP20 finger-safe, with both North American and international terminal markings for ease of installation. It has a compact design with dimensions of 45mm in length, 92mm in width, and 85mm in depth. Operating temperature ranges from -25°C to a maximum of 60°C, making it suitable for diverse industrial environments.
This product complies with major international standards including CCC, CSA, EAC, IEC, RoHS, and UL, ensuring safety and regulatory adherence. The TeSyS D range is known for its long mechanical and electrical life and flexibility in control systems integration, often used for motor starters and various control duties in industrial, automation, and electrical applications.
Key features include built-in auxiliary contacts, a wide control voltage band, low permanent consumption coils, and accessories for enhanced functionality like mechanical latching blocks and time delay blocks. The contactor fits applications including squirrel cage motors, lifts, conveyors, compressors, and pumps, supporting both AC1 and AC3 utilization categories.
Designed for motor control and resistive loads. 24V AC/DC coil voltage with a wide control voltage band. IP20 rated screw connections for safety and reliability. Compliance with international certifications (CCC, CSA, EAC, IEC, RoHS, UL).
Flexible mounting options with DIN rail compatibility. Wide operating temperature range from -25°C to 60°C. Compact footprint aids integration in control panels. Auxiliary contacts provide added switching capability. Suitable for industrial, manufacturing, and HVAC automation use cases.
Schneider Electric TeSyS D Contactor LC1D32BNE is ideal for industrial automation systems where reliable switching and motor control are critical. Discover more automation and control gear from leading brands at EnvMart.
