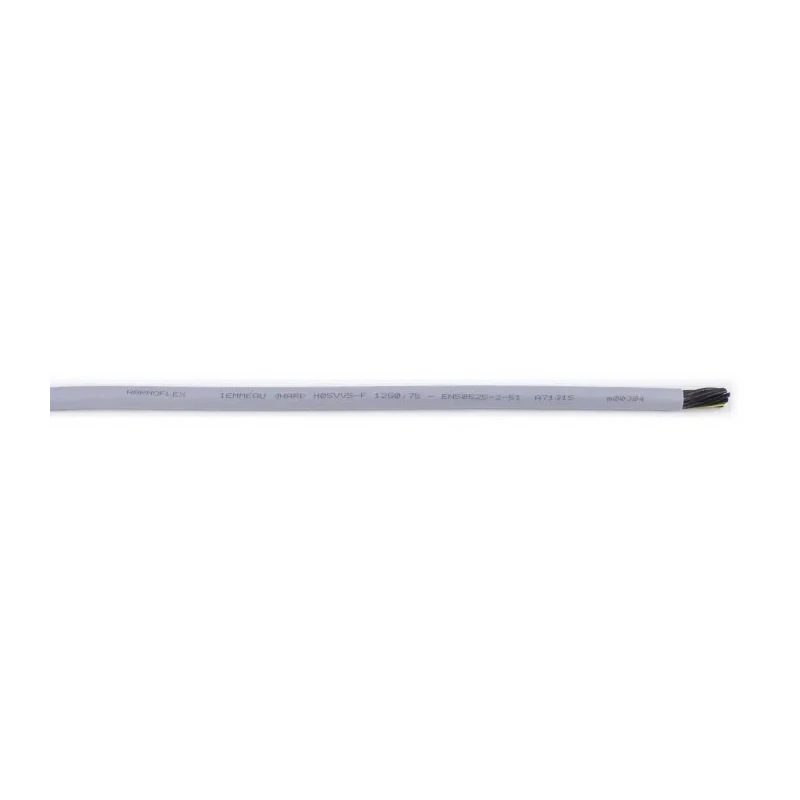

AXINDUS HARMOFLEX Control Cable, 12 Cores, 0.75mm² 18 AWG, Unscreened, 100 m Length, Grey Polyvinyl Chloride Sheath H1120075
Specifications
| Country of Origin | Turkey |
|---|---|
| Voltage | 300, 500V |
| Brand | AXINDUS |
| Model | H1120075 |
| Cable Length | 100m |
| Series | HARMOFLEX |
| Outside diameter | 13.7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 12 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | Euroclass Eca |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Unscreened |
| Cable CSA | 0.75mm² |
Key Features
- The cable consists of 12 cores with bare copper conductors ensuring high conductivity.
- It features a grey Polyvinyl Chloride (PVC) sheath that is flame retardant.
- The cable has an outside diameter of 13.7 mm and a length of 100 meters.
- Rated for 300V and 500V operation with a testing voltage of 2000V.
- Operating temperature ranges from -40°C to +70°C suitable for harsh environments.
- The cable is unscreened and flame retardant compliant to NF C 32-070/C2 and IEC 60332-1 standards.
- Designed with a minimum bending radius of 5 times the diameter for fixed installations.
- Manufactured in Turkey with Euroclass Eca fire behavior classification.
Product Description
AXINDUS H1120075 HARMOFLEX Control Cable is a multi-core unscreened control cable with 12 cores, each having a conductor cross-section of 0.75mm² (18 AWG). It is constructed with bare copper stranded conductors, insulated with grey PVC type TI2, and sheathed with grey PVC type TM5, providing durability and flame retardant protection. The cable is designed to operate at rated voltages of 300V and 500V and withstands a test voltage of up to 2000V.
This control cable is suitable for electrical, industrial, automation, and instrumentation applications requiring reliable signal and control transmissions in harsh environments. It supports a wide operating temperature range of -40°C to +70°C, making it ideal for indoor fixed installations where flexibility is less demanded.
The outside diameter of 13.7 mm with a minimum bending radius of 5x diameter ensures ease of installation without damage. The cable's flame retardant properties meet stringent safety norms including NF C 32-070/C2 and IEC 60332-1, enhancing workplace safety in case of fire.
Euroclass Eca rating certifies the cable’s reduced fire and smoke emissions during combustion. The grey PVC sheath provides robust mechanical protection and resistance to environmental factors.
Manufactured in Turkey to consistent quality standards, this cable is ideal for industrial process control, automation systems, and instrumentation wiring in commercial and industrial sectors.
The cable has 12 bare copper conductors for effective signal transmission. The polymer PVC sheath ensures flame retardant and mechanical durability. Rated for 300/500V and withstand test voltage of 2000V. Operating temperature range from -40°C to +70°C.
Complies with Euroclass Eca, NF C 32-070/C2, and IEC 60332-1 fire standards. Minimum bending radius of 5 times the cable diameter for fixed installation. Ideal for industrial, automation, and electrical control applications.
The package consists of one reel containing 100 meters of the AXINDUS H1120075 control cable. This product is new and sourced from Turkey. It is recommended for use in industrial and commercial electrical wiring, control circuits, and instrumentation systems.
Explore more Control Cables and related electrical components at EnvMart to fulfill your industrial wiring needs efficiently and safely.
