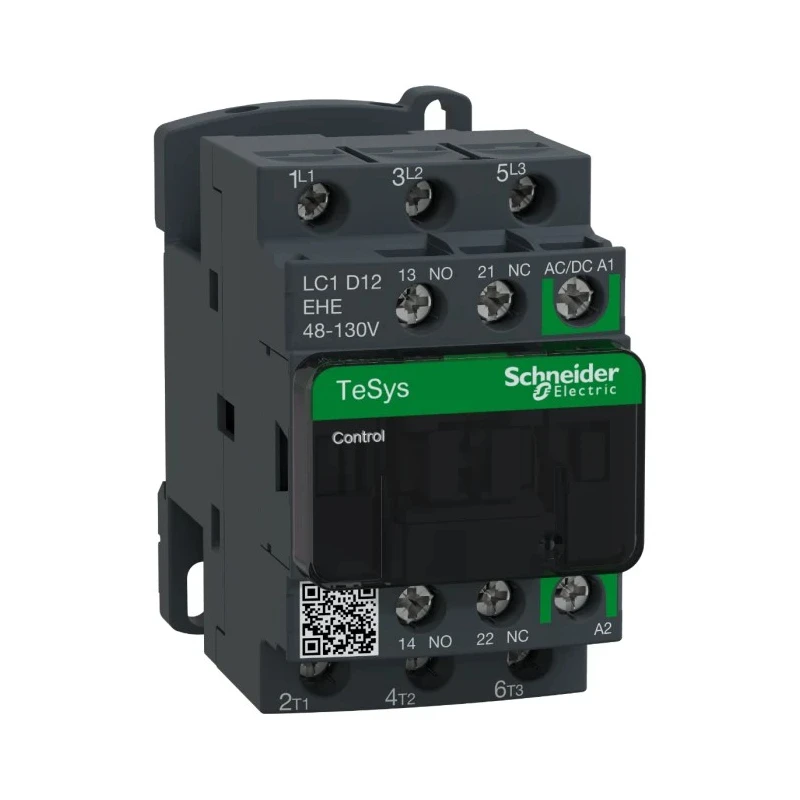

Schneider Electric TeSyS D Contactor 3-Pole 12A 5.5 kW, 110V AC/DC Coil, 130V Control Circuit Voltage LC1D12EHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D12EHE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Equipped with 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO, 1 NC).
- DIN rail mountable with screw terminals providing IP20 finger-safe protection.
- Wide operating temperature range from -25°C to 60°C for robust industrial use.
- Complies with international standards including UL, RoHS, IEC, EAC, CSA, and CCC.
- Features low coil consumption and bidirectional peak limiting diode for coil protection.
- Suitable for control systems, motor starters, and applications requiring reliable switching.
Product Description
Schneider Electric LC1D12EHE TeSyS D contactor is a high reliability 3-pole contactor designed for industrial motor control and resistive load operations. This model features a 110V AC/DC coil voltage and a 130V control circuit voltage, making it suitable for a wide range of automation and control applications. The contactor is rated for a contact current of 12 A and a power rating of 5.5 kW, ensuring robust performance.
The device includes three normally open (NO) main contacts and two auxiliary contacts configured as 1 NO and 1 NC, offering additional switching capabilities for enhanced control. Screw terminals ensure secure and safe wiring with IP20 finger-safe protection, compliant with both North American and international terminal marking standards.
Compact and designed for easy installation, the contactor mounts on DIN rails or panels securely, with overall dimensions of 86mm in width, 45mm in length, and 77mm in depth. It operates reliably across a temperature range from -25°C to 60°C, making it well-suited for demanding industrial environments.
Schneider Electric’s TeSyS D contactors are compliant with numerous international standards including UL, RoHS, IEC, EAC, CSA, and CCC, reflecting high quality and safety. Key features include a low coil consumption that enhances energy efficiency, along with a bidirectional peak limiting diode to protect coil integrity from voltage spikes.
These Contactors find common use in motor starters for diverse industrial, manufacturing, HVAC, and electric automation systems. The device is designed for ease of integration in control panels and supports applications involving resistive loads and motor operations requiring contact switching with a 3-pole configuration.
Package Contents: 1 Pc Schneider Electric TeSyS D LC1D12EHE Contactor. Designed for motor control and resistive load applications. Three normally open (3 NO) poles with auxiliary contacts for flexible switching. Suitable for DIN rail or panel mounting with secure screw terminals.
IP20 rated finger-safe terminals for enhanced operator safety. Wide control voltage band and low permanent coil consumption. Compliance with UL, RoHS, IEC, EAC, CSA, and CCC standards ensures safety and reliability. Robust operation in temperature ranges from -25°C to 60°C.
Optimize your industrial control systems with the Schneider Electric TeSyS D contactor. Browse more automation and control gear products on EnvMart to build tailored and reliable electrical solutions.
