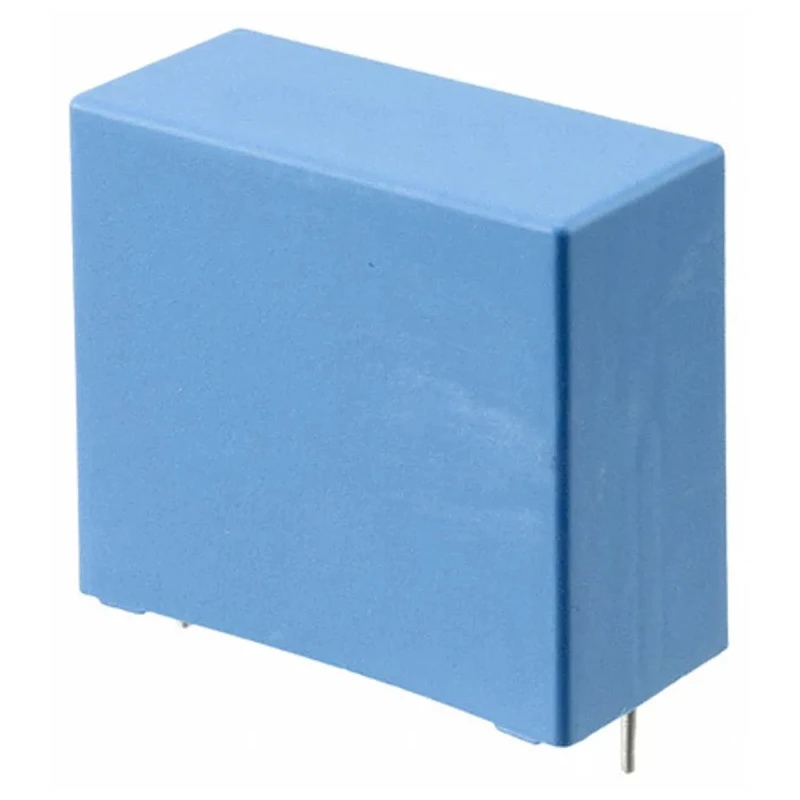

KEMET PHE450 Polypropylene Capacitor, 100 nF ±5% 2 kV DC 180 V AC Radial Through Hole PHE450

The KEMET PHE450 polypropylene capacitor model PHE450SD6100JR06L2 is a metallized film capacitor designed for demanding electronic applications requiring high current stress tolerance and reliability. This capacitor offers a capacitance of 100 nF with a tight tolerance of ±5%, rated for 2 kV DC and 180 V AC voltage, making it ideal for pulse and snubber circuits in switch mode power supplies and deflection circuits in televisions.

Encapsulated in a self-extinguishing resin meeting UL94 V-0 standards, the capacitor ensures safety and durability in operation up to 105°C, with a minimum operating temperature of -55°C. The radial through hole mount design features a lead pitch of 22.5 mm and lead length of 6 mm, with a lead diameter of 0.8 mm. Its compact dimensions of 23 mm height, 26 mm length, and 13.5 mm width allow for versatile PCB integration.

The capacitor’s dissipation factor of just 0.0003% ensures minimal energy loss and high efficiency in circuits. Packaging in tape and reel format facilitates automated assembly processes. This product complies with RoHS standards, confirming its environmental compliance.

Capacitance: 100 nF ±5%. Rated DC voltage: 2 kV. Rated AC voltage: 180 V. Operating temperature range: -55°C to 105°C. Radial through hole mounting with 22.5 mm lead pitch. Encapsulated in UL94 V-0 compliant self-extinguishing resin.

Dissipation factor: 0.0003%. Compact dimensions: 23 mm H × 26 mm L × 13.5 mm W. Packaging: Tape and reel.

This capacitor is well-suited for industrial electronic equipment, power supplies, telecommunications, and consumer electronics requiring reliable, high-voltage Film Capacitors. It provides excellent endurance in pulse and snubber roles, ensuring improved circuit protection and performance.
